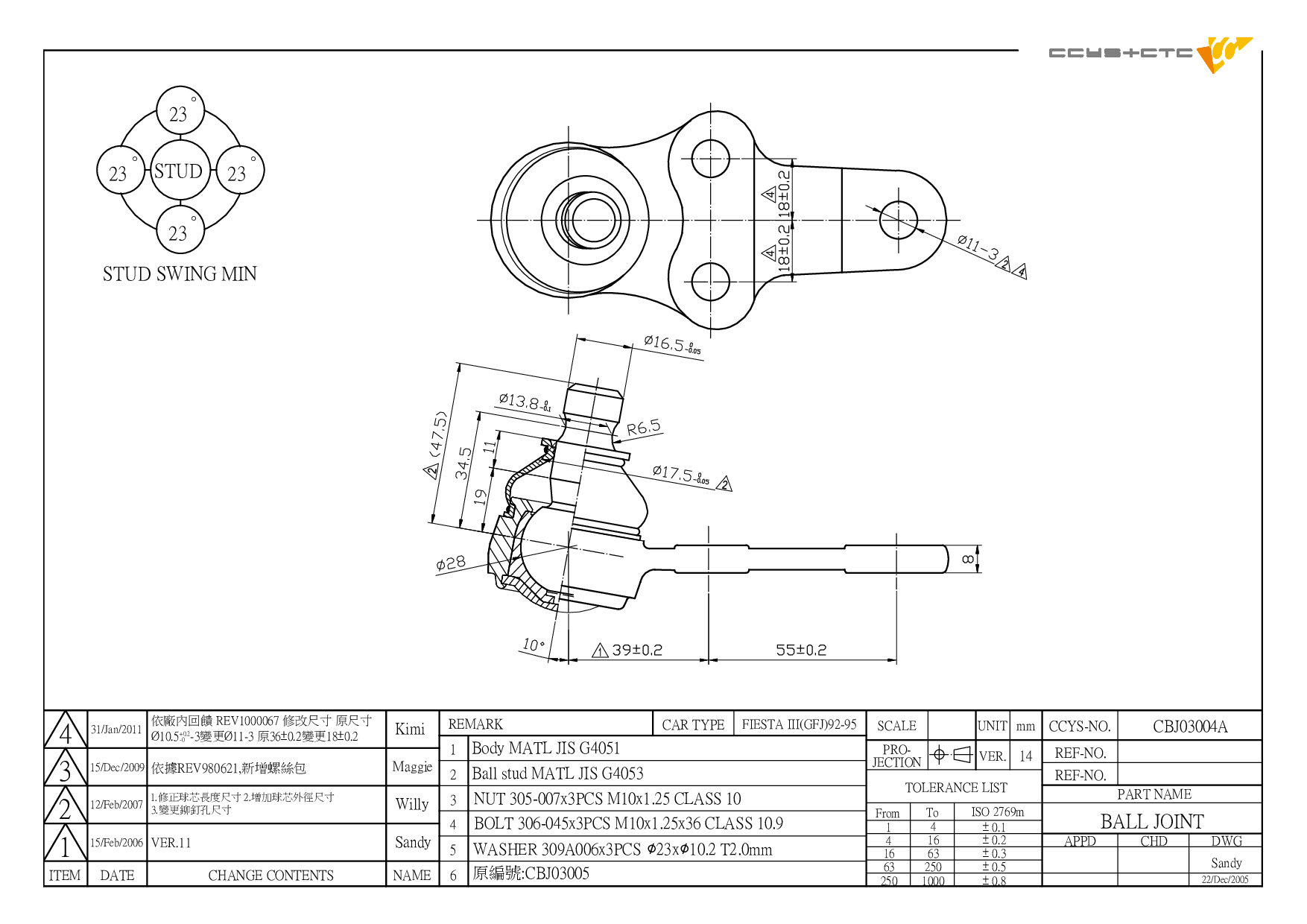

CBJ03004A
| Designation | Ball Joint |
| Position | FRONT LOWER LH/ RH |
| OE No. | 1030025 / 1047797 / 1679398 / 94FB-3B376-AA / 94FB-3B376-AB / ME96FB-3395-AA |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0.62 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03021 | FRONT LOWER ARM REAR | 1035929 89FB-3A262-AC 91AB-3063-AA 91AB-3A262-AA |
|
 |
CBH03022 | FRONT LOWER ARM INNER | 1000445 1829508 89FB-3063-AD ME89FB-3063-AD |
|
 |
CBH03023 | FRONT LOWER ARM INNER | ||
 |
CBJ03003A | FRONT LOWER LH/ RH | 6615742 6615743 94FB-3395-A1B 95AB-3395-A1A |
|
 |
CBJ03004A | FRONT LOWER LH/ RH | 1030025 1047797 1679398 94FB-3B376-AA 94FB-3B376-AB ME96FB-3395-AA |
|
 |
CBJ03005A | FRONT LOWER LH/ RH | 94FB-3395-A2B |
|
 |
CBJ03013A | FRONT LOWER LH/ RH | ||
 |
CRE03048 | D= 1/2"-20G, C= M14X1.5 | 1659374 4048739 6639188 6790700 89FB-3L555-BA 91FB-3L519-AA 92FB-3L519-AA XS5C-3L519-AA |
|
 |
CS-318L | FRONT LOWER LH | 6193086 6645156 91FB-3051-AA |
|
 |
CS-318R | FRONT LOWER RH | 6193085 6645154 91FB-3042-AA |
|
 |
CS-319L | FRONT LOWER LH | 7152271 7152279 94FB-3051-AB |
|
 |
CS-319R | FRONT LOWER RH | 7152269 7152276 94FB-3042-AB |
|
 |
CS-320L | FRONT LOWER LH | 7152281 |
|
 |
CS-320R | FRONT LOWER RH | 7152278 |
|
 |
CS-323L | FRONT LOWER LH | 7152272 94FB3051BA |
|
 |
CS-323R | FRONT LOWER RH | 7152270 94FB3042BA |
|
 |
CS-346L | FRONT LOWER LH | 1054985 |
|
 |
CS-346R | FRONT LOWER RH | 1054984 |
|
 |
CSL11001 | FRONT (A= 238MM) | 1661237 96FB-3B-438AB |
| Model (Year) |
|---|
|
COURIER Pickup FIESTA Box Body/MPV (F3L, F5L) | COURIER FIESTA Box Body/MPV (J5_, J3_) | COURIER FIESTA Hatchback Van (FVD) FIESTA Hatchback Van (JV_) | COURIER FIESTA III (GFJ) FIESTA IV (JA_, JB_) FIESTA V (JH_, JD_) KA (RB_) KA Van (RB) PUMA (EC_) STREET KA (RL2) |
| Model (Year) |
|---|
|
121 III (JASM, JBSM) |
