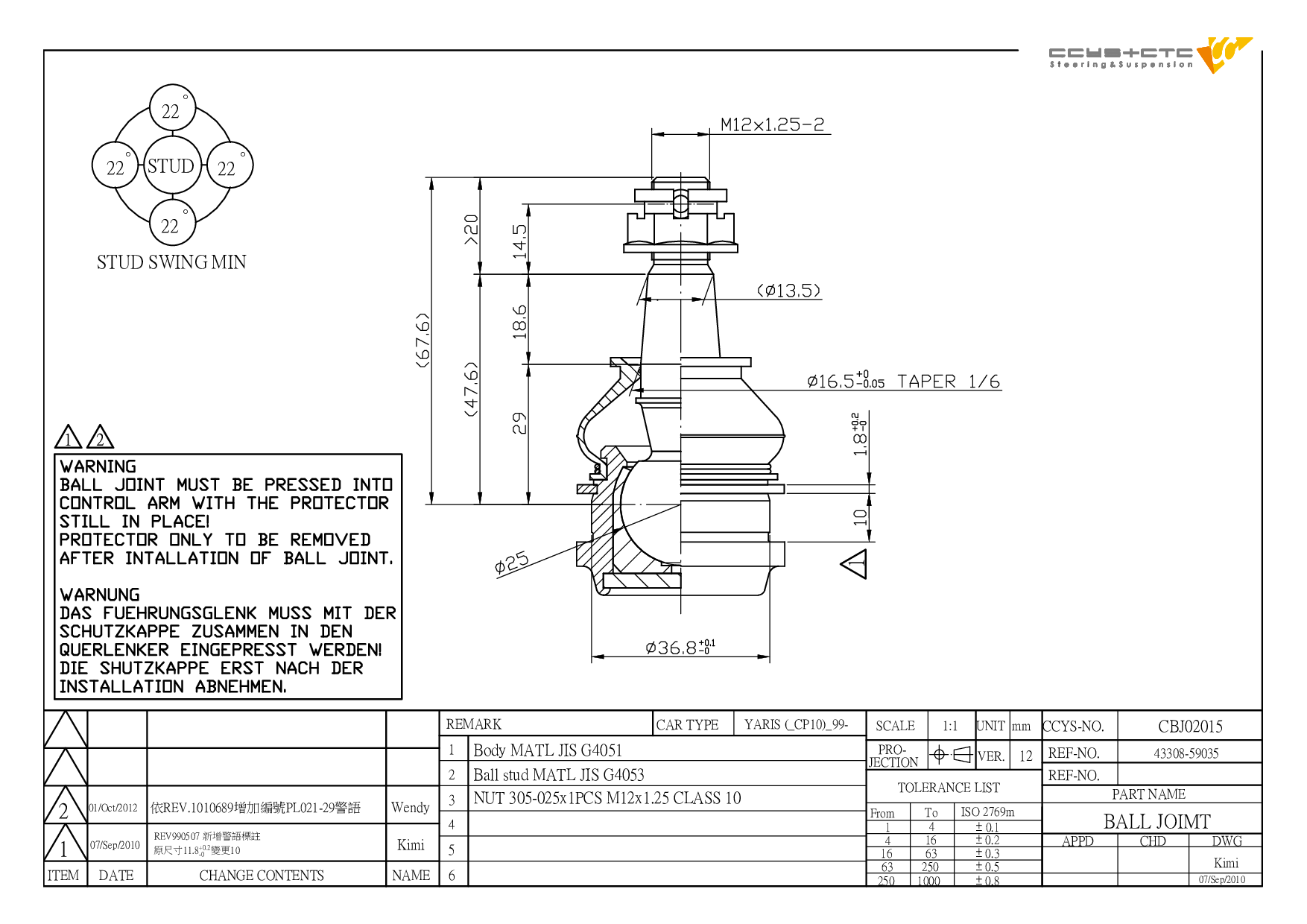

CBJ02015
| Designation | Ball Joint |
| Position | FRONT LOWER LH/ RH |
| OE No. | 43308-09010 / 43308-09070 / 43308-09071 / 43308-09080 / 43308-09081 / 43308-0H010 / 43308-19176 / 43308-59035 / 43308-59055 / 43308-59065 / 43308-59095 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0.3 kg |
PLATZ (NCP1_SCP1_) YARIS (P1) (P2) Construction year to 05.2003
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02032 | FRONT LOWER ARM REAR | 48068-09010 48068-09015 48068-09030 48068-59035 48068-59055 48069-09010 48069-09015 48069-09030 48069-59035 48069-59055 48620-60010 48620-60020 48640-60010 48640-60020 |
|
 |
CBH02050 | FRONT LOWER ARM INNER | 48654-0D030 48654-0D060 48654-52050 48654-74011 |
|
 |
CBH02080 | FRONT LOWER ARM INNER | ||
 |
CBJ02015 | FRONT LOWER LH/ RH | 43308-09010 43308-09070 43308-09071 43308-09080 43308-09081 43308-0H010 43308-19176 43308-59035 43308-59055 43308-59065 43308-59095 |
|
 |
CS-232L | FRONT LOWER LH | 48069-09010 48069-09015 48069-09030 48069-59035 |
|
 |
CS-232R | FRONT LOWER RH | 48068-09010 48068-09015 48068-09030 48068-59035 |
|
 |
CS-261L | FRONT LOWER LH | 48069-59055 |
|
 |
CS-261R | FRONT LOWER RH | 48068-59055 |
|
 |
CSL02068 | FRONT | 48817-0D010 48817-52010 48817-52011 48819-52010 48819-52020 48819-70010 5091.1 5091.10 5094.A7 6822.R9 6822.S0 6822.TV 90948-02178 90948-02179 94182-10800 |
|
 |
CTE02003L | FRONT AXLE LH (C= M12X1.25) | 45047-09040 45047-09210 45047-59025 45047-59026 45047-59035 |
|
 |
CTE02003R | FRONT AXLE RH (C= M12X1.25) | 45046-09120 45046-09470 45046-59025 45046-59026 45046-59045 45046-59065 |
| Model (Year) |
|---|
|
ECHO Saloon (_P1_) PLATZ (NCP1_, SCP1_) RAUM MPV (NCZ2_) VIOS / SOLUNA VIOS (_P4_) WILL CYPHA I (NCP7_) WiLL Vi I (NCP19_) YARIS (_P1_) | YARIS/VITZ | ECHO | VITZ/ECHO YARIS (_P9_) | YARIS/VITZ | VITZ YARIS VERSO (_P2_) | FUN CARGO | ECHO VERSO | YARIS VERSO / FUN CARGO YARIS VERSO VAN (_P2_) |
