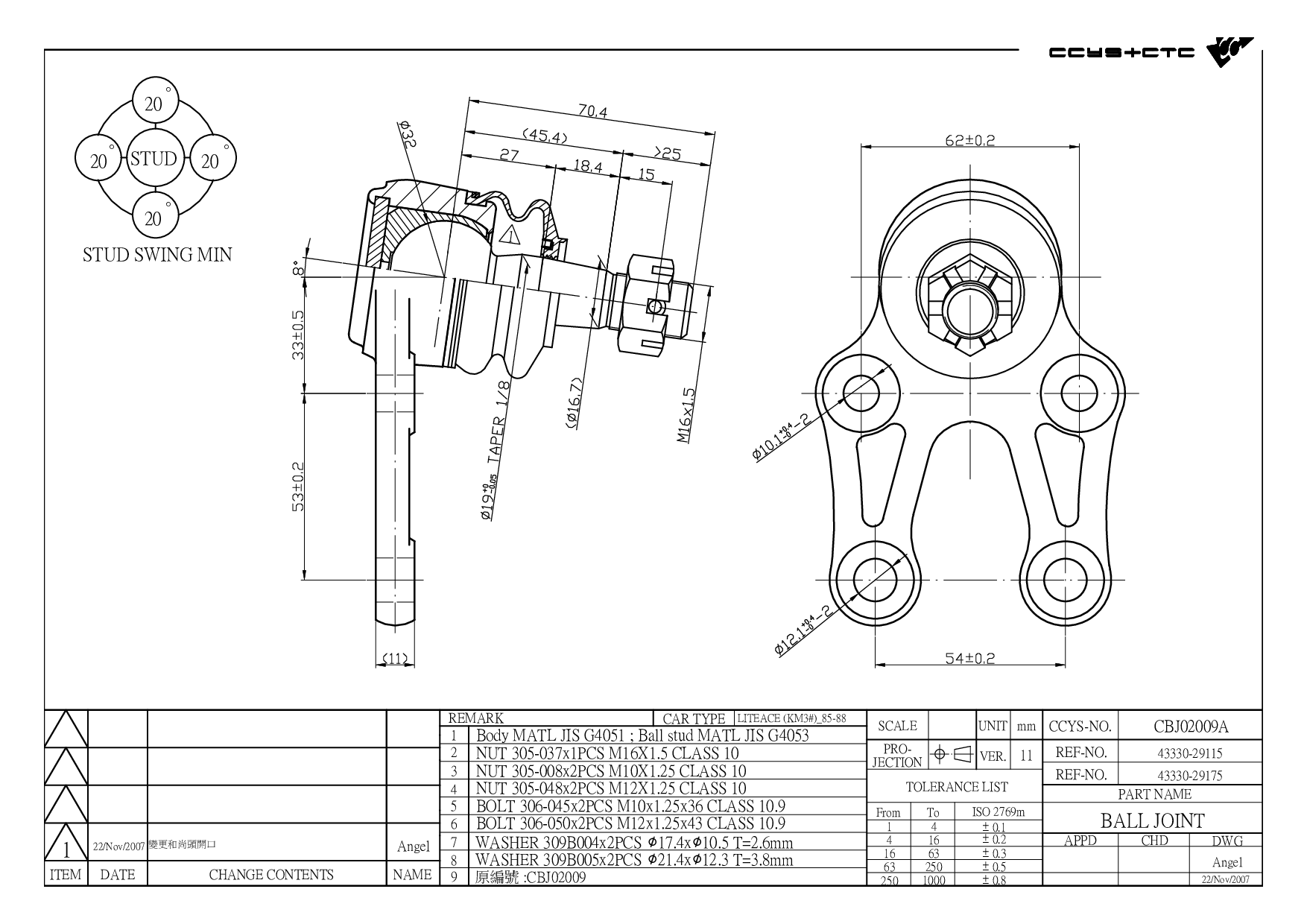

CBJ02009A
| Designation | Ball Joint |
| Position | FRONT LOWER LH/ RH |
| OE No. | 43330-0B020 / 43330-29115 / 43330-29175 / 43330-29245 / 43330-29545 / 43340-29095 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 1.11 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02002 | FRONT UPPER ARM INNER | 48635-28010 |
|
 |
CBH02003 | FRONT UPPER ARM REAR | ||
 |
CBJ02003A | FRONT UPPER LH/ RH | 43350-29035 43350-29036 43350-29075 43350-29076 43350-29085 43360-29036 43360-29055 43360-29056 |
|
 |
CBJ02009A | FRONT LOWER LH/ RH | 43330-0B020 43330-29115 43330-29175 43330-29245 43330-29545 43340-29095 |
|
 |
CRE02025 | D= M14X1.5 , C= M14X1.5 | 45503-29215 45503-29335 45503-59025 45503-59035 |
|
 |
CSL02016 | FRONT | 90101-10090 |
| Model (Year) |
|---|
|
LITEACE Bus (_M3_, _M4_) LITEACE Bus (_R2_) | MASTER ACE SURF LITEACE Van (_M2_) LITEACE Van (_M3_, _M4_) LITEACE Van (_R2__V) LITEACE Wagon (YM2_, CM2_, KM2_) MASTER ACE SURF Bus (_R2_) MODEL F (CR2_, YR2_, YR3_) | VAN | SPACE CRUISER TUV Platform/Chassis (_F6_) | KIJANG |
