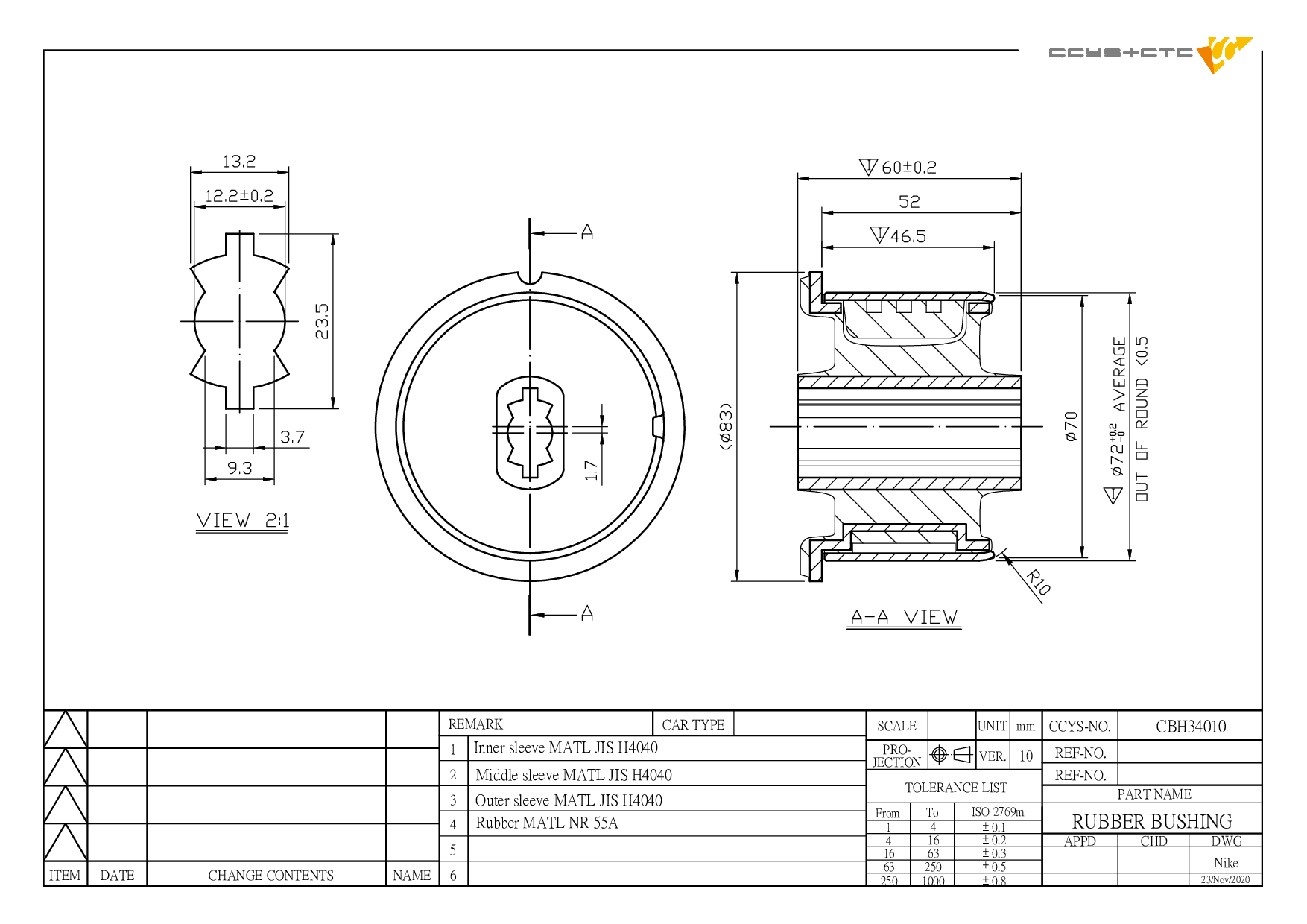

Rubber Bushing/PORSCHE/PANAMERA (970)

CBH34010

Designation Rubber Bushing
Position FRONT LOWER ARM REAR
OE No.
  • 970 341 245 01
  • 970 341 245 02
  • 970 341 245 10
Length 83.4 mm
Width 72.24 mm
Height 59.95 mm
Net Weight 0.33 kg
CTE No. DESIGNATION POSITION OE NO.
CBH19040 FRONT LOWER LH/RH
  • 4G0 407 183
  • 4G0 407 183A
  • 4G0 407 183B
  • 4H0 407 183
  • 4H0 407 183B
  • 4H0 407 183C
  • 970 341 245 21
CBH20010 FRONT UPPER ARM INNER
  • 7L0 407 077
CBH34010 FRONT LOWER ARM REAR
  • 970 341 245 01
  • 970 341 245 02
  • 970 341 245 10
CBH34011 FRONT LOWER ARM OUTER
  • 970 341 243 01
CBH34012 FRONT LOWER ARM INNER
  • 970 331 041 02
  • 970 331 042 02
  • 970 341 241 00
  • 970 341 241 01
CBH34013 FRONT LOWER ARM REAR
CBH34014 FRONT LOWER ARM INNER
  • 970 341 053 23
  • 970 341 053 24
  • 970 341 054 23
  • 970 341 054 24
CBH34015 FRONT LOWER ARM REAR
  • 970 341 245 01
  • 970 341 245 02
  • 970 341 245 10
CBH34025 REAR UPPER ARM
  • 970 331 043 00
  • 970 331 047 00
COS34005 FRONT
  • 970 341 051 03
  • 970 341 051 10
  • 970 341 053 04
  • 970 341 054 04
CS-3408L FRONT LOWER LH
  • 970 341 053 03
  • 970 341 053 04
CS-3408R FRONT LOWER RH
  • 970 341 054 03
  • 970 341 054 04
CS-3409 FRONT UPPER LH/RH
  • 970 341 051 03
  • 970 341 051 10
  • 970 341 151 01
CS-3417L FRONT LOWER LH
  • 970 341 053 23
  • 970 341 053 24
CS-3417R FRONT LOWER RH
  • 970 341 054 23
  • 970 341 054 24
CS-3439L FRONT LOWER LH
  • 970 341 053 03
  • 970 341 053 04
CS-3439R FRONT LOWER RH
  • 970 341 054 03
  • 970 341 054 04
CS-3452 REAR UPPER LH/ RH
  • 970 331 043 00
CS-3453 REAR UPPER LH/ RH
  • 970 331 047 00
CS-3455 FRONT UPPER LH/ RH
  • 970 341 051 22
  • 970 341 051 23
CSL34005 REAR AXLE LH/RH
  • 970 333 069 03
  • 970 333 069 05
  • 971 511 467B
  • 971 511 467D
  • 971 511 467F
CSL34006 REAR AXLE LH/RH
  • 970 343 069 01
  • 970 343 069 02
  • 970 343 069 03
CSL34007 FRONT AXLE LH/RH
  • 970 343 069 21
  • 970 343 069 22
  • 970 343 069 23
Model (Year)
PANAMERA (970)
