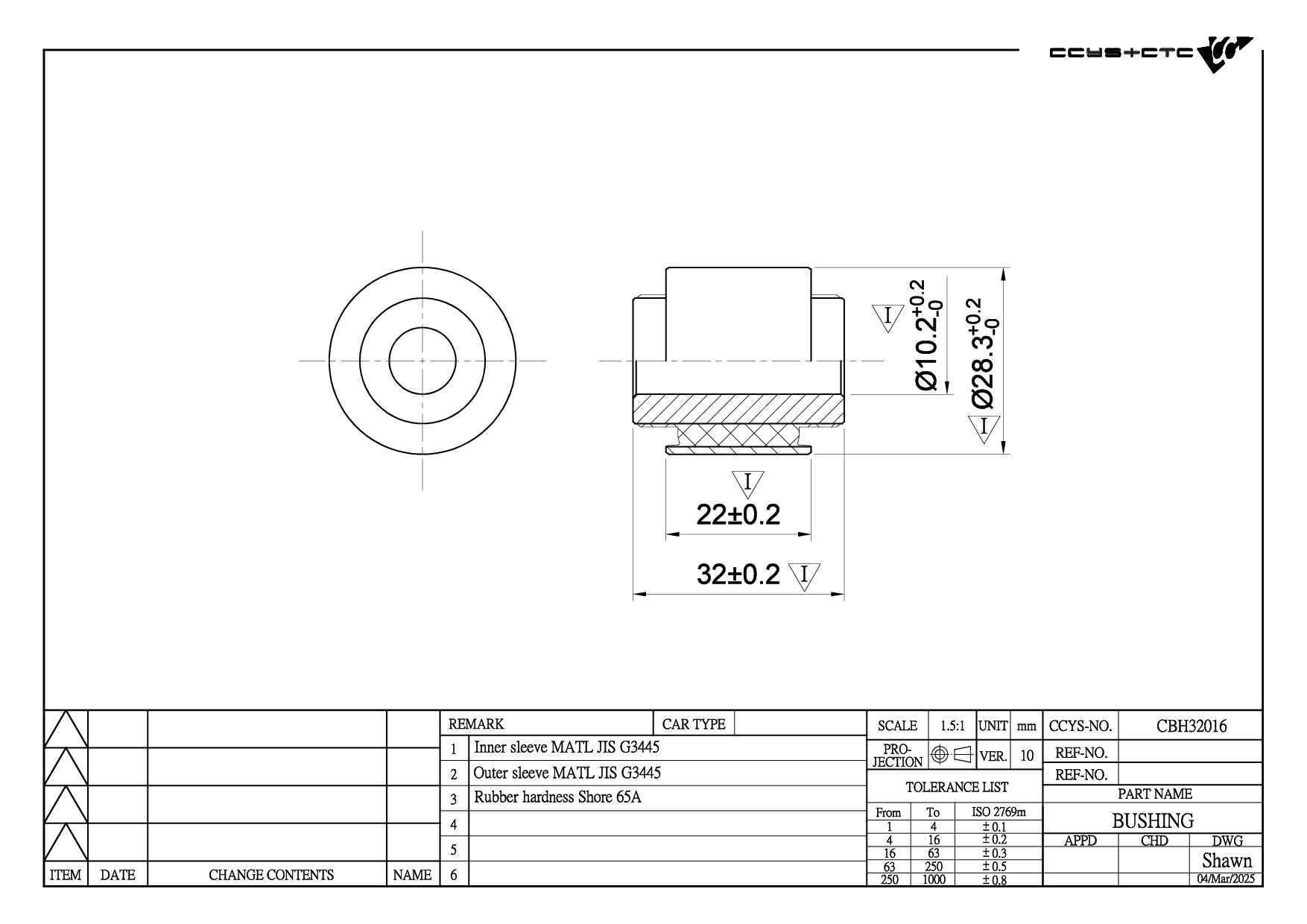

CBH32016
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM OUTER |
| OE No. | 2W933C254BA / 2W933C254BB / 2W933C254CA / 2W933C254CB / 2W933C255BA / 2W933C255BB / 2W933C255CA / 2W933C255CB / 6W833C254AB / 6W833C255AB / AW935K486B / C2C12101 / C2C12120 / C2C1799 / C2C1800 / C2C18325 / C2C18351 / C2C36795 / C2C36867 / C2C41027 / C2C41387 / C2C6533 / C2D6787 / C2P1051 / C2P1052 / C2P1 |
| Length | 28.3 mm |
| Width | 28.3 mm |
| Height | 32 mm |
| Net Weight | 0.08 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH31030 | FRONT UPPER ARM INNER | GX733084BA GX733091BA GX733A188AB HK833084A HK833084AB HK833084BA HK833084BB HK833091A HK833091AB HK833091BA HK833091BB LR090502 LR090503 LR117883 LR117884 T2H3192 T2H3193 T4A1010 T4A1067 T4A1068 T4A1069 T4N1128 T4N1130 T4N7752 |
|
 |
CBH32013 | FRONT LOWER ARM INNER | T2H8177 |
|
 |
CBH32015 | FRONT LOWER ARM INNER | GX733C254AC GX733C255AC HX733C254AA HX733C255AA T2H19026 T2H19029 T2H3194 T2H3195 T4N7753 |
|
 |
CBH32016 | FRONT LOWER ARM OUTER | 2W933C254BA 2W933C254BB 2W933C254CA 2W933C254CB 2W933C255BA 2W933C255BB 2W933C255CA 2W933C255CB 6W833C254AB 6W833C255AB AW935K486B C2C12101 C2C12120 C2C1799 C2C1800 C2C18325 C2C18351 C2C36795 C2C36867 C2C41027 C2C41387 C2C6533 C2D6787 C2P1051 C2P1052 C2P1 |
|
 |
CRE32003 | FRONT AXLE LH/ RH | T2H21418 T2H32619 T2H4205 T2H5049 |
|
 |
CS-3210L | FRONT LOWER LH | GX733C255AC HX733C255AA T2H19029 T2H3195 |
|
 |
CS-3210R | FRONT LOWER RH | GX733C254AC HX733C254AA T2H19026 T2H3194 |
|
 |
CS-3221 | FRONT LOWER LH/RH | GX733C256AC GX733C256AE GX733C256AF T2H24313 T2H3196 T2H57042 |
|
 |
CS-3226 | REAR LOWER LH/ RH | T2H16771 T2H2185 |
|
 |
CS-3230L | REAR UPPER LH | GX735K743AA GX735K743AB T2H17175 T4N3671 |
|
 |
CS-3230R | REAR UPPER RH | GX735K742AA GX735K742AB T2H17173 T4N3670 |
|
 |
CSL32010L | REAR AXLE LH | GX735D498AA T4N3673 |
|
 |
CSL32010R | REAR AXLE RH | GX735C486AA T4N3672 |
|
 |
CTE32006L | FRONT AXLE LH | T2H21417 T2H6306 |
|
 |
CTE32006R | FRONT AXLE RH | T2H21416 T2H6305 |
| Model (Year) |
|---|
|
S-TYPE II (X200) XE (X760) XF I (X250) XF II (X260) XF SPORTBRAKE (X250) XF SPORTBRAKE (X260) XJ (X350, X358) XK II Convertible (X150) XK II Coupe (X150) |
