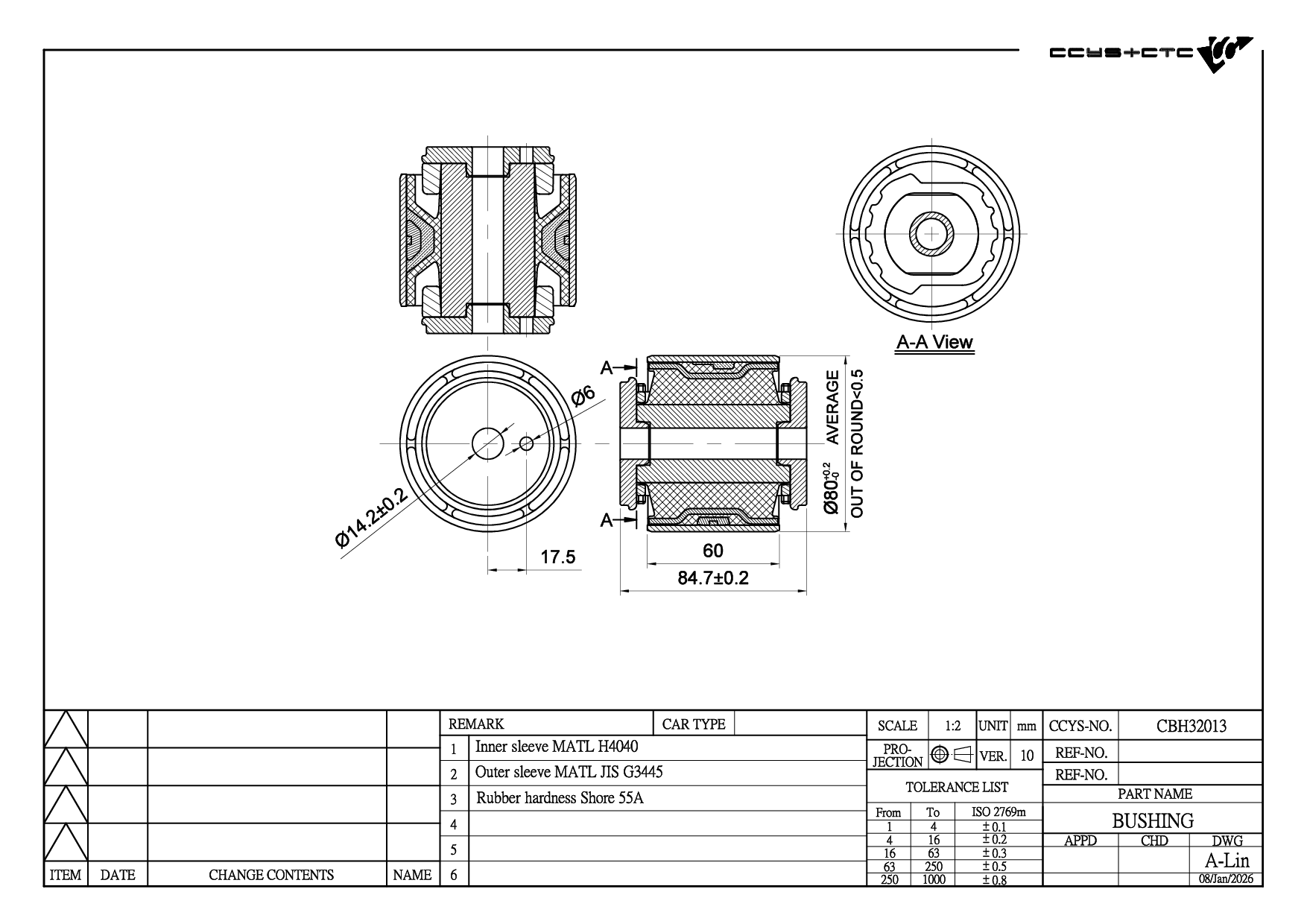

CBH32013
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM INNER |
| OE No. | |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH31030 | FRONT UPPER ARM INNER | GX733084BA GX733091BA GX733A188AB HK833084A HK833084AB HK833084BA HK833084BB HK833091A HK833091AB HK833091BA HK833091BB LR090502 LR090503 LR117883 LR117884 T2H3192 T2H3193 T4A1010 T4A1067 T4A1068 T4A1069 T4N1128 T4N1130 T4N7752 |
|
 |
CBH32013 | FRONT LOWER ARM INNER | ||
 |
CBH32015 | FRONT LOWER ARM INNER | GX733C254AC GX733C255AC HX733C254AA HX733C255AA T2H19026 T2H19029 T2H3194 T2H3195 |
|
 |
CBH32016 | FRONT LOWER ARM OUTER | GX733C254AC GX733C255AC HX733C254AA HX733C255AA T2H19026 T2H19029 T2H3194 T2H3195 |
|
 |
CS-3210L | FRONT LOWER LH | GX733C255AC HX733C255AA T2H19029 T2H3195 |
|
 |
CS-3210R | FRONT LOWER RH | GX733C254AC HX733C254AA T2H19026 T2H3194 |
|
 |
CS-3217L | FRONT UPPER LH | GX733091BA T2H3193 T4N1130 |
|
 |
CS-3217R | FRONT UPPER RH | GX733084BA T2H3192 T4N1128 |
|
 |
CS-3221 | FRONT LOWER LH/RH | GX733C256AC GX733C256AE T2H24313 T2H3196 |
| Model (Year) |
|---|
|
XF II (X260) |
