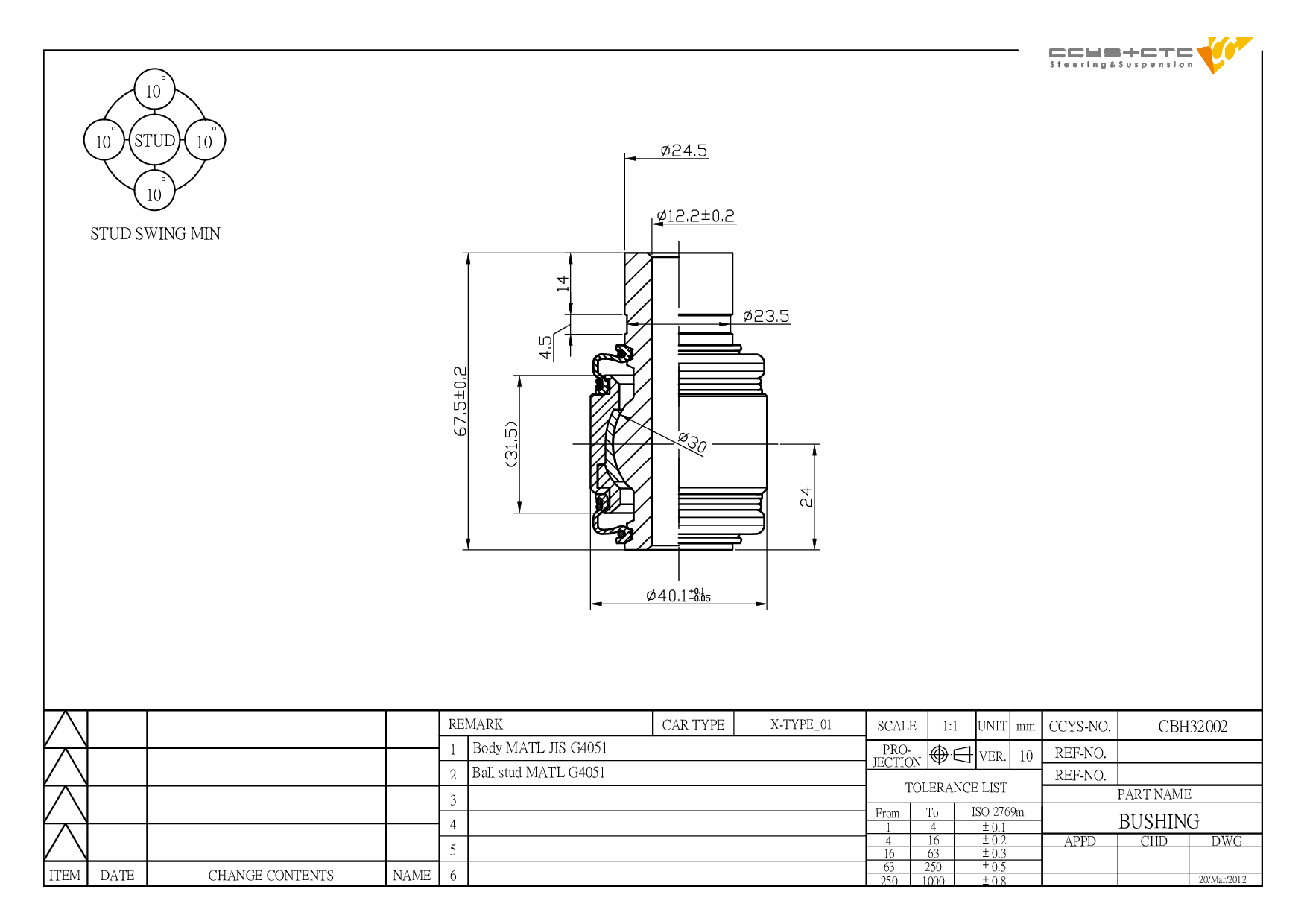

CBH32002
| Designation | Rubber Bushing |
| Position | REAR LOWER ARM |
| OE No. | 1X43 5K743 A / C2S19669 / C2S20741 / C2S25024 / C2S3602 / C2S36208 / C2S39585 / C2S46370 / C2S50863 |
| Length | 40.1 mm |
| Width | 67.5 mm |
| Height | 0 mm |
| Net Weight | 0.3 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03036 | FRONT LOWER ARM REAR | 1116579 1128483 1139926 1139928 1149802 1149803 1201383 1201384 1203923 1203924 1311416 1311417 1522081 1522130 2S71 3042 AC 2S71 3051 AC C2S39661 C2S39662 |
|
 |
CBH03037 | FRONT LOWER ARM INNER | 1118476 |
|
 |
CBH03073 | REAR ARM | 1117871 1118922 1124242 1206474 1S71-5K898-AD 1S71-5K898-AE 1S71-5K898-AF 1S71-5K898-AG |
|
 |
CBH03074 | REAR ARM | 1117857 1117859 1118920 1118921 1S71-5K652-AB 1S71-5K652-AC 1S71-5K743-AB 1S71-5K743-AC |
|
 |
CBH32002 | REAR LOWER ARM | 1X43 5K743 A C2S19669 C2S20741 C2S25024 C2S3602 C2S36208 C2S39585 C2S46370 C2S50863 |
|
 |
CBH32003 | REAR LOWER ARM | 1X43 5B713 AA C2S19669 C2S20741 C2S25024 C2S3602 C2S36208 C2S39585 C2S46370 C2S50863 |
|
 |
CBH32014 | REAR HUB CARRIER FRONT BUSHING | C2S46380 |
|
 |
CBJ32001A | FRONT LOWER LH/ RH | C2S396612 |
|
 |
CS-3201L | FRONT LOWER LH | C2S19368 C2S20964 C2S39662 C2S46338 C2S46699 C2S8390 |
|
 |
CS-3201R | FRONT LOWER RH | C2S19367 C2S20963 C2S39661 C2S46336 C2S46697 C2S8389 |
|
 |
CS-3206 | REAR LOWER LH/ RH | C2S19669 C2S20741 C2S25024 C2S3602 C2S36208 C2S39585 C2S46370 C2S50863 |
|
 |
CS-357 | REAR AXLE LH/ RH | 1117871 1118922 1124242 1206474 1S71-5K898-AD 1S71-5K898-AE 1S71-5K898-AF 1S71-5K898-AG |
|
 |
CS-358 | REAR AXLE LH/ RH | 1117859 1118921 1S71-5K743-AB 1S71-5K743-AC |
|
 |
CS-359 | REAR AXLE LH/ RH | 1117857 1118920 1S71-5K652-AB 1S71-5K652-AC |
|
 |
CSL03036 | FRONT (A= 250MM) | 1117698 1127646 1219697 1S71 3B438 BA 1S71-3B438-AB 1S71-3B438-AC 5X43-3B438-AA C2S26883 C2S39552 |
|
 |
CSL03049 | FRONT (A= 248MM) | 1127646 1S71-3B438-BA C2S3248 |
|
 |
CSL32004 | REAR AXLE LH/RH | C2S24698 C2S40709 C2S45009 C2S4585 |
| Model (Year) |
|---|
|
X-TYPE I (X400) X-TYPE I Estate (X400) |
