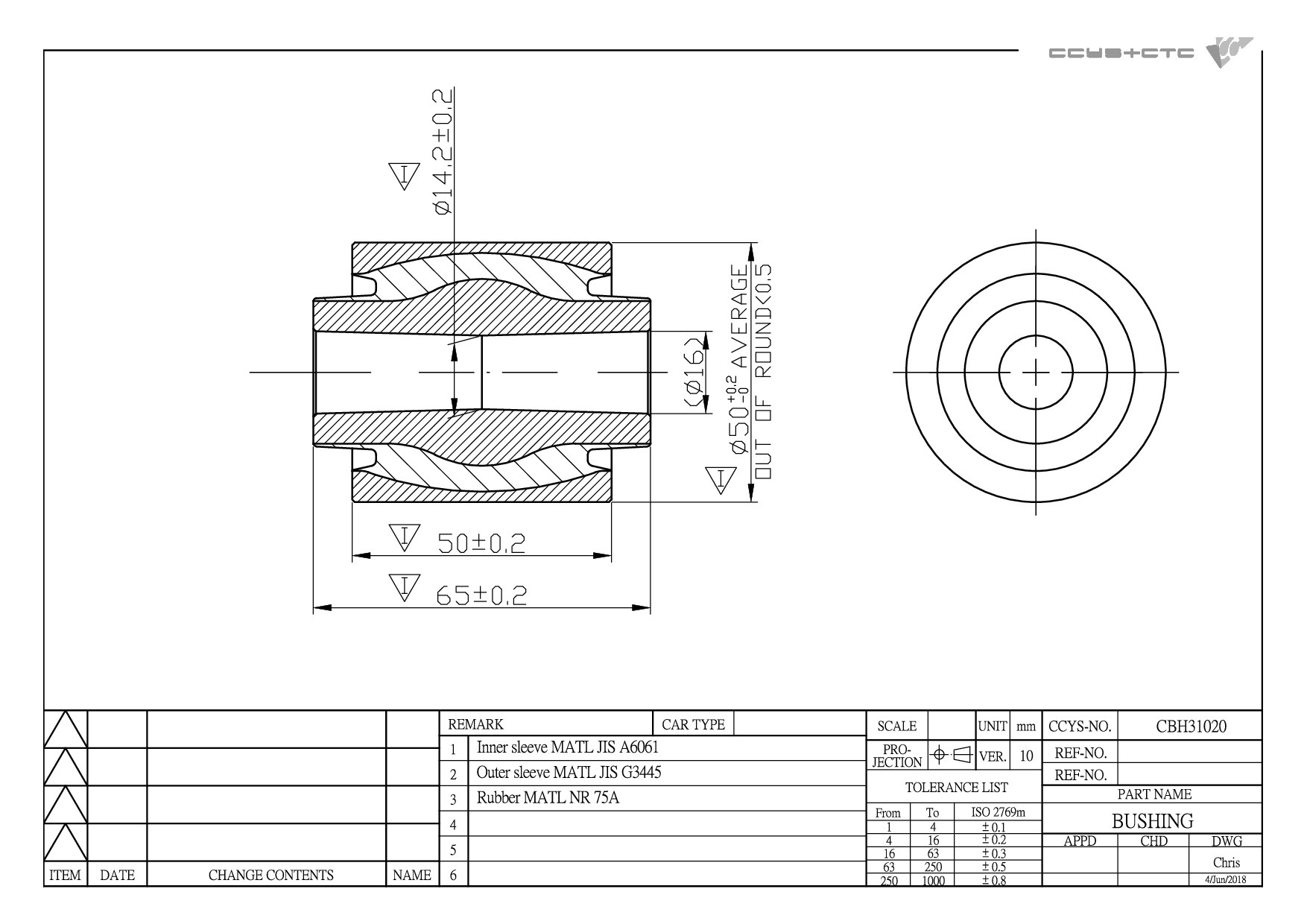

CBH31020
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM OUTER |
| OE No. | CPLA-34460-AA / CPLA-34460-AB / LPLA3C254AA / LPLA3C254AB / LPLA3C254AC / LPLA3C254AD / LPLA3C255AA / LPLA3C255AB / LPLA3C255AC / LPLA3C255AD / LR078476 / LR078477 / LR078478 / LR078479 / LR123627 / LR123628 / LR137874 / LR137876 / LR175395 / LR175396 / LR175796 / LR175797 |
| Length | 50 mm |
| Width | 50 mm |
| Height | 65 mm |
| Net Weight | 0.33 kg |
(L405) production no. from EA000001, Model Year from 2013
(L494) Model year from 2014
(L494) Model year from 2014
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH31020 | FRONT LOWER ARM OUTER | CPLA-34460-AA CPLA-34460-AB LPLA3C254AA LPLA3C254AB LPLA3C254AC LPLA3C254AD LPLA3C255AA LPLA3C255AB LPLA3C255AC LPLA3C255AD LR078476 LR078477 LR078478 LR078479 LR123627 LR123628 LR137874 LR137876 LR175395 LR175396 LR175796 LR175797 |
|
 |
CBH31021 | FRONT LOWER ARM INNER | 0984-BX6BK-16 CPLA-3C297-AB DPLA-3C297-AA LR078476 LR078477 LR078478 LR078479 |
|
 |
CBH31022 | FRONT LOWER ARM INNER | CPLA3069AH CPLA3069AI LPLA3069AB LPLA3C256AC LPLA3C256AD LPLA3C257AC LPLA3C257AD LR072469 LR072471 LR084108 LR100072 LR133896 LR133899 LR133900 LR144505 LR144506 LR148836 |
|
 |
CBH31027 | FRONT UPPER ARM INNER | ||
 |
COS31006 | FRONT | ||
 |
CS-3122L | FRONT LOWER LH | CPLA3C255AD CPLA3C255AE DPLA3C255AC DPLA3C255AD HPLA3C255BA LR034218 LR045243 LR078478 LR078479 LR084097 |
|
 |
CS-3122R | FRONT LOWER RH | CPLA3C254AD CPLA3C254AE DPLA3C254AC DPLA3C254AD HPLA3C254BA LR034217 LR045242 LR078476 LR078477 LR084095 |
|
 |
CS-3123L | FRONT LOWER LH | CPLA3C257AE CPLA3C257AF CPLA3C257AG JPLA3C257AA JPLA3C257BB JPLA3C257BC JPLA3C257BD LR034220 LR045245 LR072468 LR072469 LR109039 LR113307 LR126102 LR148060 |
|
 |
CS-3123R | FRONT LOWER RH | CPLA3C256AE CPLA3C256AG JPLA3C256BB JPLA3C256BC JPLA3C256BD LR034219 LR045244 LR072470 LR072471 LR109038 LR113306 LR126101 LR148059 |
|
 |
CS-3124L | FRONT UPPER LH | CPLA3091AE JPLA-3091-DA JPLA3091DB LR034214 LR044844 LR108766 LR113265 |
|
 |
CS-3124R | FRONT UPPER RH | CPLA3084AE JPLA-3084-DA JPLA3084DB LR034211 LR044841 LR108765 LR113259 |
|
 |
CSL31013L | REAR AXLE LH | LR042976 |
|
 |
CSL31013R | REAR AXLE RH | LR042975 |
|
 |
CSL31016L | REAR LH( A= 184MM) | LR033243 LR048093 |
|
|
CSL31016R | REAR RH( A= 184MM) | LR033242 LR048092 |
| Model (Year) |
|---|
|
DEFENDER Station Wagon (L663) DEFENDER Van (L663) DISCOVERY V (L462) DISCOVERY V VAN (L462) RANGE ROVER IV (L405) RANGE ROVER SPORT II (L494) |
