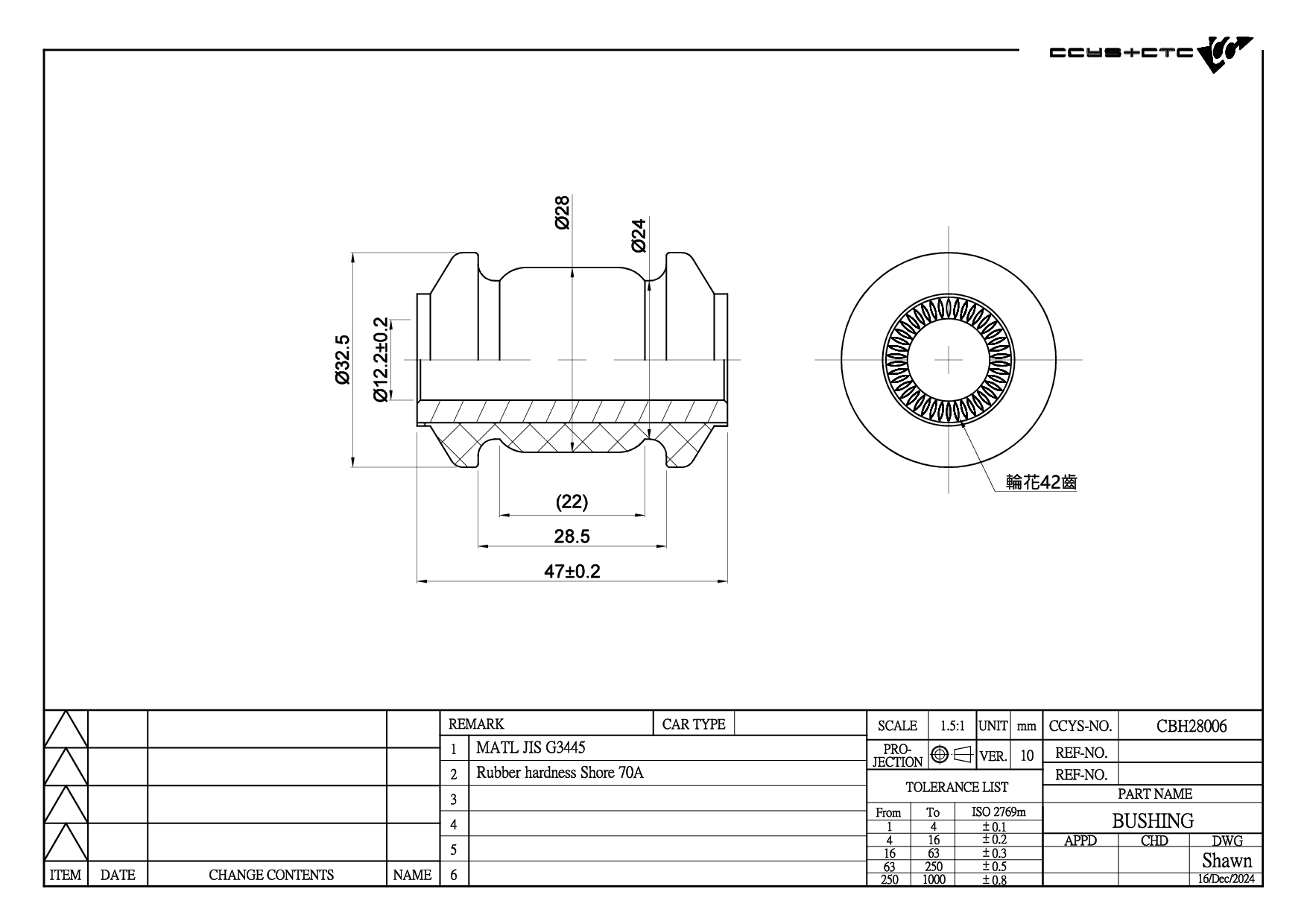

CBH28006
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM INNER |
| OE No. | 96535081 / 96535081D / 96535082 / 96535082D / 96535087 / 96815893 / 96815893D / 96815894 / 96815894D / 96870465 / 96870466 |
| Length | 33 mm |
| Width | 33 mm |
| Height | 47 mm |
| Net Weight | 0.07 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH28005 | FRONT LOWER ARM REAR | 95479763 95479764 95479765 95975940 96535081 96535081D 96535082 96535082D 96535088 96653381 96815893 96815893D 96815894 96815894D 96870464 96870465 96870466 |
|
 |
CBH28006 | FRONT LOWER ARM INNER | 96535081 96535081D 96535082 96535082D 96535087 96815893 96815893D 96815894 96815894D 96870465 96870466 |
|
 |
CBJ28003A | FRONT LOWER LH/ RH | 05490983 19164775 19306227 5490983 96535089 |
|
 |
CS-2805L | FRONT LOWER LH | 9008225 95017035 95479764 95975941 96535081 96535081D 96815893 96815893D 96870465 |
|
 |
CS-2805R | FRONT LOWER RH | 9008226 95017034 95017036 95479765 95975942 96535082 96535082D 96815894 96815894D 96870466 |
| Model (Year) |
|---|
|
AVEO / KALOS Hatchback (T200) AVEO / KALOS Hatchback (T250, T255) AVEO / KALOS Saloon (T200) AVEO / KALOS Saloon (T250, T255) AVEO / KALOS Saloon (T250, T255) | AVEO / GENTRA | LOVA |
| Model (Year) |
|---|
|
KALOS (KLAS) KALOS Saloon (KLAS) |
