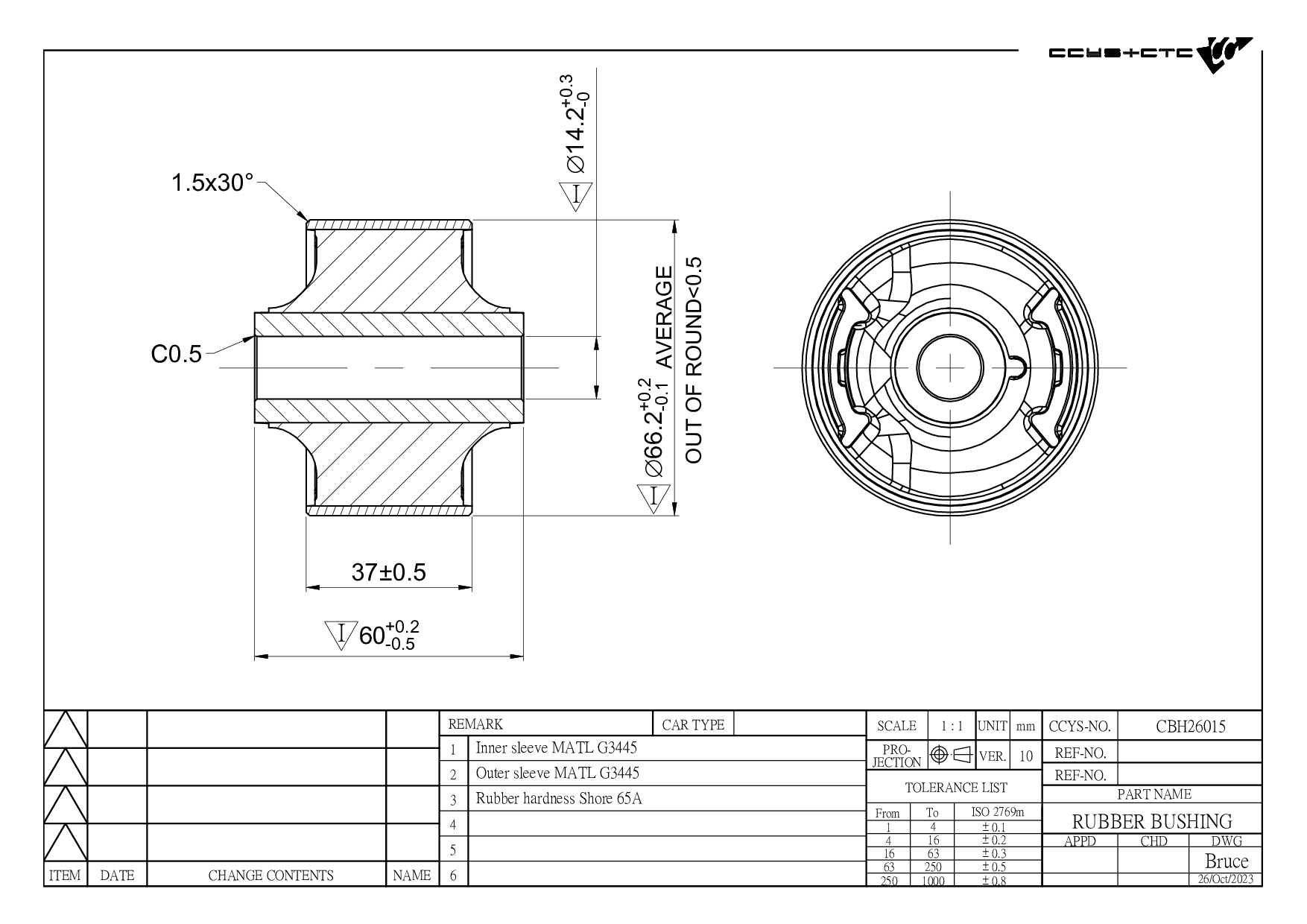

CBH26015
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM REAR |
| OE No. | 54500-2H000 / 54500-2H100 / 54501-2H000 / 54501-2H100 / 54584-0Q000 / 54584-2H000 |
| Length | 66.2 mm |
| Width | 66.2 mm |
| Height | 60 mm |
| Net Weight | 0.22 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH26015 | FRONT LOWER ARM REAR | 54500-2H000 54500-2H100 54501-2H000 54501-2H100 54584-0Q000 54584-2H000 |
|
 |
CBH26016 | FRONT LOWER ARM INNER | 54500-2H000 54500-2H100 54501-2H000 54501-2H100 54551-2E000 54551-2H000 54551-3R000 54551-A4000 |
|
 |
CS-2620L | FRONT LOWER LH | 54500-2H000 54500-2H100 |
|
 |
CS-2620R | FRONT LOWER RH | 54501-2H000 54501-2H100 |
|
 |
CSL29009 | FRONT (A= 243.5MM) | 54830-2H000 54830-2H100 54830-2H200 |
| Model (Year) |
|---|
|
ELANTRA IV Saloon (HD) | AVANTE i30 (FD) | ELANTRA | AVANTE i30 Estate (FD) |
| Model (Year) |
|---|
|
CEE'D Hatchback (ED) CEE'D SW (ED) PRO CEE'D (ED) |
