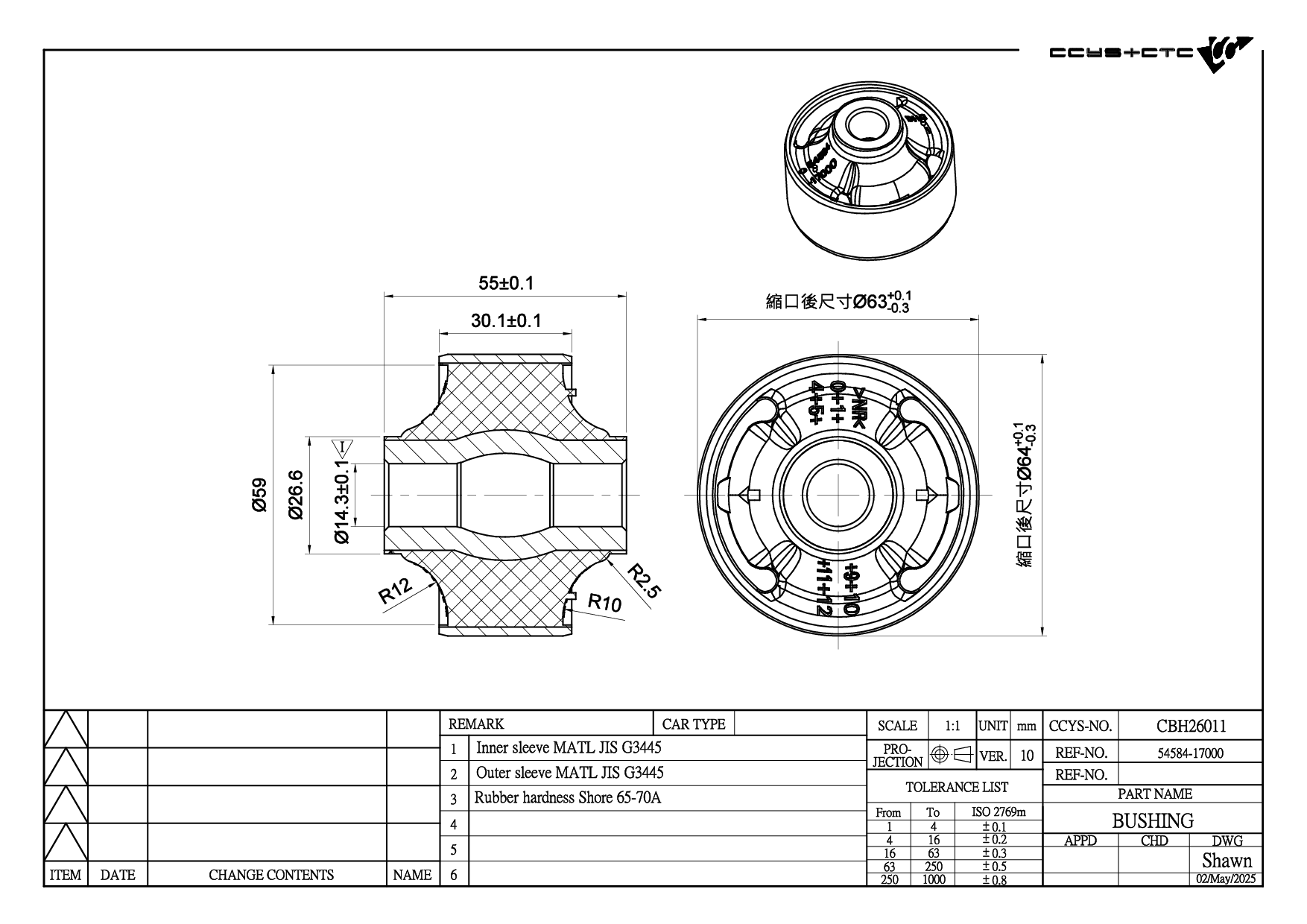

CBH26011
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM REAR |
| OE No. | 54500-2C602 / 54500-2C602AS / 54500-2C602DS / 54500-2C607 / 54500-2D002AS / 54501-2C602 / 54501-2C602AS / 54501-2C602DS / 54501-2C607 / 54501-2D002AS |
| Length | 64 mm |
| Width | 64 mm |
| Height | 55 mm |
| Net Weight | 0.12 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH26011 | FRONT LOWER ARM REAR | 54500-2C602 54500-2C602AS 54500-2C602DS 54500-2C607 54500-2D002AS 54501-2C602 54501-2C602AS 54501-2C602DS 54501-2C607 54501-2D002AS |
|
 |
CBJ26003 | FRONT LOWER LH/RH | 54500-1J500 54500-1J600 54500-1J700 54500-22000 54500-22100 54500-22200 54500-27000 54500-29000 54500-29500 54501-1J500 54501-1J600 54501-1J700 54501-22000 54501-22100 54501-22200 54501-27000 54501-29000 54501-29500 54503-22000 54503-22A00 54503-25A00 545 |
|
 |
CRE26011 | FRONT AXLE LH/ RH | 57724-2E000 |
|
 |
CS-2615L | FRONT LOWER LH | 54500-2C602 54500-2C602AS 54500-2C602DS 54500-2C607 |
|
 |
CS-2615R | FRONT LOWER RH | 54501-2C602 54501-2C602AS 54501-2C602DS 54501-2C607 |
|
 |
CSL01044 | FRONT AXLE LH/ RH | 52320-SJK-003 |
|
 |
CSL26031 | REAR AXLE LH/ RH | 55530-17000 55530-17010 55530-29000 55530-29300 55530-29500 |
|
 |
CTE26001 | FRONT AXLE LH/ RH (C= M14X1.5) | 56820-22000 56820-25000 56820-28500 56820-28520 56820-29500 56820-2F000 56820-37000 56820-37010 56820-3B000 57780-3B000 |
| Model (Year) |
|---|
|
COUPE II (GK) | TUSCANI ELANTRA III (XD) | AVANTE TIBURON Coupe |
