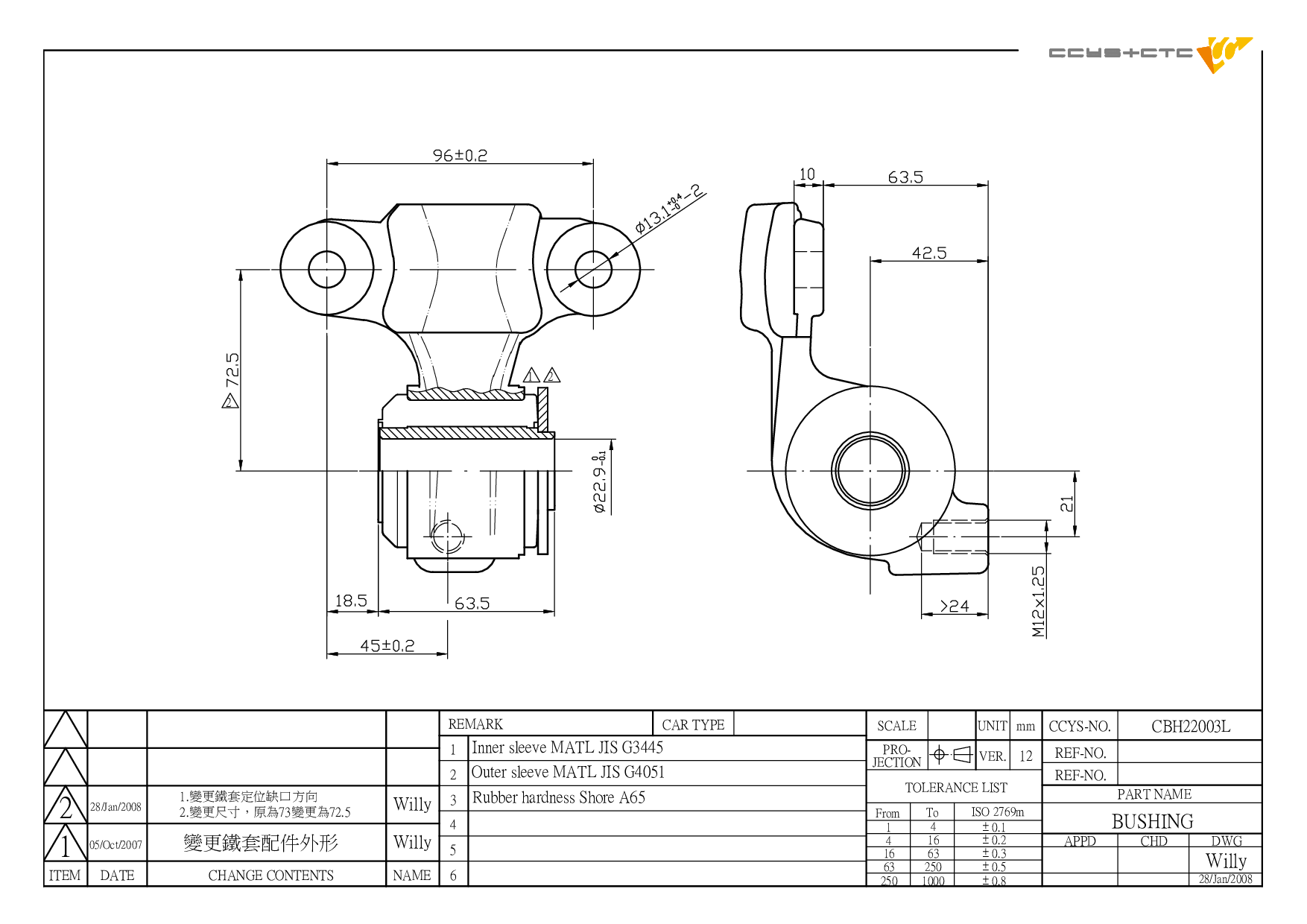

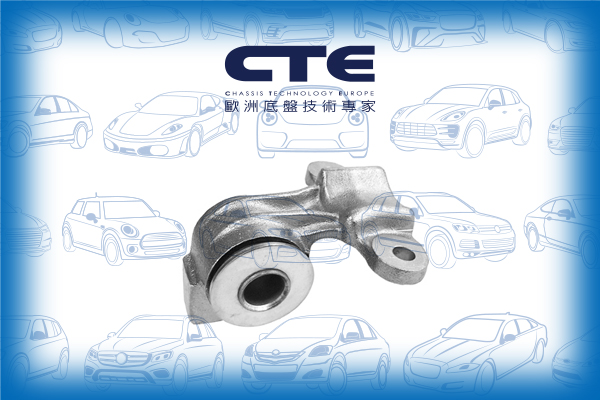

CBH22003L
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM LH REAR |
| OE No. | 1313083080 / 1316735080 / 1317389080 / 1322663080 / 1333754080 / 3520.94 / 3520.C3 / 3520.C5 / 3520.C9 / 3520.G9 / 3520.P4 / 3520.P8 / 71737047 / 93500972 |
| Length | 132.4 mm |
| Width | 129.5 mm |
| Height | 89 mm |
| Net Weight | 0.11 kg |
(220_) Construction Year to 07.2006. 06.2000.01.2000 Country Specific Design Europe (224_) (222) (223) VIN TO 10824
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH22003L | FRONT LOWER ARM LH REAR | 1313083080 1316735080 1317389080 1322663080 1333754080 3520.94 3520.C3 3520.C5 3520.C9 3520.G9 3520.P4 3520.P8 71737047 93500972 |
|
 |

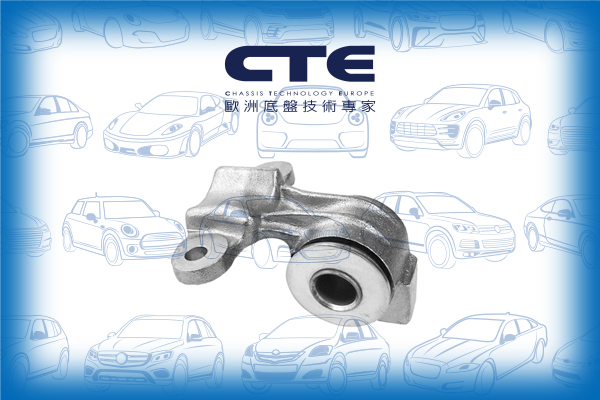

CBH22003R | FRONT LOWER ARM RH REAR | 1313084080 1316736080 1317390080 1322664080 1333755080 3521.64 3521.83 3521.85 3521.C9 3521.J9 3521.K4 3521.L0 71737048 93500973 |
|
 |

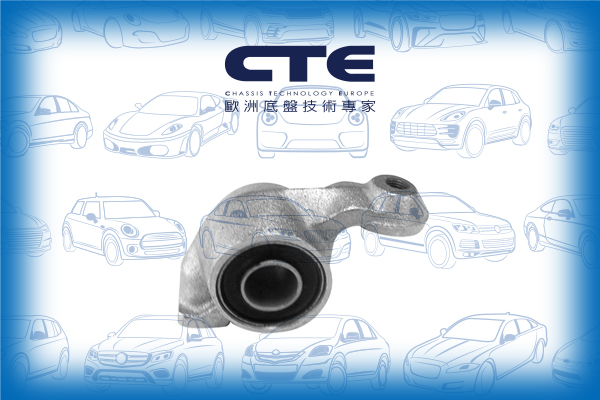

CBH22004 | FRONT LOWER ARM INNER | 1313083080 1313084080 1316735080 1316736080 1317389080 1317390080 1322663080 1322664080 1333754080 1333755080 3520.94 3520.C3 3520.C5 3520.C9 3520.G9 3520.N9 3520.P4 3520.P8 3521.64 3521.83 3521.85 3521.C9 3521.J9 3521.K4 3521.L0 71737047 71737048 9350097 |
|
 |

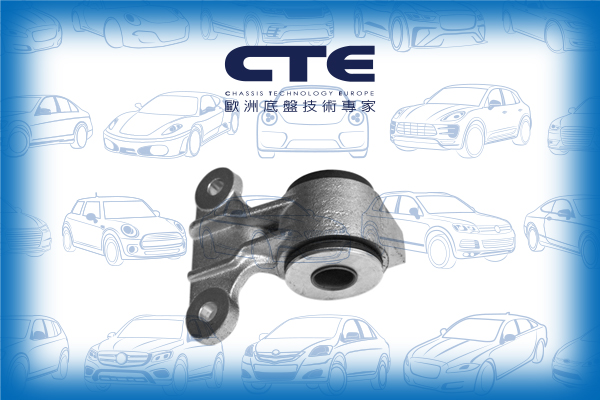

CBH22015L | FRONT LOWER ARM LH REAR | 1401239580 1497408080 3520.R8 3520.V8 SU001-A0992 |
|
 |

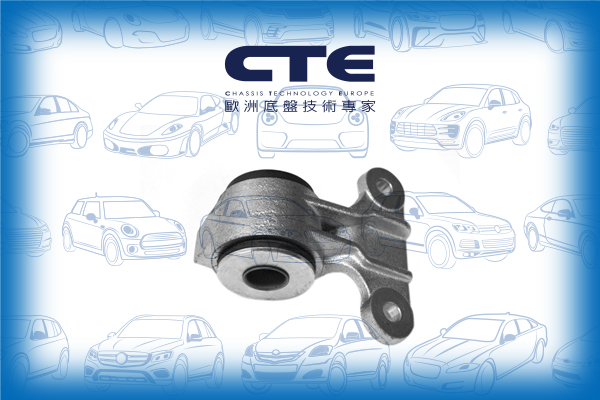

CBH22015R | FRONT LOWER ARM RH REAR | 1401239480 1497407080 3521.N9 3521.S0 SU001-A0993 |
|
 |

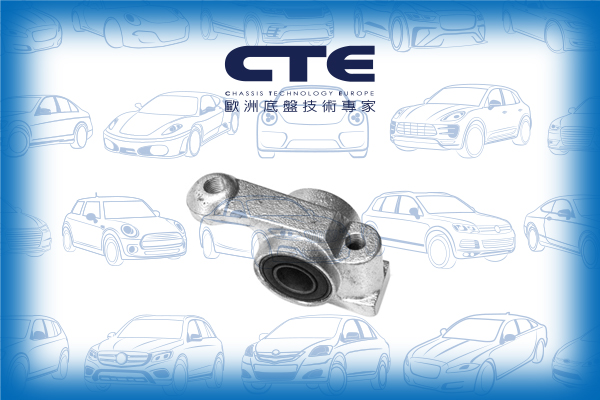

CBH22016 | FRONT LOWER ARM INNER | 1401239480 1401239580 1497407080 1497408080 3520.R8 3520.V8 3520.W4 3521.N9 3521.S0 3521.S7 93501487 93501488 SU001-A0992 SU001-A0993 |
|
 |

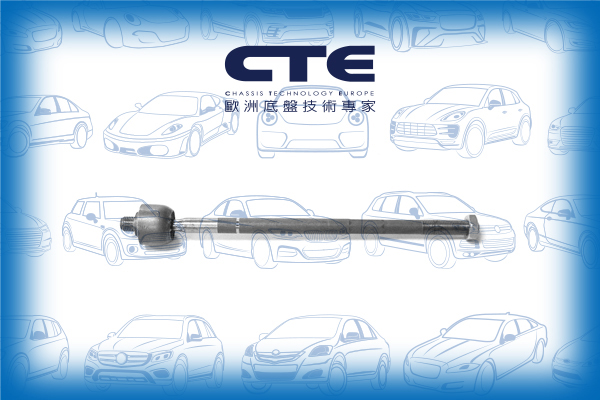

CRE22001 | D= M14X1.5 , C= M14X1.5 | 3812.A4 |
|
 |

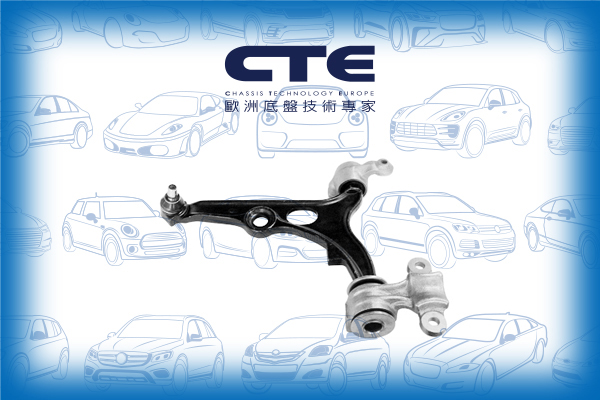

CS-2204L | FRONT LOWER LH | 1313083080 1316735080 1317389080 1322663080 1333754080 3520.94 3520.C3 3520.C5 3520.C9 3520.G9 3520.N9 3520.P4 3520.P8 71737047 93500972 |
|
 |
CS-2204R | FRONT LOWER RH | 1313084080 1316736080 1317390080 1322664080 1333755080 3521.64 3521.83 3521.85 3521.C9 3521.J9 3521.K4 3521.L0 71737048 93500973 |
|
 |

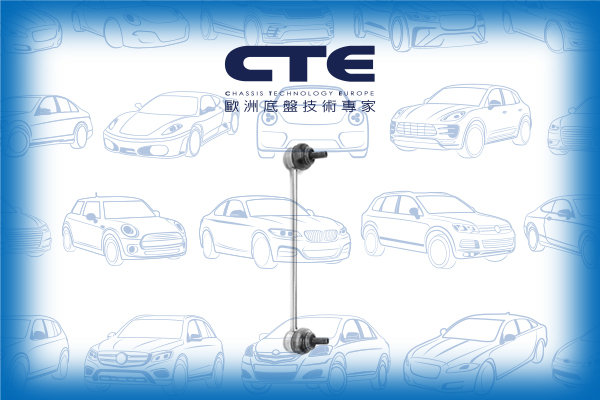

CSL25008 | FRONT (A= 263MM) | 1331209080 16 073 253 80 16 348 989 80 5087.51 |
| Model (Year) |
|---|
|
EVASION MPV (22, U6) | SYNERGIE EVASION Van (U6_, AF_) | SYNERGIE JUMPY I (U6U_) | DISPATCH JUMPY I Platform/Chassis (BU_, BV_, BW_, BX_) | DISPATCH JUMPY I Van (BS_, BT_, BY_, BZ_) | DISPATCH JUMPY II (VF7) | DISPATCH |
| Model (Year) |
|---|
|
SCUDO Bus (220_) SCUDO Platform/Chassis (220_) SCUDO Van (220_) ULYSSE (220_) |
| Model (Year) |
|---|
|
ZETA (22_) |
| Model (Year) |
|---|
|
806 (221) 806 Van (AF_) EXPERT (224_) EXPERT Platform/Chassis (223) EXPERT Van (222) |
