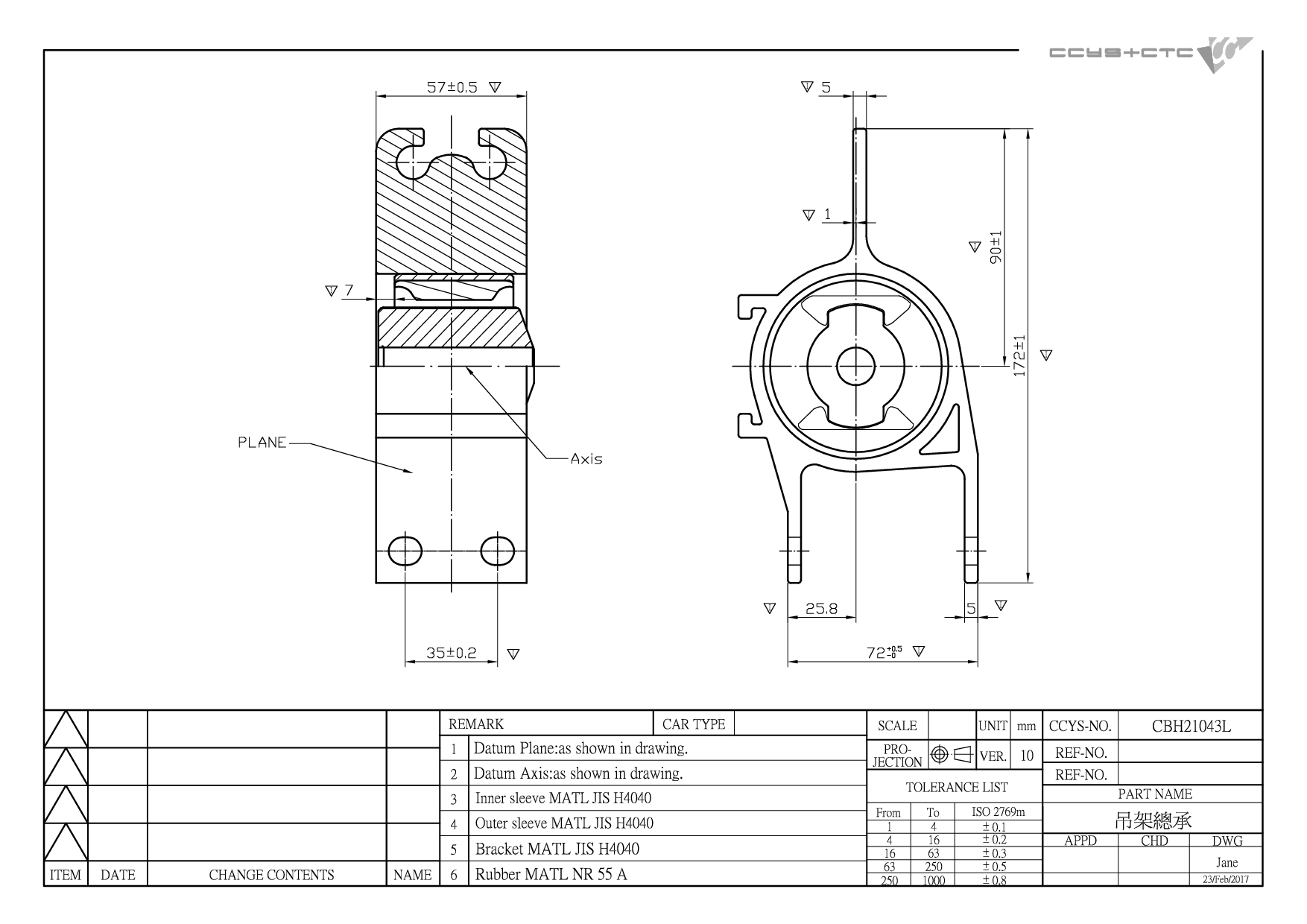

CBH21043L
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM LH REAR |
| OE No. | 246 333 00 14 / 246 333 01 00 / A246 333 00 14 / A246 333 01 00 |
| Length | 62.4 mm |
| Width | 90.7 mm |
| Height | 172 mm |
| Net Weight | 0.69 kg |
MERCEDES-BENZ (W176,246.242) , (C117) (X117) ,Suspension for vehicles without electronic suspension control, (X156) ,for vehicles without increased ground clearance
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH21042L | FRONT LOWER ARM LH | 246 333 05 14 A246 333 05 14 |
|
 |
CBH21042R | FRONT LOWER ARM RH | 246 333 06 14 A246 333 06 14 |
|
 |
CBH21043L | FRONT LOWER ARM LH REAR | 246 333 00 14 246 333 01 00 A246 333 00 14 A246 333 01 00 |
|
 |
CBH21043R | FRONT LOWER ARM RH REAR | 246 333 02 00 246 333 02 14 A246 333 02 00 A246 333 02 14 |
|
 |
CBH21044 | FRONT LOWER ARM INNER | 246 333 01 14 A246 333 01 14 |
|
 |
CS-2132L | FRONT LOWER LH | 242 330 07 00 246 330 17 07 246 330 47 00 545015DA0A 545015DJ0A A242 330 07 00 A246 330 17 07 A246 330 47 00 |
|
 |
CS-2132R | FRONT LOWER RH | 242 330 08 00 246 330 18 07 246 330 48 00 545005DA0A 545005DJ0A A242 330 08 00 A246 330 18 07 A246 330 48 00 |
|
 |
CS-2149L | FRONT LOWER LH | 156 330 01 00 156 330 05 00 A156 330 01 00 A156 330 05 00 |
|
 |
CS-2149R | FRONT LOWER RH | 156 330 02 00 156 330 06 00 A156 330 02 00 A156 330 06 00 |
|
 |
CSL21031 | FRONT LH/RH | 246 320 00 89 246 320 06 89 54616-5DA0A 54618-HG00A 9846549080 A246 320 00 89 A246 320 06 89 |
| Model (Year) |
|---|
|
Q30 QX30 |
| Model (Year) |
|---|
|
A-CLASS (W176) B-CLASS Sports Tourer (W246, W242) CLA Coupe (C117) CLA Shooting Brake (X117) GLA-CLASS (X156) |
