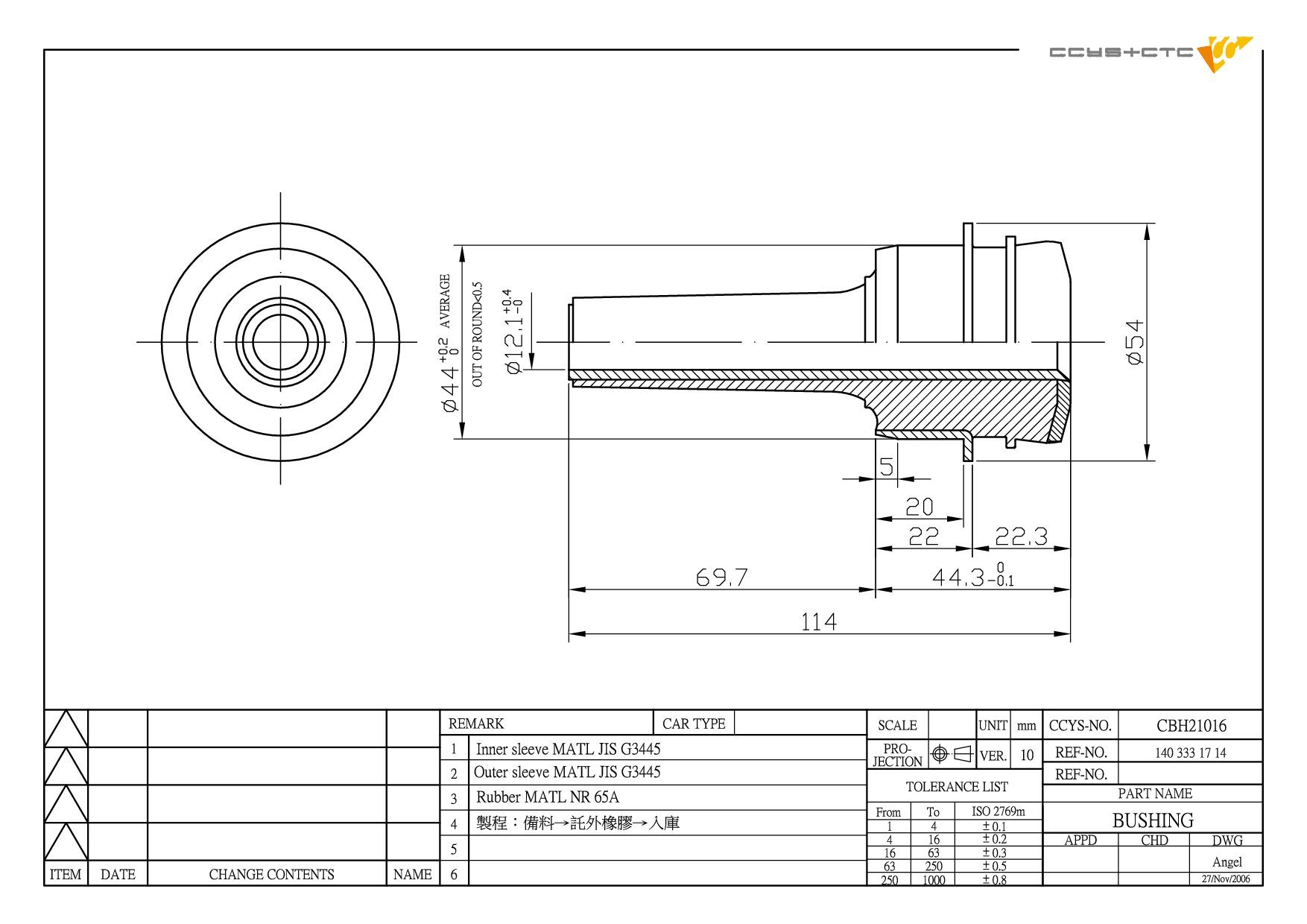

CBH21016
| Designation | Rubber Bushing |
| Position | FRONT UPPER ARM INNER |
| OE No. | 140 333 17 14 / A 140 333 17 14 |
| Length | 114 mm |
| Width | 54 mm |
| Height | 54 mm |
| Net Weight | 0.25 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH21013 | REAR AXLE UPPER | 124 352 90 65 A124 352 90 65 |
|
 |
CBH21014 | REAR AXLE UPPER | 124 350 05 75 124 352 35 65 A124 350 01 29 A124 350 05 75 |
|
 |
CBH21015 | REAR AXLE LOWER | 124 352 43 65 201 352 87 65 201 352 88 65 A124 352 43 65 A201 352 87 65 A201 352 88 65 |
|
 |
CBH21016 | FRONT UPPER ARM INNER | 140 333 17 14 A 140 333 17 14 |
|
 |
CS-2105L | REAR UPPER LH | 124 350 22 06 124 350 26 06 124 350 70 06 124 350 76 06 129 350 04 06 210 350 16 06 210 350 24 06 A124 350 22 06 A124 350 26 06 A124 350 70 06 A124 350 76 06 A129 350 04 06 A210 350 16 06 |
|
 |
CS-2105R | REAR UPPER RH | 124 350 23 06 124 350 27 06 124 350 71 06 124 350 77 06 129 350 05 06 129 350 09 06 201 350 33 06 210 350 17 06 210 350 25 06 A124 350 23 06 A124 350 27 06 A124 350 71 06 A124 350 77 06 A129 350 05 06 A129 350 09 06 A201 350 33 06 A210 350 17 06 |
|
 |
CS-2108 | REAR LOWER LH/ RH | 201 350 27 53 201 350 29 53 201 350 32 53 201 359 19 53 210 350 06 53 210 350 09 53 210 350 14 53 210 350 18 53 A201 350 19 53 A201 350 27 53 A201 350 32 53 A210 350 06 53 A210 350 14 53 A210 350 18 53 |
|
 |
CS-2109L | FRONT UPPER LH | 140 330 54 07 140 330 58 07 140 330 76 07 A140 330 54 07 A140 330 58 07 A140 330 76 07 |
|
 |
CS-2109R | FRONT UPPER RH | 140 330 55 07 140 330 59 07 140 330 77 07 A140 330 55 07 A140 330 59 07 A140 330 77 07 |
|
 |
CSL21010L | FRONT LH (A= 153MM) | 140 320 11 89 A140 320 11 89 |
|
 |
CSL21010R | FRONT RH (A= 153MM) | 140 320 12 89 A140 320 12 89 |
|
 |
CSL21011 | REAR (A= 230MM) | 140 320 08 89 140 320 35 89 A140 320 08 89 A140 320 35 89 |
|
 |
CSL21013 | STRUT ARM (A= 321MM) | 140 350 36 06 A140 350 36 06 |
|
 |
CSL21014 | STRUT ARM (A= 393.4MM) | 140 350 35 06 A140 350 35 06 |
|
 |
CSL21015 | STRUT ARM (A= 290.5MM) | 140 350 18 53 140 350 24 53 140 350 30 53 140 350 31 53 140 350 34 53 A 140 350 18 53 A 140 350 24 53 A 140 350 30 53 A 140 350 31 53 |
|
 |
CSL21016 | STRUT ARM (A= 431MM) | 140 350 34 06 220 350 26 06 A140 350 34 06 A220 350 26 06 |
| Model (Year) |
|---|
|
S-CLASS (W140) |
