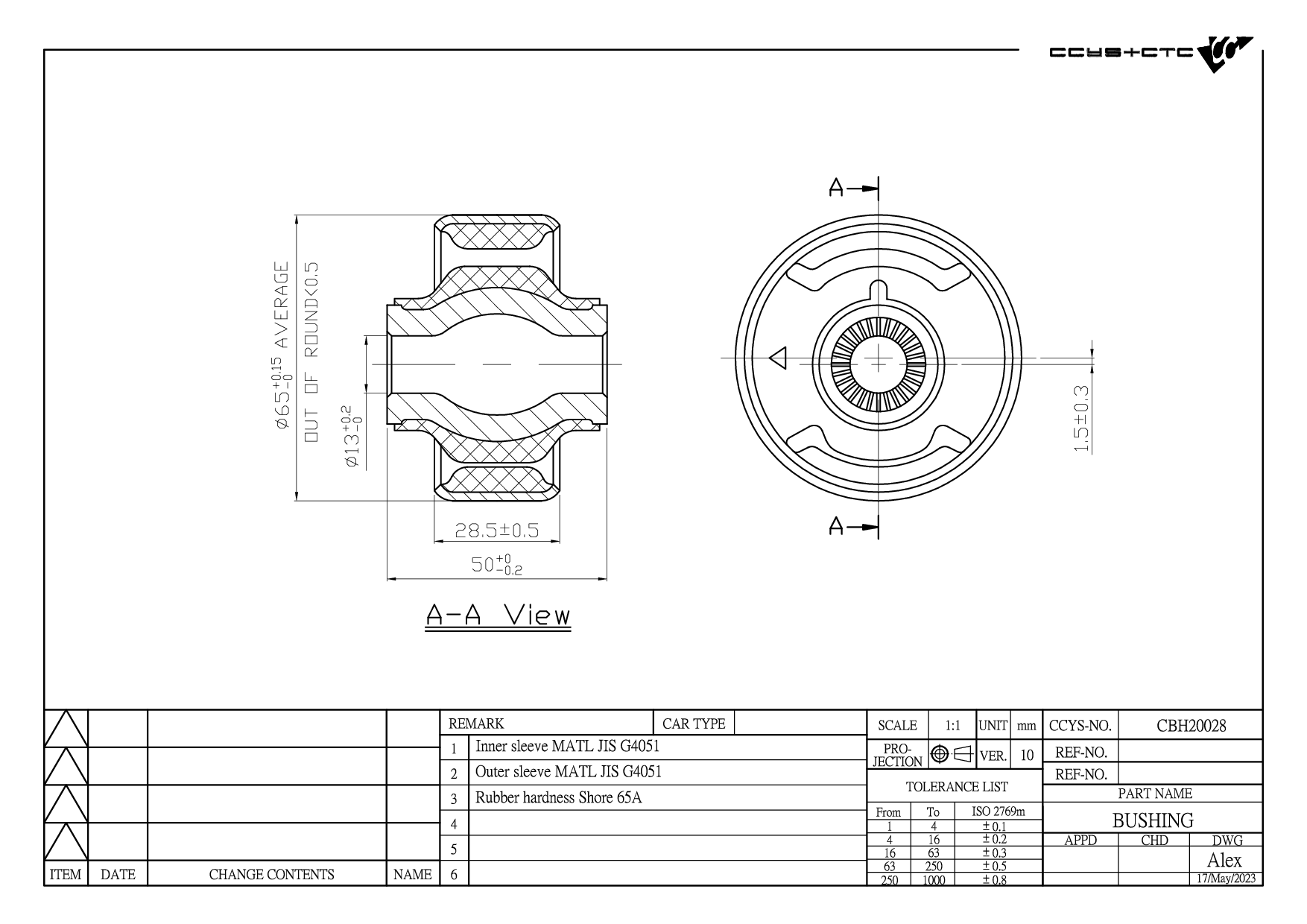

CBH20028
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM REAR |
| OE No. | 1EA 407 182D / 2556851 / 2699256 / 2699268 / 2720850 / 5Q0 407 182F / 5Q0 407 183C / 5Q0 407 183D / 5Q0 407 183E / 5Q0 407 183G / 5Q0 407 183J / 5Q0 407 183K / 5Q0 407 183L / 5Q0 407 183M / 5Q0 407 183N / VWN3CA-5A638-AA / VWR2KA-3063-AA / VWR2KA-3A423-AA / VWR2KA-3A424-AA |
| Length | 65 mm |
| Width | 65 mm |
| Height | 50 mm |
| Net Weight | 0.34 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19023 | REAR ARM | 1K0 505 553 1K0 505 553A 1KD 505 553 3C0 505 553 |
|
 |
CBH19028 | REAR AXLE | 1K0 505 541B 1K0 505 541C 1K0 505 541D 3C0 505 223E 3C0 505 541 5C0 501 541 5C0 501 541A 5Q0 505 223 5Q0 505 223D 5Q0 505 224 5Q0 505 224D 5Q0 505 541A 5QM 505 223 5QM 505 224 6R0 505 223 6R0 505 224 M112919310 M112919320 M112919350 |
|
 |
CBH20017 | FRONT LOWER ARM INNER | 1K0 407 182 1K0 407 182A 1K0 407 182F 1KD 407 182 5Q0 407 182 5Q0 407 182A |
|
 |
CBH20028 | FRONT LOWER ARM REAR | 1EA 407 182D 2556851 2699256 2699268 2720850 5Q0 407 182F 5Q0 407 183C 5Q0 407 183D 5Q0 407 183E 5Q0 407 183G 5Q0 407 183J 5Q0 407 183K 5Q0 407 183L 5Q0 407 183M 5Q0 407 183N VWN3CA-5A638-AA VWR2KA-3063-AA VWR2KA-3A423-AA VWR2KA-3A424-AA |
|
 |
CBJ20007LA | FRONT LOWER LH | 35D 407 365 3C0 407 365A 3C0 407 365B 5QD 407 365 5QD 407 365A |
|
 |
CBJ20007RA | FRONT LOWER RH | 35D 407 366 3C0 407 366A 5QD 407 366 5QD 407 366A |
|
 |
CRE20013 | D= M16X1.5 , C= M16X1.5 | 1K0 423 810A 1K0 423 810E 3C0 423 810A |
|
 |
CS-1986L | REAR AXLE LH | 5Q0 505 223 5Q0 505 223D 5QM 505 223 |
|
 |
CS-1986R | REAR AXLE RH | 5Q0 505 224 5Q0 505 224D 5QM 505 224 |
|
 |
CS-2036L | FRONT LOWER LH | 5Q0 407 151AC 5Q0 407 151J 5Q0 407 151L 5Q0 407 151M 5Q0 407 151P 5Q0 407 151R 5Q0 407 151S 81A 407 151D 81A 407 151E |
|
 |
CS-2036R | FRONT LOWER RH | 5Q0 407 152AC 5Q0 407 152J 5Q0 407 152L 5Q0 407 152M 5Q0 407 152P 5Q0 407 152R 5Q0 407 152S 81A 407 152D 81A 407 152E |
|
 |
CSL20014D1 | 1K0 411 315B 1K0 411 315D 1K0 411 315E 1K0 411 315G 1K0 411 315J 1K0 411 315K 1K0 411 315P 1K0 411 315R 1KD 411 315 1KD 411 315A 3QG 411 315A 5Q0 411 315 5Q0 411 315A 5Q0 411 315B 5Q0 411 315C 5Q0 411 315D 5QD 411 315 5QM 411 315 |
||
 |
CTE20001L | FRONT AXLE LH (C= M16X1.5) | 1K0 423 803 A 1K0 423 811A 1K0 423 811B 1K0 423 811C 1K0 423 811E 1K0 423 811F 1K0 423 811G 1K0 423 811J 1K0 423 811K 1K1 423 051 CL 1K1 423 051 CN 1K1 423 070 X 2QB 423 811 3C0 423 811 B |
|
 |
CTE20001R | FRONT AXLE RH (C= M16X1.5) | 1K0 423 804 A 1K0 423 812A 1K0 423 812B 1K0 423 812C 1K0 423 812E 1K0 423 812F 1K0 423 812G 1K0 423 812J 1K0 423 812K 1K1 423 051 CL 1K1 423 051 CN 1K1 423 070 X 2QB 423 812 3C0 423 812 B |
| Model (Year) |
|---|
|
A1 Allstreet (GBH) A1 City Carver (GBH) A1 Sportback (GBA) A3 (8V1, 8VK) | A3 / S3 A3 Allstreet (8YJ) A3 Convertible (8V7, 8VE) A3 Limousine (8VS, 8VM) A3 Limousine (8VS, 8VM) | A3 / S3 A3 Limousine (8YS) A3 Limousine (8YS, 8YM) A3 Sportback (8VA, 8VF) A3 Sportback (8YA) A3 Sportback (8YA, 8YF) Q2 (GAB, GAG) Q3 (F3B) Q3 (FJB) Q3 Sportback (F3N) Q4 E-TRON Sportback (F4N) Q4 E-TRON SUV (F4B) |
| Model (Year) |
|---|
|
A3 Limousine (85S, 85M) A3 Sportback (85A, 85F) Q2L (G1I, G1U) |
| Model (Year) |
|---|
|
ATECA (KH7, KHP, KBP) BORN (K11) FORMENTOR (KM7, KMP) LEON (KL1, KU1, KUG) LEON Sportstourer (KL8, KU8, KUD) TAVASCAN (KR1) TERRAMAR (KP1) |
| Model (Year) |
|---|
|
CAPRI (CX740L) TOURNEO CONNECT / GRAND TOURNEO CONNECT V761 MPV (SK) TRANSIT CONNECT V761 Box Body/MPV (SKN) |
| Model (Year) |
|---|
|
EXPLORER (CX740) |
| Model (Year) |
|---|
|
ARONA (KJ7, KJP) ATECA (KH7, KHP) IBIZA V (KJ1, KJG) LEON (5F1) LEON (KL1, KLG) LEON Hatchback Van (5F1) LEON SC (5F5) LEON Sportstourer (KL8, KLD) LEON ST (5F8) LEON ST Estate Van (5F8) TARRACO (KN2) |
| Model (Year) |
|---|
|
ELROQ (PYL) ENYAQ iV Coupe (5AC) FABIA IV (PJ3) KAMIQ (NW4) KAROQ (NU7, ND7) KODIAQ I (NS6, NS7, NV7) KODIAQ II (PS7) KUSHAQ SUV (PA1) OCTAVIA III (5E3, NL3, NR3) OCTAVIA III Combi (5E5, 5E6) OCTAVIA IV (NX3, NN3, PV3) OCTAVIA IV Combi (NX5) OCTAVIA IV Combi (NX5, PV5) OCTAVIA V (NX3) SCALA (NW1) SUPERB III (3V3) SUPERB III Estate (3V5) SUPERB IV (NZ3) SUPERB IV Estate (NZ5) |
| Model (Year) |
|---|
|
ARTEON (3H7, 3H8) ARTEON SHOOTING BRAKE (3H9) CADDY CALIFORNIA V Camper (SBB, SBJ) CADDY V Box Body/MPV (SBA, SBH) CADDY V MPV (SBB, SBJ) GOLF ALLTRACK VII Variant (BA5, BV5) GOLF ALLTRACK VIII (CG5) GOLF SPORTSVAN VII (AM1, AN1) GOLF VAN VII Variant (BA5) GOLF VII (5G1, BQ1, BE1, BE2) GOLF VII (5G1, BQ1, BE1, BE2, BC1, BC2) GOLF VII Van (5G1) GOLF VII Variant (BA5, BV5) GOLF VII Variant (BA5, BV5) | JETTA GOLF VII Variant (BA5, BV5, BX5) GOLF VIII (CD1, DA1) GOLF VIII Variant (CG5, DB5) ID.3 (E11, E12) ID.4 (E21) ID.5 (E39) ID.7 (ED2) ID.7 Tourer (ED5) JETTA VII Saloon (BU3, BU4) JETTA VII Saloon (BU3, BU4, BU5) PASSAT ALLTRACK B8 Variant (3G5, CB5) PASSAT B8 (3G2, CB2) PASSAT B8 Variant (3G5, CB5) PASSAT B9 Variant (CJ5) POLO VI (AW1, BZ1, AE1) T-CROSS (C11, D31) T-ROC (A11, D11) T-ROC Convertible (AC7, AC8) TAIGO (CS1) TAIGUN (CW1) TAOS (CL1, CP1, CQ1) TAYRON (R41) TIGUAN (AD1, AX1) TIGUAN (CT1) TIGUAN ALLSPACE (BW2, BJ2) TOURAN (5T1) | GOLF TOURAN TOURAN Box Body/MPV (5T1) VIRTUS Saloon (BZ2) |
