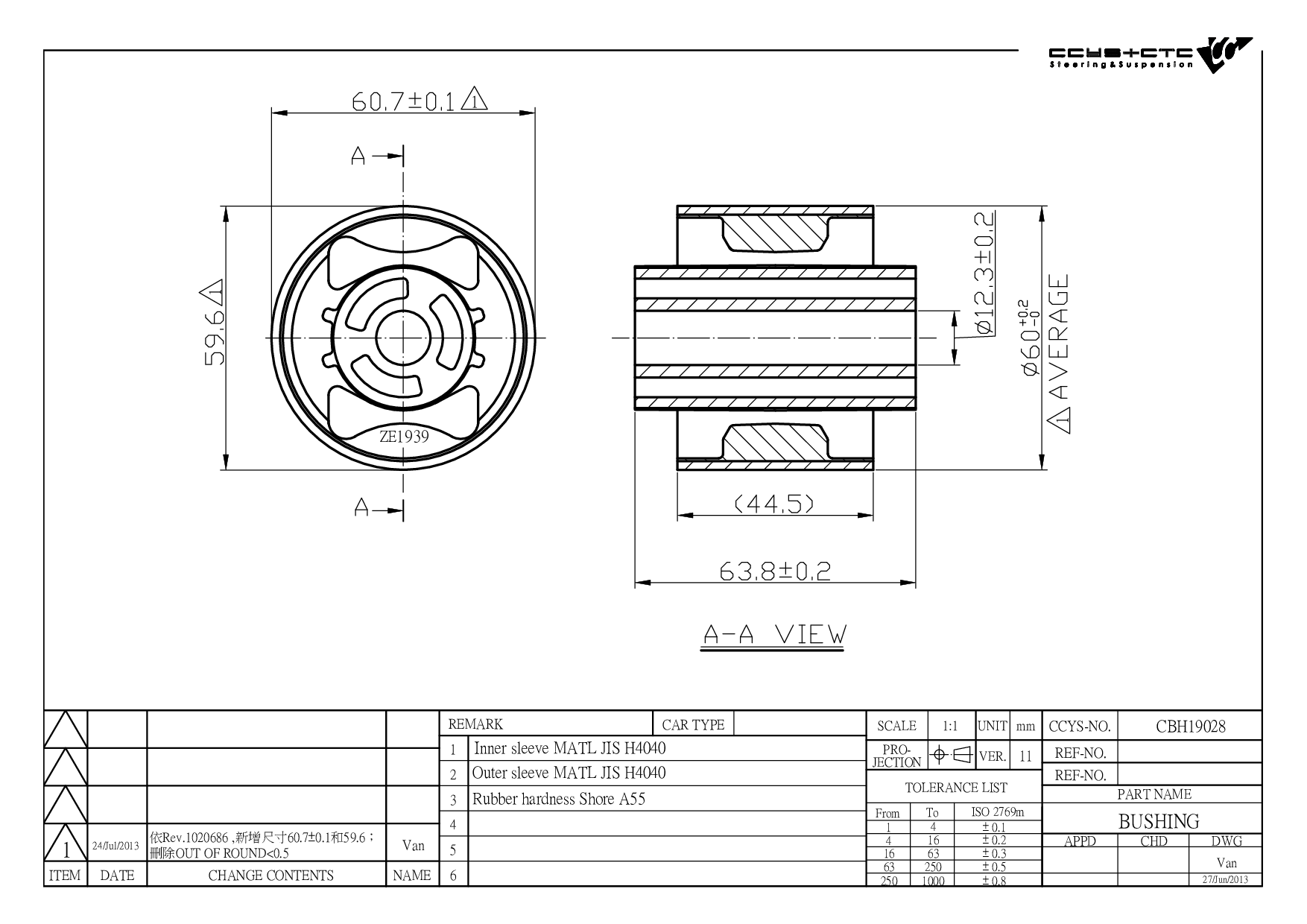

CBH19028
| Designation | Rubber Bushing |
| Position | REAR AXLE |
| OE No. | 1K0 505 541B / 1K0 505 541C / 1K0 505 541D / 3C0 505 223E / 3C0 505 541 / 5C0 501 541 / 5C0 501 541A / 5Q0 505 223 / 5Q0 505 223D / 5Q0 505 224 / 5Q0 505 224D / 5Q0 505 541A / 5QM 505 223 / 5QM 505 224 / 6R0 505 223 / 6R0 505 224 / M112919310 / M112919320 / M112919350 |
| Length | 60 mm |
| Width | 60 mm |
| Height | 63.8 mm |
| Net Weight | 0.16 kg |
AUDI (FAW) A3 Limousine (85S, 85M) 35 TFSI Engine Code CSSA Construction Year to07.2014
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19023 | REAR ARM | 1K0 505 553 1K0 505 553A 1KD 505 553 3C0 505 553 |
|
 |
CBH19028 | REAR AXLE | 1K0 505 541B 1K0 505 541C 1K0 505 541D 3C0 505 223E 3C0 505 541 5C0 501 541 5C0 501 541A 5Q0 505 223 5Q0 505 223D 5Q0 505 224 5Q0 505 224D 5Q0 505 541A 5QM 505 223 5QM 505 224 6R0 505 223 6R0 505 224 M112919310 M112919320 M112919350 |
|
 |
CBH20017 | FRONT LOWER ARM INNER | 1K0 407 182 1K0 407 182A 1K0 407 182F 1KD 407 182 5Q0 407 182 5Q0 407 182A |
|
 |
CBJ20008LA | FRONT LOWER LH | 1K0 407 365B 1K0 407 365C 1K0 407 365E 1KD 407 365 5Q0 073 365A 5Q0 407 365A 5WA 407 365 |
|
 |
CBJ20008RA | FRONT LOWER RH | 1K0 407 366B 1K0 407 366C 1K0 407 366E 1KD 407 366 5Q0 073 366A 5Q0 407 366A 5WA 407 366 |
|
 |
CRE20013 | D= M16X1.5 , C= M16X1.5 | 1K0 423 810A 1K0 423 810E 3C0 423 810A |
|
 |
CS-1932 | REAR LOWER LH/ RH | 1K0 505 311 1K0 505 311 AA 1K0 505 311 H 1K0 505 311 J 1K0 505 311 R 1K0 505 311 S 1K0 505 311 T 1K0 505 311AB |
|
 |
CS-1939L | REAR UPPER LH | 1K0 505 223E 1K0 505 223F 1K0 505 223G 1K0 505 223H 1K0 505 223K 1K0 505 223L 1T0 505 223A 1T0 505 223D 1T0 505 223F |
|
 |
CS-1939R | REAR UPPER RH | 1K0 505 224E 1K0 505 224F 1K0 505 224G 1K0 505 224H 1K0 505 224K 1K0 505 224L 1T0 505 224A 1T0 505 224D 1T0 505 224F |
|
 |
CS-2026 | REAR UPPER LH/ RH | 1K0 505 323D 1K0 505 323G 1K0 505 323H 1K0 505 323M 1K0 505 323N 1K0 505 323P 5Q0 505 323C 5Q0 505 323D |
|
 |
CS-2029L | FRONT LOWER LH | 1K0 407 151 AA 1K0 407 151 AB 1K0 407 151 AE 1K0 407 151 AH 1K0 407 151 BC 1K0 407 151 BD 1K0 407 151 N 1K0 407 151 P 1K0 407 151Q |
|
 |
CS-2029R | FRONT LOWER RH | 1K0 407 152 AA 1K0 407 152 AB 1K0 407 152 AE 1K0 407 152 AH 1K0 407 152 BC 1K0 407 152 BD 1K0 407 152 N 1K0 407 152 P 1K0 407 152Q |
|
 |
CSL19021 | REAR AXLE LH/RH | 1K0 505 465AA 1K0 505 465C 1K0 505 465J 1K0 505 465K 1K0 505 465R 1KD 505 465A 1KD 505 465C |
|
 |
CSL20014D1 | FRONT (A= 334MM) | 1K0 411 315B 1K0 411 315D 1K0 411 315E 1K0 411 315G 1K0 411 315J 1K0 411 315K 1K0 411 315P 1K0 411 315R 1KD 411 315 1KD 411 315A 3QG 411 315A 5Q0 411 315 5Q0 411 315A 5Q0 411 315B 5Q0 411 315C 5Q0 411 315D 5QD 411 315 5QM 411 315 |
|
 |
CTE20001L | FRONT AXLE LH (C= M16X1.5) | 1K0 423 803 A 1K0 423 811A 1K0 423 811B 1K0 423 811C 1K0 423 811E 1K0 423 811F 1K0 423 811G 1K0 423 811J 1K0 423 811K 1K1 423 051 CL 1K1 423 051 CN 1K1 423 070 X 2QB 423 811 3C0 423 811 B |
|
 |
CTE20001R | FRONT AXLE RH (C= M16X1.5) | 1K0 423 804 A 1K0 423 812A 1K0 423 812B 1K0 423 812C 1K0 423 812E 1K0 423 812F 1K0 423 812G 1K0 423 812J 1K0 423 812K 1K1 423 051 CL 1K1 423 051 CN 1K1 423 070 X 2QB 423 812 3C0 423 812 B |
| Model (Year) |
|---|
|
A1 (8X1, 8XK) A1 Sportback (8XA, 8XF) A3 (8P1) | A3 / S3 A3 (8V1, 8VK) | A3 / S3 A3 Convertible (8P7) A3 Convertible (8V7, 8VE) A3 Limousine (8VS, 8VM) | A3 / S3 A3 Limousine (8YS, 8YM) A3 Sportback (8PA) A3 Sportback (8VA, 8VF) A3 Sportback (8YA, 8YF) Q2 (GAB, GAG) Q3 (8UB, 8UG) TT (8J3) TT (FV3, FVP) TT Roadster (8J9) TT Roadster (FV9, FVR) |
| Model (Year) |
|---|
|
A3 Limousine (85S, 85M) A3 Sportback (85A, 85F) Q3 (84B, 84G) |
| Model (Year) |
|---|
|
ATECA (KH7, KHP, KBP) FORMENTOR (KM7, KMP) |
| Model (Year) |
|---|
|
ALTEA (5P1) ALTEA XL (5P5, 5P8) ATECA (KH7, KHP) LEON (1P1) LEON (5F1) LEON (KL1, KLG) LEON SC (5F5) LEON Sportstourer (KL8, KLD) LEON ST (5F8) TOLEDO III (5P2) |
| Model (Year) |
|---|
|
KAROQ (NU7, ND7) OCTAVIA II (1Z3) OCTAVIA II Combi (1Z5) OCTAVIA III (5E3, NL3, NR3) OCTAVIA III Combi (5E5, 5E6) OCTAVIA IV (NX3, NN3, PV3) OCTAVIA IV Combi (NX5, PV5) SUPERB II (3T4) SUPERB II Estate (3T5) SUPERB III (3V3) SUPERB III Estate (3V5) YETI (5L) |
| Model (Year) |
|---|
|
BEETLE (5C1, 5C2) | BJALLA EOS (1F7, 1F8) GOLF PLUS V (5M1, 521) GOLF V (1K1) GOLF V Variant (1K5) | BORA / JETTA GOLF VI (5K1) GOLF VI Convertible (517) GOLF VI Variant (AJ5) | JETTA /JETTA WAGON GOLF VII (5G1, BQ1, BE1, BE2) GOLF VII Variant (BA5, BV5) | JETTA JETTA III (1K2) JETTA IV (162, 163, AV3, AV2) SCIROCCO III (137, 138) TIGUAN (5N_) TOURAN (1T1, 1T2) |
