Rubber Bushing

Rubber Bushing / CBH19023

AUDI A3 Engine Code (DDYA,CUNA,CXUA) . SEAT ALHAMBRA Engine Code (CFGC,CUWA,CXXB,CRKB,CRVA) . SKODA Engine Code (CKFC,DCYA,CRMB) . VW Engine Code (CRLB,DCYA,CRBC,AZV,CLHB,CXXA,CRKA,CRKB,CRLB,CRBC,CRLB,CMXA,CUKB,CKFC,DCYA)

Rubber Bushing/AUDI/SEAT/SKODA/VOLKSWAGEN/A3 (8P1)/A3 Sportback (8PA)/ALTEA (5P1)/CADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH)/CADDY III MPV (2KB, 2KJ, 2CB, 2CJ)/GOLF V (1K1)/GOLF VI (5K1)/LEON (1P1)/OCTAVIA II (1Z3)/PASSAT B6 (3C2) | PASSAT / Magotan/TOUR

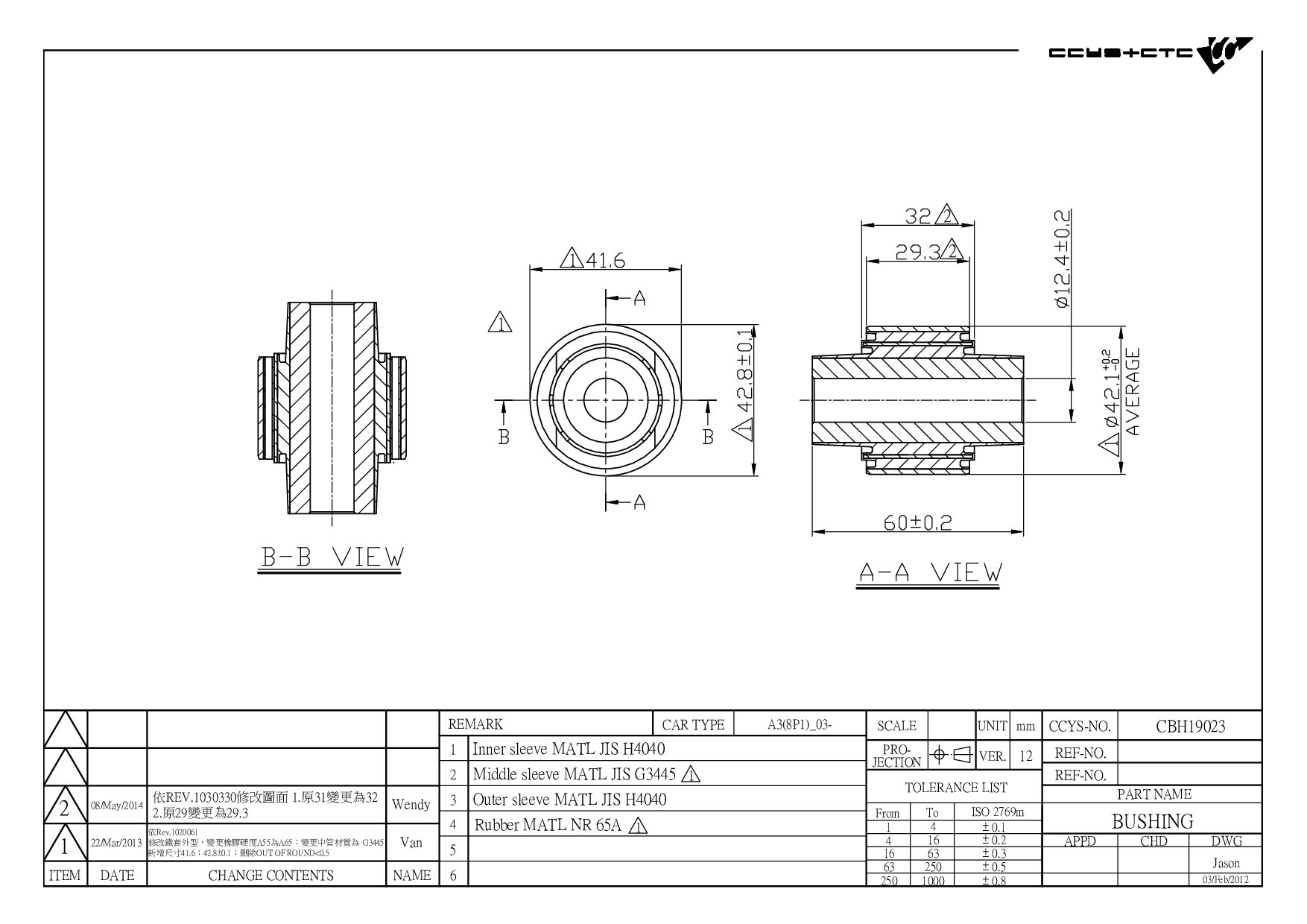

Technical Specification Matrix

CBH19023 是 Rubber Bushing 專用的 橡膠襯套 (Rear Axle; both sides; Rear; Lower; outer)。 本產品為 OEM 規格替代零件，適配原廠料號 1K0 505 553,1K0 505 553A,1KD 505 553,3C0 505 553。
更多相關商品
PARAMETER METRIC / VALUE
Designation Rubber Bushing
Position Rear Axle; both sides; Rear; Lower; outer
OE 替代料號 (Original Equipment Numbers)
  • 1K0 505 553
  • 1K0 505 553A
  • 1KD 505 553
  • 3C0 505 553
Length 42 mm
Width 60 mm
Height 0 mm
Net Weight 0.1 kg

Find More Auto Parts

快速找到適配您需要的專業零件

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

Compatible Models

CTE No. DESIGNATION POSITION OE No.
CBH19023 REAR AXLE; BOTH SIDES; REAR; LOWER; OUTER
  • 1K0 505 553
  • 1K0 505 553A
  • 1KD 505 553
  • 3C0 505 553
CBH20009 FRONT AXLE; BOTH SIDES; REAR; LOWER
  • 3C0 199 231A
  • 3C0 199 231B
  • 3C0 199 231D
  • 3C0 199 231E
  • 3C0 199 231F
CBH20017 FRONT AXLE LEFT; INNER; FRONT; FRONT AXLE RIGHT
  • 1K0 407 182
  • 1K0 407 182A
  • 1K0 407 182F
  • 1KD 407 182
  • 5Q0 407 182
  • 5Q0 407 182A
CBH20019 REAR AXLE; UPPER; BOTH SIDES; OUTER
  • 1K0 505 203A
CBH20020 REAR AXLE; UPPER; BOTH SIDES; INNER
  • 1K0 505 279A
CBJ20007LA FRONT AXLE LEFT; LOWER
  • 35D 407 365
  • 3C0 407 365A
  • 3C0 407 365B
  • 5QD 407 365
  • 5QD 407 365A
CBJ20007RA FRONT AXLE RIGHT; LOWER
  • 35D 407 366
  • 3C0 407 366A
  • 5QD 407 366
  • 5QD 407 366A
CS-1932 REAR AXLE LEFT; REAR AXLE RIGHT; LOWER; REAR
  • 1K0 505 311
  • 1K0 505 311 AA
  • 1K0 505 311 H
  • 1K0 505 311 J
  • 1K0 505 311 R
  • 1K0 505 311 S
  • 1K0 505 311 T
  • 1K0 505 311AB
CS-2022 FRONT AXLE LEFT; FRONT AXLE RIGHT; LOWER
  • 3C0 407 151A
  • 3C0 407 151B
  • 3C0 407 151E
  • 3C0 407 151G
  • 3C0 407 151H
  • 5N0 407 151B
CS-2023L FRONT AXLE LEFT; FRONT AXLE RIGHT; LOWER
  • 3C0 407 151A
  • 3C0 407 365A
  • CS-2022+CBJ20007LA
CS-2023R FRONT AXLE LEFT; FRONT AXLE RIGHT; LOWER
  • 3C0 407 151A
  • 3C0 407 366A
  • CS-2022+CBJ20007RA
CS-2026 REAR AXLE; BOTH SIDES; FRONT; UPPER
  • 1K0 505 323D
  • 1K0 505 323G
  • 1K0 505 323H
  • 1K0 505 323M
  • 1K0 505 323N
  • 1K0 505 323P
  • 5Q0 505 323C
  • 5Q0 505 323D
CS-2027L REAR AXLE LEFT; FRONT
  • 1K0 501 529E
  • 1K0 501 529F
  • 7N0 501 529
CS-2027R REAR AXLE; FRONT; RIGHT
  • 1K0 501 530B
  • 1K0 501 530C
  • 7N0 501 530
CS-2039L FRONT AXLE LEFT
  • 5N0 407 151
CS-2039R FRONT AXLE RIGHT
  • 5N0 407 152
CS-2054 REAR AXLE RIGHT; UPPER; REAR AXLE LEFT
  • 1KD 505 323C
CSL19021 REAR AXLE LEFT; REAR AXLE RIGHT
  • 1K0 505 465AA
  • 1K0 505 465C
  • 1K0 505 465J
  • 1K0 505 465K
  • 1K0 505 465R
  • 1KD 505 465A
  • 1KD 505 465C
CSL20014D1 FRONT AXLE LEFT; FRONT AXLE RIGHT (A= 334MM)
  • 1K0 411 315B
  • 1K0 411 315D
  • 1K0 411 315E
  • 1K0 411 315G
  • 1K0 411 315J
  • 1K0 411 315K
  • 1K0 411 315P
  • 1K0 411 315R
  • 1KD 411 315
  • 1KD 411 315A
  • 3QG 411 315A
  • 5Q0 411 315
  • 5Q0 411 315A
  • 5Q0 411 315B
  • 5Q0 411 315C
  • 5Q0 411 315D
  • 5QD 411 315
  • 5QM 411 315
Model (Year)
A1 (8X1, 8XK)
A1 Sportback (8XA, 8XF)
A3 (8P1) | A3 / S3
A3 (8V1, 8VK) | A3 / S3
A3 Convertible (8P7)
A3 Convertible (8V7, 8VE)
A3 Limousine (8VS, 8VM)
A3 Limousine (8VS, 8VM) | A3 / S3
A3 Sportback (8PA)
A3 Sportback (8VA, 8VF)
Q3 (8UB, 8UG)
TT (8J3)
TT Roadster (8J9)
Model (Year)
ALHAMBRA (710, 711)
ALHAMBRA VAN (711)
ALTEA (5P1)
ALTEA XL (5P5, 5P8)
LEON (1P1)
LEON (5F1)
LEON Hatchback Van (5F1)
LEON SC (5F5)
LEON ST (5F8)
LEON ST Estate Van (5F8)
TOLEDO III (5P2)
Model (Year)
BEETLE (5C1, 5C2) | BJALLA
BEETLE Convertible (5C7, 5C8)
CADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH)
CADDY III MPV (2KB, 2KJ, 2CB, 2CJ)
CC B7 (358)
EOS (1F7, 1F8)
GOLF ALLTRACK VII Variant (BA5, BV5)
GOLF PLUS V (5M1, 521)
GOLF PLUS Van (521)
GOLF SPORTSVAN VII (AM1, AN1)
GOLF V (1K1)
GOLF V Variant (1K5) | BORA / JETTA
GOLF VAN VI Variant (AJ5)
GOLF VAN VII Variant (BA5)
GOLF VI (5K1)
GOLF VI Convertible (517)
GOLF VI Van (5K1)
GOLF VI Variant (AJ5) | JETTA /JETTA WAGON
GOLF VII (5G1, BQ1, BE1, BE2)
GOLF VII (5G1, BQ1, BE1, BE2, BC1, BC2)
GOLF VII Van (5G1, BQ1)
GOLF VII Variant (BA5, BV5) | JETTA
GOLF VII Variant (BA5, BV5, BX5)
JETTA III (1K2)
JETTA IV (162, 163, AV3, AV2)
JETTA VII Saloon (BU3, BU4)
JETTA VII Saloon (BU3, BU4, BU5)
PASSAT ALLTRACK B7 Variant (365)
PASSAT B6 (3C2) | PASSAT / Magotan
PASSAT B6 Variant (3C5)
PASSAT B7 (362)
PASSAT B7 (A32, A33)
PASSAT B7 Estate Van (365)
PASSAT B7 Variant (365) | MAGOTAN
PASSAT CC B6 (357)
SCIROCCO III (137, 138)
SCIROCCO Van (137)
SHARAN (7N1, 7N2)
SHARAN Box Body/MPV (7N1, 7N2)
TIGUAN (5N_)
TIGUAN VAN (5N_)
TOURAN (1T1, 1T2)
TOURAN (1T3) | GOLF TOURAN
TOURAN Box Body/MPV (1T1, 1T2)
TOURAN Box Body/MPV (1T3)
Model (Year)
OCTAVIA Hatchback (913)
Model (Year)
OCTAVIA II (1Z3)
OCTAVIA II Combi (1Z5)
OCTAVIA III (5E3, NL3, NR3)
OCTAVIA III Combi (5E5, 5E6)
SUPERB II (3T4)
SUPERB II Estate (3T5)
YETI (5L)
