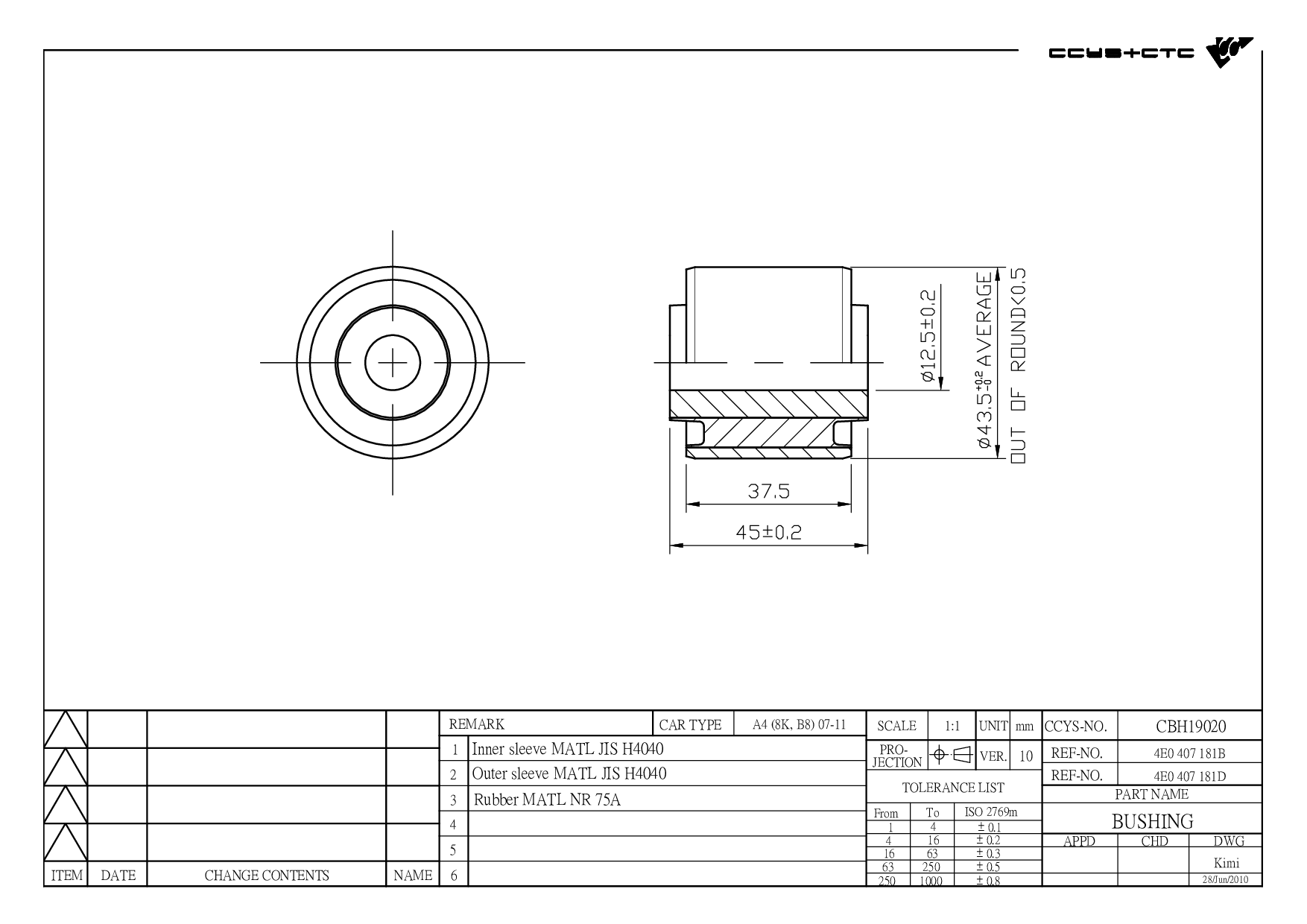

CBH19020
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM OUTER |
| OE No. | 80A 407 181 |
| Length | 45 mm |
| Width | 43.5 mm |
| Height | 43.5 mm |
| Net Weight | 0.29 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19019 | FRONT LOWER ARM INNER | 8K0 407 182A 8K0 407 182B |
|
 |
CBH19020 | FRONT LOWER ARM OUTER | 80A 407 181 |
|
 |
CBH19027 | FRONT LOWER ARM REAR | 8K0 407 183 8K0 407 183D 8K0 407 183F 8K0 407 183G |
|
 |
CBH19034 | FRONT LOWER ARM | 8W0 407 693A 8W0 407 693B 8W0 407 694A 8W0 407 694B 8WD 407 693 8WD 407 694 |
|
 |
CBH19035 | FRONT UPPER ARM | 4N0 407 515 8W0 407 515 |
|
 |
CBJ19012 | FRONT LOWER LH/RH | 4G0 407 689A 4G0 407 689C 8W0 407 689A 8W0 407 689B PAB 407 689 |
|
 |
COS19022 | FRONT | ||
 |
CS-1955L | FRONT LOWER LH | 8W0 407 151 A 8W0 407 151 B 8W0 407 151 C 8W0 407 151 D 8WD 407 151 |
|
 |
CS-1955R | FRONT LOWER RH | 8W0 407 152 A 8W0 407 152 B 8W0 407 152 C 8W0 407 152 D 8WD 407 152 |
|
 |
CS-1956L | FRONT LOWER LH | 8W0 407 693 A 8W0 407 693 B 8WD 407 693 |
|
 |
CS-1956R | FRONT LOWER RH | 8W0 407 694 A 8W0 407 694 B 8WD 407 694 |
|
 |
CS-1957L | FRONT UPPER LH | 8W0 407 505 A 8W0 407 505 C 8W0 407 505 E 8WD 407 505 |
|
 |
CS-1957R | FRONT UPPER RH | 8W0 407 506 A 8W0 407 506 C 8W0 407 506 E 8WD 407 506 |
|
 |
CS-1958L | FRONT UPPER LH | 8W0 407 509 A 8W0 407 509 B 8W0 407 509 E 8WD 407 509 |
|
 |
CS-1958R | FRONT UPPER RH | 8W0 407 510 A 8W0 407 510 B 8W0 407 510 E 8WD 407 510 |
|
 |
CS-1968L | FRONT LOWER LH | ||
 |
CS-1968R | FRONT LOWER RH | ||
 |
CS-1969L | FRONT LOWER LH | ||
 |
CS-1969R | FRONT LOWER RH | ||
 |
CS-1970L | FRONT UPPER LH | ||
 |
CS-1970R | FRONT UPPER RH | ||
 |
CS-1971L | FROTN UPPER LH | ||
 |
CS-1971R | FRONT UPPER RH | ||
 |
CS-1974L | FRONT UPPER LH | ||
 |
CS-1974R | FRONT UPPER RH | ||
 |
CS-1975L | FRONT UPPER LH | ||
 |
CS-1975R | FRONT UPPER RH | ||
 |
CS-1982L | FRONT LOWER LH | 8W0 407 693 A 8W0 407 693 B 8WD 407 693 |
|
 |
CS-1982R | FRONT LOWER RH | 8W0 407 694 A 8W0 407 694 B 8WD 407 694 |
|
 |
CSL19018 | FRONT (A= 170MM) | 4G0 411 317A 4H0 411 317A 4H0 411 317C 4M0 411 317 4M0 411 317D 4M0 411 317J 4M0 411 317L 8K0 411 317A 8K0 411 317C 8K0 411 317D 8K0 411 317D S1 8K0 411 317E 8K0 411 318E 8KD 407 317E |
| Model (Year) |
|---|
|
A4 Allroad B8 (8KH) A4 B8 (8K2) | A4 / S4 A4 B8 Avant (8K5) A4 B9 (8W2, 8WC) A4 B9 Avant (8W5, 8WD) A5 (8T3) | A5 / S5 A5 Convertible (8F7) | A5 / S5 A5 Sportback (8TA) | A5 / S5 A6 Allroad C6 (4FH) A6 Allroad C7 (4GH, 4GJ) A6 C6 (4F2) | A6 / S6 A6 C6 Avant (4F5) A6 C7 (4G2, 4GC) | A6 / S6 A6 C7 Avant (4G5, 4GD) A7 Sportback (4GA, 4GF) | A7 / S7 A8 D3 (4E2, 4E8) | A8 / S8 | A8L A8 D3 (4E2, 4E8) | A8L A8 D4 (4H2, 4H8, 4HC, 4HL) | A8 / S8 | A8L Q5 (8RB) |
| Model (Year) |
|---|
|
BENTAYGA (4V1) |
| Model (Year) |
|---|
|
MACAN (95B) |
| Model (Year) |
|---|
|
PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) |
