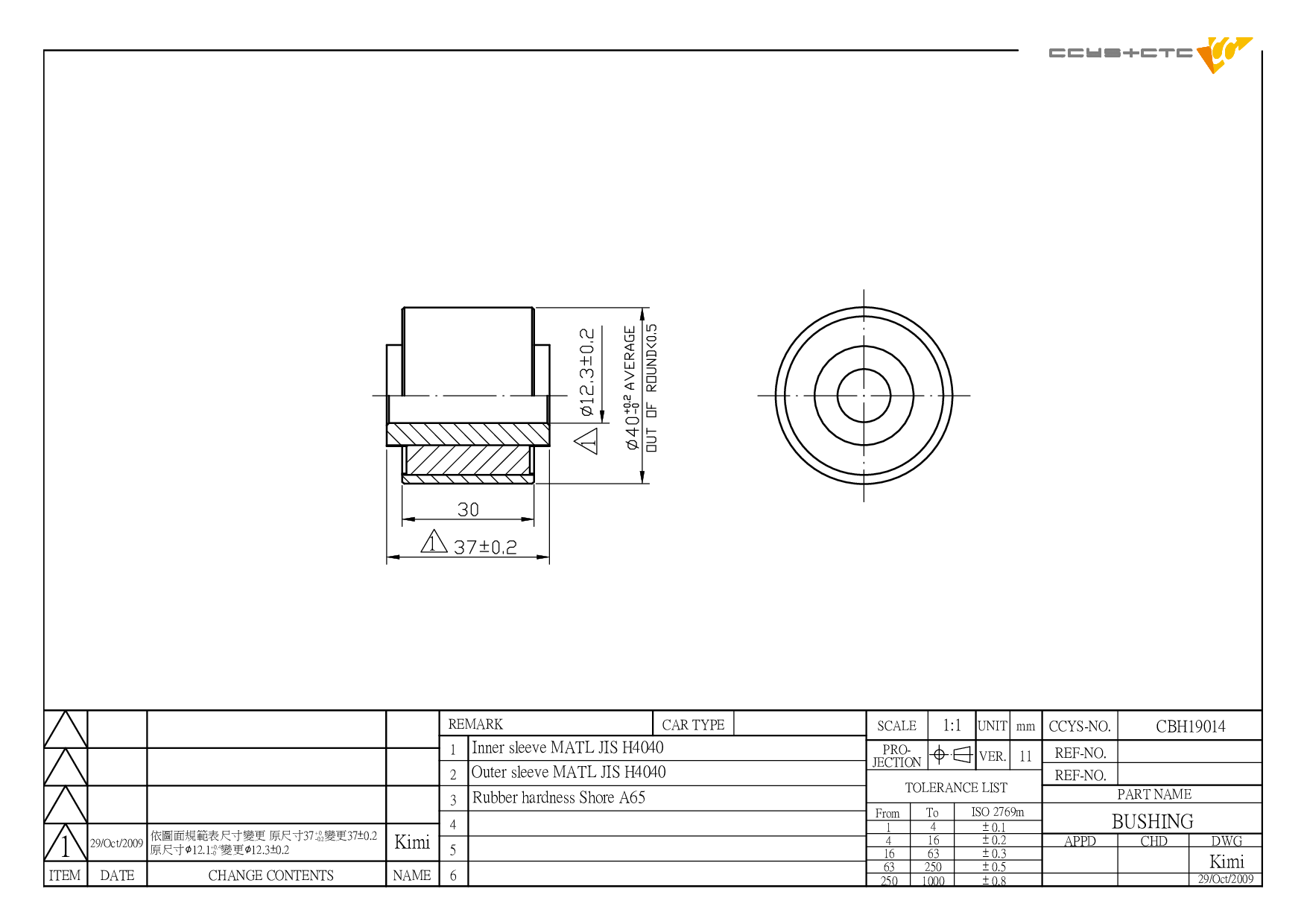

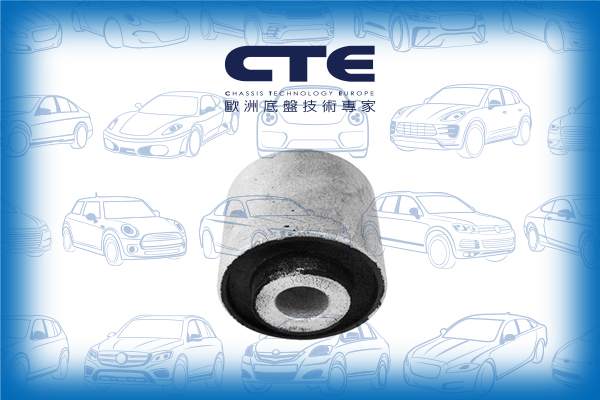

CBH19014
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM OUTER |
| OE No. | |
| Length | 37 mm |
| Width | 40 mm |
| Height | 40 mm |
| Net Weight | 0.07 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19006 | FRONT UPPER ARM INNER | 4B0 407 515 4D0 407 515C |
|
 |
CBH19008 | FRONT LOWER ARM INNER | 4D0 407 182E 4D0 407 182G 8E0 407 182A |
|
 |
CBH19010 | FRONT LOWER ARM INNER | 4D0 407 183AA 4D0 407 183AB 4D0 407 183AC 4D0 407 183M 4D0 407 183N 4D0 407 183P 4D0 407 183Q 4E0 407 183A 4E0 407 183H 4F0 407 183C |
|
 |
CBH19014 | FRONT LOWER ARM OUTER | ||
 |
CBH19018 | FRONT UPPER ARM INNER | 8D0 407 151A 8D0 407 151B 8D0 407 151C 8D0 407 515A 8D0 407 515B 8D0 407 515C |
|
 |
CRE19001 | D= M14X1.5 , C= M16X1.5 | 4D0 422 821 |
|
 |

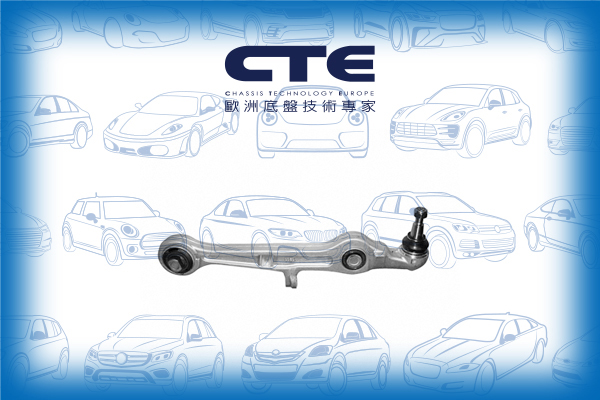

CS-1911 | FRONT LOWER LH/ RH | 8E0 407 151E 8E0 407 151K 8E0 407 151L 8E0 407 151M 8E0 407 151N 8E0 407 151R |
|
 |
CS-1912L | FRONT LOWER LH | 4D0 407 693A 4D0 407 693AC 4D0 407 693AD 4D0 407 693C 4D0 407 693E 4D0 407 693G 4D0 407 693H 4D0 407 693K 4D0 407 693M 4D0 407 693N 8E0 407 693 8E0 407 693AG 8E0 407 693E 8E0 407 693K 8E0 407 693P 8E0 407 693Q |
|
 |
CS-1912R | FRONT LOWER RH | 4D0 407 694A 4D0 407 694AC 4D0 407 694AD 4D0 407 694C 4D0 407 694E 4D0 407 694G 4D0 407 694H 4D0 407 694K 4D0 407 694M 4D0 407 694N 8E0 407 694 8E0 407 694AG 8E0 407 694E 8E0 407 694K 8E0 407 694P 8E0 407 694Q |
|
 |
CS-1913L | FRONT UPPER LH | 8E0 407 509A |
|
 |
CS-1913R | FRONT UPPER RH | 8E0 407 510A |
|
 |
CS-1914L | FRONT UPPER LH | 8E0 407 505A |
|
 |
CS-1914R | FRONT UPPER RH | 8E0 407 506A |
|
 |
CS-1922L | FRONT UPPER LH | 8D0 407 509 8D0 407 509A 8D0 407 509F 8E0 407 509C 8E0 407 509P |
|
 |
CS-1922R | FRONT UPPER RH | 8D0 407 510 8D0 407 510A 8D0 407 510F 8E0 407 510C 8E0 407 510P |
|
 |
CS-1923L | FRONT UPPER LH | 8D0 407 505D 8D0 407 505E 8D0 407 505L 8E0 407 505C 8E0 407 505M 8E0 407 505P |
|
 |
CS-1923R | FRONT UPPER RH | 8D0 407 506D 8D0 407 506E 8D0 407 506L 8E0 407 506C 8E0 407 506M 8E0 407 506P |
|
 |
CS-1929 | REAR AXLE LH/ RH | 8E0 501 529F 8E0 501 529G 8E0 501 529K 8E0 501 529P |
|
 |
CSL19014L | FRONT LH (A= 90MM) | 8E0 411 317 |
|
 |
CSL19014LA | FRONT LH (A= 90MM) | 8E0 411 317 |
|
 |
CSL19014R | FRONT RH (A= 90MM) | 8E0 411 318 |
|
 |
CSL19014RA | FRONT RH (A= 90MM) | 8E0 411 318 |
|
 |
CSR19001 | FRONT AXLE LH/ RH | 4D0 419 801B 4D0419801B 4D0419801C 4D0419801E 4D0419801L 4D0419801M |
|
 |
CTE19002 | FRONT AXLE LH/ RH (C= M14X1.5) | 4B0 419 811G 4B0 419 811Q 4D0 419 811J 4F0 419 811C 4F0 419 811D 4F0 498 811 4F0 498 811A 4F0 498 811A SK 8B0 419 811G 8E0 419 811 |
|
 |
CTE19003 | FRONT AXLE LH/ RH (C= M14X1.5) | 8E0 419 811B |
| Model (Year) |
|---|
|
A4 B6 (8E2) | A4 / S4 A4 B6 Avant (8E5) | A4 / S4 |
