Name: CBH19009
Brand: CTE
SKU: CBH19009
Price: 281.00 TWD
Availability: InStock

Rubber Bushing/AUDI/VOLKSWAGEN/A4 B5 (8D2)/A4 B5 Avant (8D5)/A6 C5 (4B2)/A6 C5 Avant (4B5)/A8 D2 (4D2, 4D8)/PASSAT B5 (3B2)/PASSAT B5.5 (3B3)

CBH19009

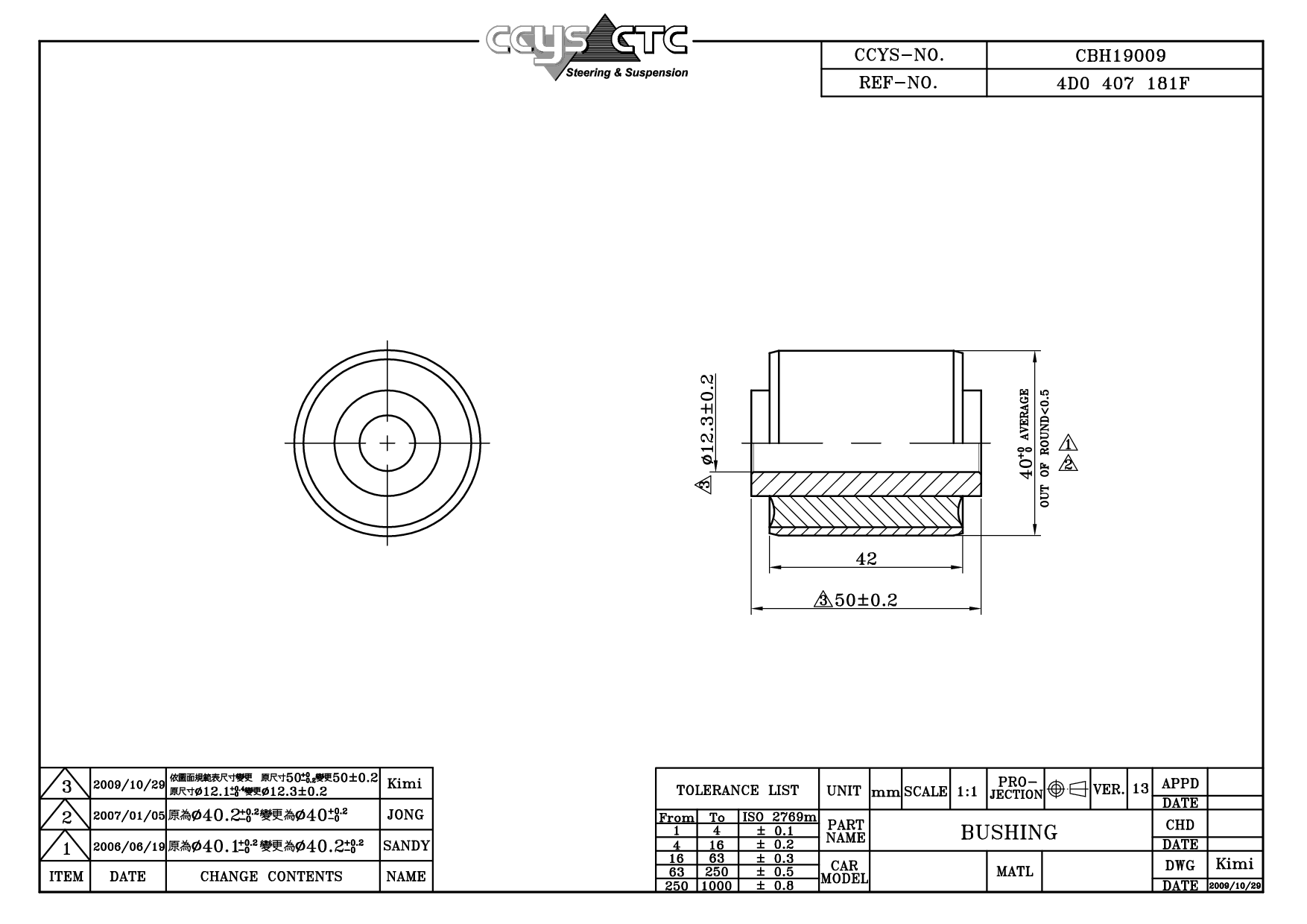

Designation	Rubber Bushing
Position	FRONT LOWER ARM OUTER
OE No.	4D0 407 181F 4D0 407 181H
Length	50 mm
Width	40 mm
Height	40 mm
Net Weight	0.08 kg

Audi (4B2) Construction Year to 08.2001

CTE No.	POSITION	OE NO.
CBH19006	FRONT UPPER ARM INNER	4B0 407 515 4D0 407 515C
CBH19008	FRONT LOWER ARM INNER	4D0 407 182E 4D0 407 182G 8E0 407 182A
CBH19009	FRONT LOWER ARM OUTER	4D0 407 181F 4D0 407 181H
CBH19010	FRONT LOWER ARM INNER	4D0 407 183AA 4D0 407 183AB 4D0 407 183AC 4D0 407 183M 4D0 407 183N 4D0 407 183P 4D0 407 183Q 4E0 407 183A 4E0 407 183H 4F0 407 183C
CBH19018	FRONT UPPER ARM INNER	8D0 407 151A 8D0 407 151B 8D0 407 151C 8D0 407 515A 8D0 407 515B 8D0 407 515C
CRE19001	D= M14X1.5 , C= M16X1.5	4D0 422 821
CS-1904	FRONT LOWER LH/ RH	4D0 407 151A 4D0 407 151B 4D0 407 151C 4D0 407 151D 4D0 407 151E 4D0 407 151F 4D0 407 151G 4D0 407 151H 4D0 407 151J 4D0 407 151K 4D0 407 151N 4D0 407 151P 4D0 407 155P 8D0 407 151D 8D0 407 151E 8D0 407 151F
CS-1906L	FRONT UPPER GUIDE LH	4D0 407 509B 4D0 407 509D 4D0 407 509F 4D0 407 509G 4D0 407 509H 4D0 407 509J 4D0 407 509K 8D0 407 509C 8D0 407 509E
CS-1906R	FRONT UPPER GUIDE RH	4D0 407 510B 4D0 407 510D 4D0 407 510F 4D0 407 510G 4D0 407 510H 4D0 407 510J 4D0 407 510K 8D0 407 510C 8D0 407 510E
CS-1907L	FRONT UPPER ROD LH	8D0 407 505B 8D0 407 505H
CS-1907R	FRONT UPPER ROD RH	8D0 407 506B 8D0 407 506H
CS-1912L	FRONT LOWER LH	4D0 407 693A 4D0 407 693AC 4D0 407 693AD 4D0 407 693C 4D0 407 693E 4D0 407 693G 4D0 407 693H 4D0 407 693K 4D0 407 693M 4D0 407 693N 8E0 407 693 8E0 407 693AG 8E0 407 693E 8E0 407 693K 8E0 407 693P 8E0 407 693Q
CS-1912R	FRONT LOWER RH	4D0 407 694A 4D0 407 694AC 4D0 407 694AD 4D0 407 694C 4D0 407 694E 4D0 407 694G 4D0 407 694H 4D0 407 694K 4D0 407 694M 4D0 407 694N 8E0 407 694 8E0 407 694AG 8E0 407 694E 8E0 407 694K 8E0 407 694P 8E0 407 694Q
CS-1922L	FRONT UPPER LH	8D0 407 509 8D0 407 509A 8D0 407 509F 8E0 407 509C 8E0 407 509P
CS-1922R	FRONT UPPER RH	8D0 407 510 8D0 407 510A 8D0 407 510F 8E0 407 510C 8E0 407 510P
CS-1923L	FRONT UPPER LH	8D0 407 505D 8D0 407 505E 8D0 407 505L 8E0 407 505C 8E0 407 505M 8E0 407 505P
CS-1923R	FRONT UPPER RH	8D0 407 506D 8D0 407 506E 8D0 407 506L 8E0 407 506C 8E0 407 506M 8E0 407 506P
CSL19006	FRONT (A= 87MM)	4D0 411 317D 4D0 411 317G 4D0 411 317J
CSL19011L	FRONT LH (A= 90MM)	4D0 411 317G 4D0 411 317J 8D0 411 317D
CSL19011LA	FRONT LH (A= 90MM)	4D0 411 317G 4D0 411 317J 8D0 411 317D
CSL19011R	FRONT RH (A= 90MM)	4D0 411 318G 4D0 411 318J 8D0 411 318D
CSL19011RA	FRONT RH (A= 90MM)	4D0 411 318G 4D0 411 318J 8D0 411 318D
CSR19001	FRONT AXLE LH/ RH	4D0 419 801B 4D0419801B 4D0419801C 4D0419801E 4D0419801L 4D0419801M
CTE19002	FRONT AXLE LH/ RH (C= M14X1.5)	4B0 419 811G 4B0 419 811Q 4D0 419 811J 4F0 419 811C 4F0 419 811D 4F0 498 811 4F0 498 811A 4F0 498 811A SK 8B0 419 811G 8E0 419 811
CTE19003	FRONT AXLE LH/ RH (C= M14X1.5)	8E0 419 811B
