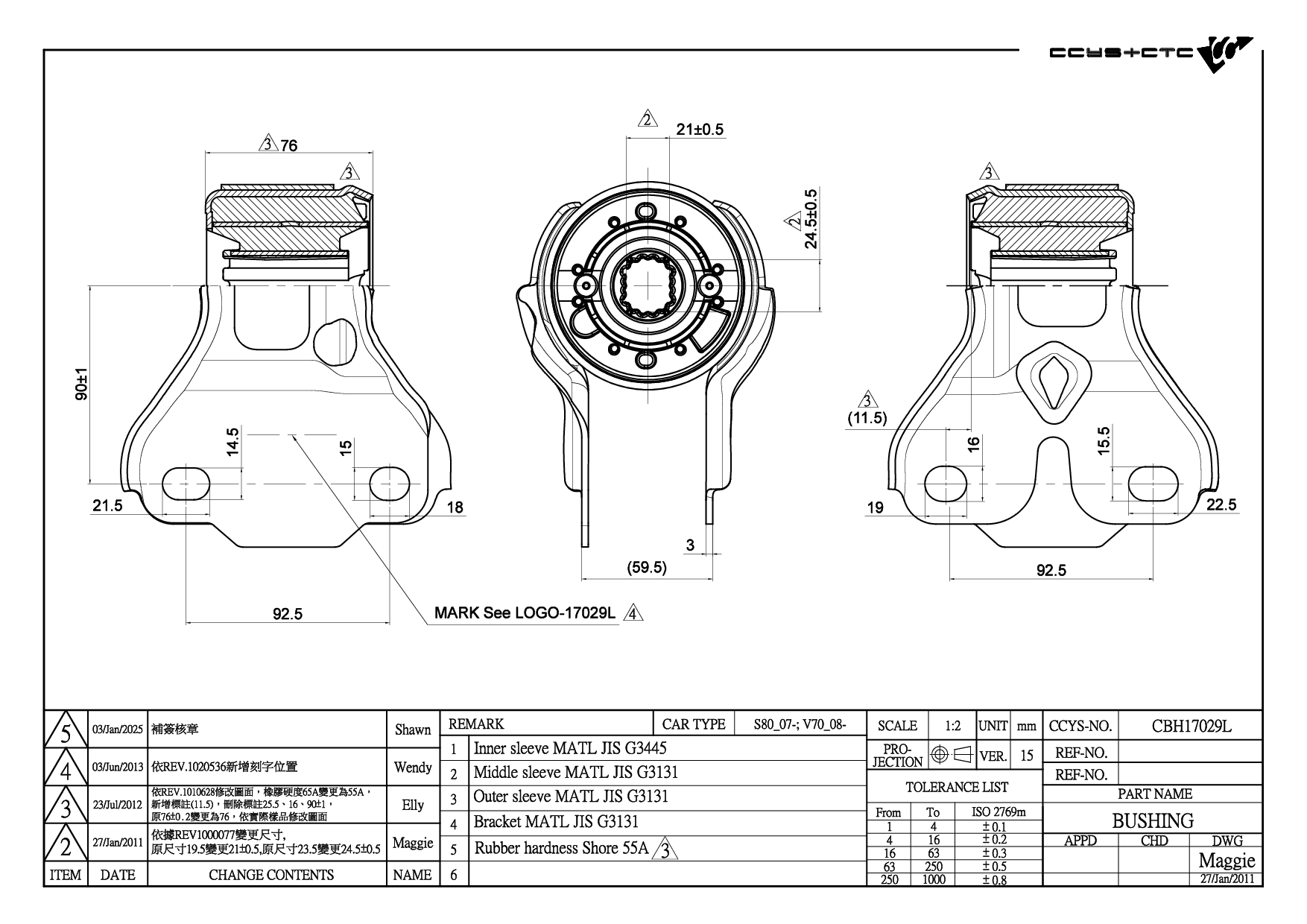

CBH17029L
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM LH REAR |
| OE No. | 31200776 |
| Length | 165 mm |
| Width | 150 mm |
| Height | 118 mm |
| Net Weight | 1.96 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03067L | FRONT LOWER ARM LH REAR | 1888630 31262475 31340128 31387571 31429321 7G9J3A262AB |
|
 |
CBH03067R | FRONT LOWER ARM RH REAR | 1883048 31262473 31340127 31387572 31429320 7G9J3A262BB |
|
 |
CBH03071 | REAR ARM | 6G91-5K743-VA 6G91-5K743-XA |
|
 |
CBH17019 | REAR AXLE | 30748681 30748889 9200154 |
|
 |
CBH17029L | FRONT LOWER ARM LH REAR | 31200776 |
|
 |
CBH17029R | FRONT LOWER ARM RH REAR | 31200775 |
|
 |
CBH17030 | FRONT LOWER ARM INNER | 1507181 1507182 31200775 31200776 31262473 31262475 31277345 31277346 31277525 31277526 31317663 31317664 31317665 31317666 31340127 31340128 31429320 31429321 7G9N 3A052 BB 7G9N 3A053 BB LR007205 LR007206 |
|
 |
CBH17040 | REAR AXEL | 31387282 31476223 |
|
 |
CBH17041L | REAR AXEL LH | 31387280 31476221 |
|
 |
CBH17041R | REAR AXEL RH | 31387281 31476222 |
|
 |
CBJ17010A | FRONT LOWER LH/ RH | 1377846 1377848 1385593 1385594 1403408 1403410 1419814 1419815 1426875 1426876 1435745 1435747 1458773 1460693 1466186 1466188 1469024 1469026 1507181 1507182 30671636 30671637 31200448 31200449 31200563 31200564 31200775 31200776 31212781 31212782 31277 |
|
 |
CRE17026 | D= M18X1.5 , C= M16X1.5 | 30776255 30776425 31406474 |
|
 |
CRE17028 | D= M18X1.5 , C= M16X1.5 | 1433271 1596574 30776250 31280002 31280658 31451035 6G913280AA 6G913280AB LR016869 |
|
 |
CS-1716L | FRONT LOWER LH | 31200776 |
|
 |
CS-1716R | FRONT LOWER RH | 31200775 |
|
 |
CS-1726L | FRONT LOWER LH | 31262475 31340128 31429321 |
|
 |
CS-1726R | FRONT LOWER RH | 31262473 31340127 31429320 |
|
 |
CS-353L | FRONT LOWER LH | 1377848 1385594 1403410 1419815 1426876 1435747 1460693 1466188 1469026 1507182 30671636 31200448 31200563 31212782 31277343 31317661 6G9N-3A053-DA 6G9N-3A053-DB 6G9N-3A053-DC 6G9N-3A053-DD 6G9N-3A053-DE 6G9N-3A053-DF 6G9N-3A053-DG 6G9N-3A053-DH 7G9N 3A05 |
|
 |
CS-353R | FRONT LOWER RH | 1377846 1385593 1403408 1419814 1426875 1435745 1458773 1466186 1469024 1507181 30671637 31200449 31200564 31212781 31277344 31317662 6G9N-3A052-DA 6G9N-3A052-DB 6G9N-3A052-DC 6G9N-3A052-DD 6G9N-3A052-DE 6G9N-3A052-DF 6G9N-3A052-DG 6G9N-3A052-DH 7G9N 3A05 |
|
 |
CS-356 | REAR LOWER LH/ RH | 1377449 1381443 1381843 1387628 1426770 1426770 S1 30666558 30666559 30676099 30676100 30736864 30736864 S1 30760069 31262127 31262127 S1 31262128 31262439 31262930 31262930 S1 31262931 31340354 6G91-5K743-VA 6G91-5K743-XA 6G91-5K743-XAA 6G91-5K743-XAB 6G |
|
 |
CSL03048 | REAR (A= 179MM) | 1377349 1377398 1377416 1425853 1502681 1783320 30736875 30736947 30736948 30760678 31429561 31451817 31476579 6G915C486XAA 6G915C486XAB 8V41-5C486-AA 8V4Z-5C486-A CV615C486AAB CV6Z-5C486-B |
|
 |
CSL17019 | FRONT (A= 300MM) | 1377849 1433294 30648461 31658608 6G9N-3B438-BA |
|
 |
CTE17015L | FRONT AXLE LH | 1433274 30776249 31280000 31302344 6G91-3290-AA LR002610 |
|
|
CTE17015R | FRONT AXLE RH | 1433273 30776248 31280001 31302345 6G91-3289-AA LR002609 |
| Model (Year) |
|---|
|
S80 II (124) V70 I (875, 876) |
