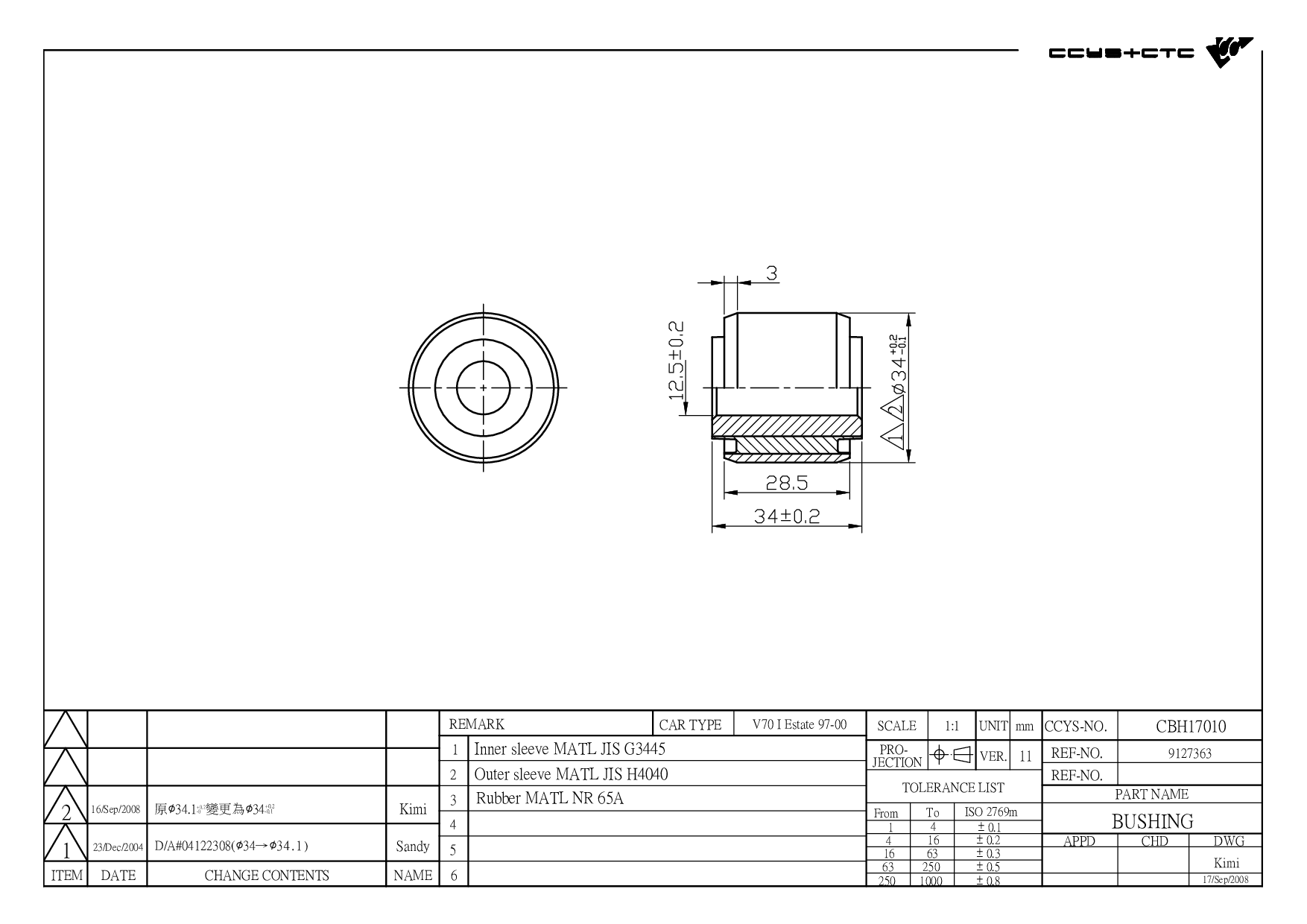

CBH17010
| Designation | Rubber Bushing |
| Position | REAR AXLE OUTER |
| OE No. | 9127363 |
| Length | 34 mm |
| Width | 34 mm |
| Height | 34 mm |
| Net Weight | 0.1 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH17006 | REAR AXLE UPPER | 30748890 8667020 8672220 9173761 |
|
 |
CBH17008 | REAR AXLE INNER | 31277893 9169204 |
|
 |
CBH17010 | REAR AXLE OUTER | 9127363 |
|
 |
CBH17018 | REAR AXLE | 31 277 993 8672221 9200301 |
|
 |
CBH17037 | FRONT LOWER ARM INNER | 9465971 |
|
 |
CBH17038 | FRONT LOWER ARM INNER | 8630605 |
|
 |
CBJ17007A | FRONT LOWER LH/RH | 274185 274186 274187 274193 274193X1 274524 274544 274548 274593 8634438 9173613 91736132 9492639 |
|
 |
CRE17018 | D= M14X1.5 , C= M16X1.5 | 274179 30760714 8634757 8663288 8663289 9173611 9173612 |
|
 |
CRE17022 | D= M14X1.5 , C= M16X1.5 | 274353 |
|
 |
CS-1723L | FRONT LOWER LH | 30635231 30736387 36012459 36051004 8623959 8646373 8649545 |
|
 |
CS-1723R | FRONT LOWER RH | 30635232 30736388 36012460 36051005 8623960 8646374 8649546 |
|
 |
CSL17013 | REAR (A= 140MM) | 30647920 30714678 31201603 8634869 8672446 9169080 |
|
 |
CSL17015 | FRONT (A= 332MM) | 274303 274456 30647919 30714685 31201602 31212692 8634736 8672445 9200603 |
|
 |
CSL17017 | REAR (A= 140MM) | 30647920 30714678 31201603 8634869 8672446 9169080 |
|
 |
CTE17007L | FRONT AXLE LH (C= M14X1.5) | 274191 274576 30776323 |
|
 |
CTE17007R | FRONT AXLE RH (C= M14X1.5) | 274192 274582 30776324 |
| Model (Year) |
|---|
|
S60 I (384) S80 I (184) V70 I (875, 876) V70 II (285) XC70 I Cross Country (295) | V70 XC |
