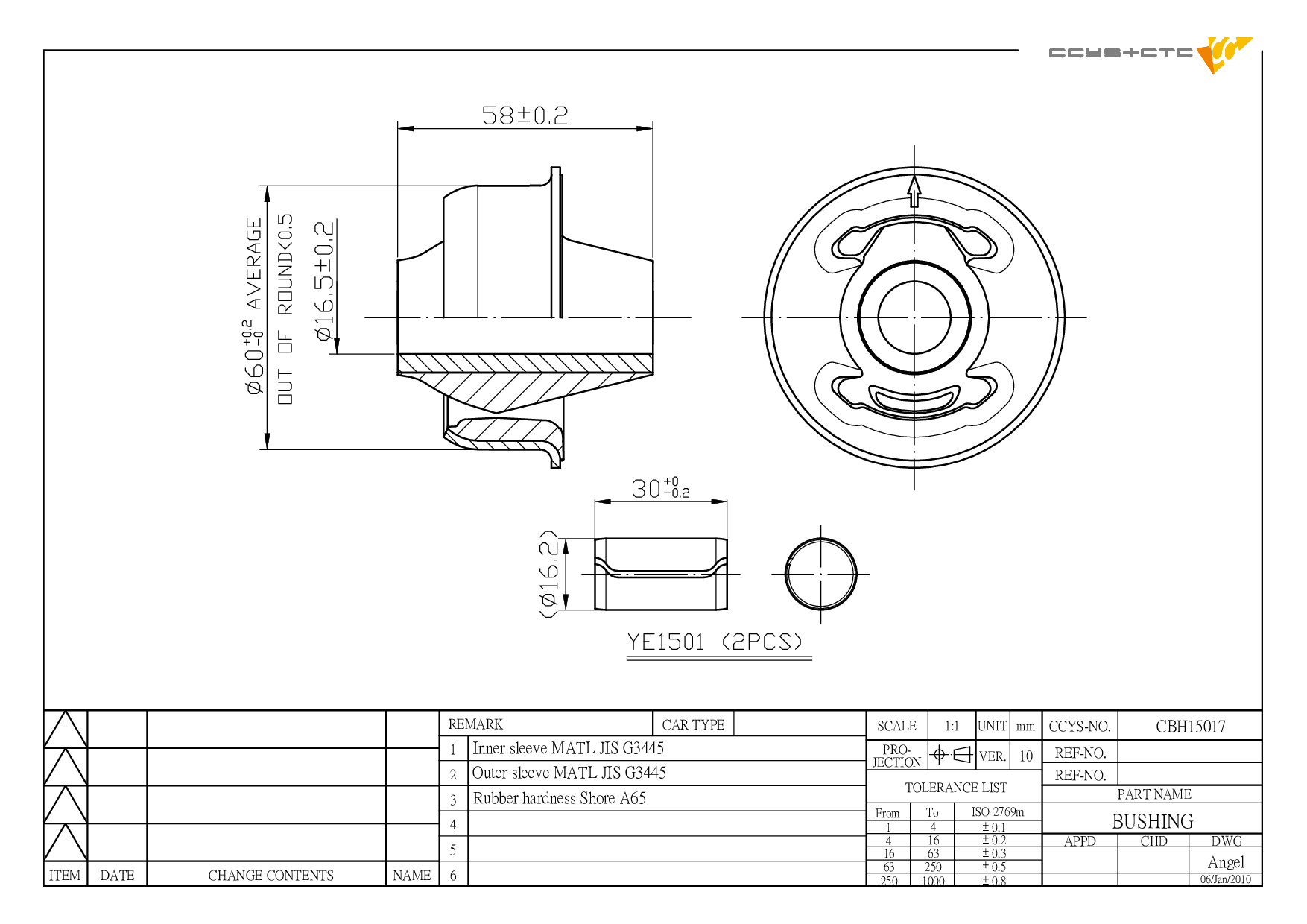

CBH15017
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM REAR |
| OE No. | 3 52 352 / 3 52 356 / 90373264 / 90495046 |
| Length | 58 mm |
| Width | 58 mm |
| Height | 58 mm |
| Net Weight | 0.27 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH15001 | FRONT LOWER ARM REAR | 352 348 90268463 |
|
 |
CBH15017 | FRONT LOWER ARM REAR | 3 52 352 3 52 356 90373264 90495046 |
|
 |
CBJ15004 | FRONT LOWER LH/ RH | 090141393 090295479 090297863 1603121 1603163 1603167 90141393 90295479 90297563 90297863 |
|
 |
CBJ15007A | FRONT LOWER LH/ RH | ||
 |
CS-1501L | FRONT LOWER LH | 3 52 075 3 52 077 3 52 163 3 52 193 53 52 015 90373779 90473224 90473226 90495159 90495161 |
|
 |
CS-1501R | FRONT LOWER RH | 3 52 074 3 52 076 3 52 192 53 52 018 90473225 90473227 90495160 90495162 |
|
 |
CS-1515L | FRONT LOWER LH | 53 52 001 90495103 |
|
 |
CS-1515R | FRONT LOWER RH | 53 52 000 90495104 |
|
 |
CSL15001 | FRONT (A= 84.5MM) | 0 350 261 03 50 261 S1 3 50 261 S1 90278577 90278577 S1 |
|
 |
CSL15003 | FRONT (A= 84.5MM) | 0 350 260 03 50 260 S1 3 50 260 S1 90278579 90278579 S1 |
|
 |
CSL15006 | FRONT (A= 301.2MM) | 0 350 611 0 350 614 013169439 090498745 13169439 3 50 611 3 50 614 90498745 |
|
 |
CSL27005 | FRONT (A= 88MM) | 0 350 263 03 50 263 S1 3 50 263 S1 4544599 90495045 90495045 S1 |
| Model (Year) |
|---|
|
ASTRA F CLASSIC Estate (T92) ASTRA F CLASSIC Hatchback (T92) ASTRA F Convertible (T92) ASTRA F Estate (T92) ASTRA F Estate Van (T92) ASTRA F Hatchback (T92) ASTRA F Saloon (T92) | OPTIMA CALIBRA A (C89) VECTRA A (J89) VECTRA A Hatchback (J89) |
| Model (Year) |
|---|
|
CAVALIER Mk III Hatchback (J89) CAVALIER Mk III Saloon (J89) |
