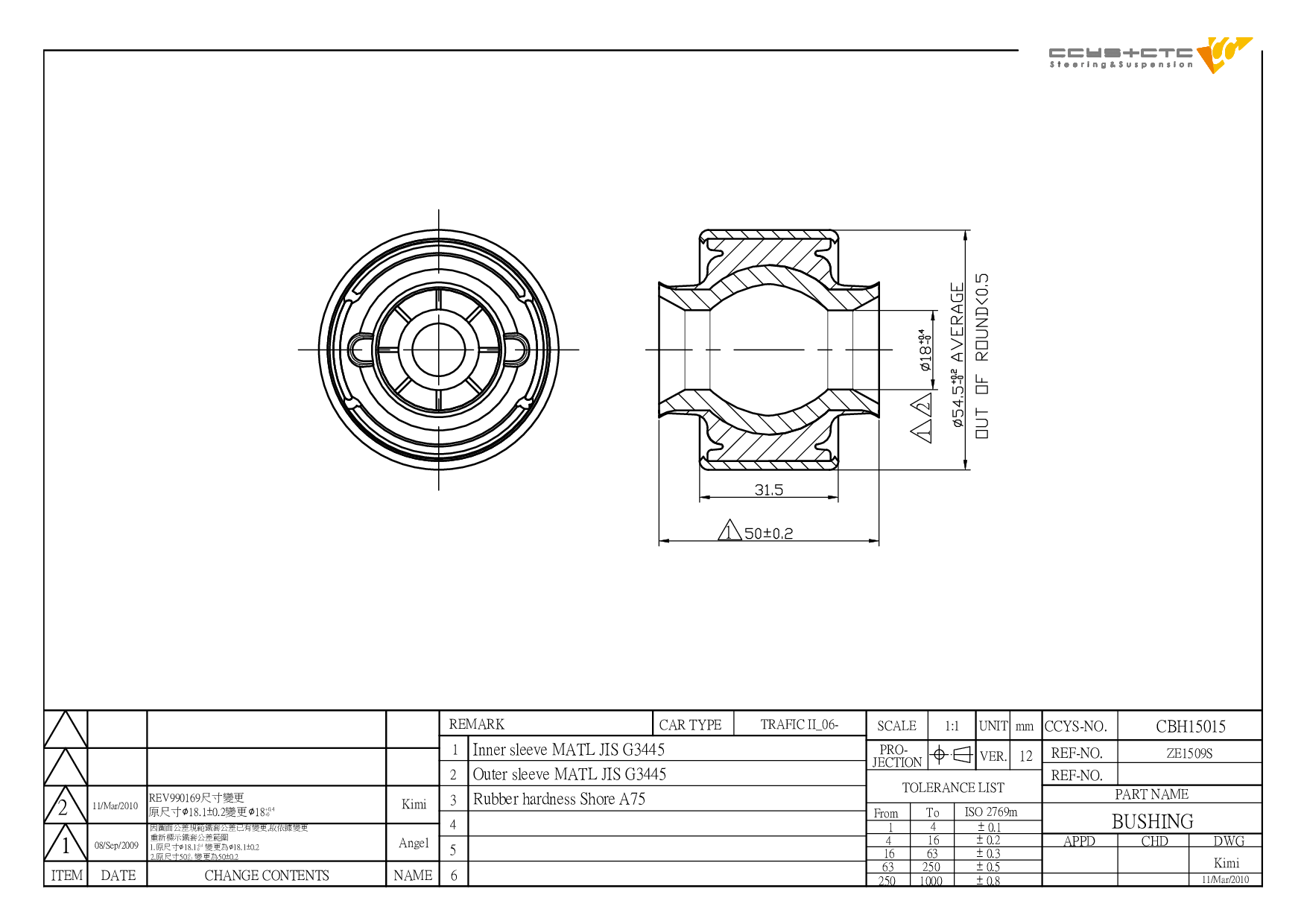

CBH15015
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM INNER |
| OE No. | 82 00 049 624 / 82000-49624 |
| Length | 54.5 mm |
| Width | 54.5 mm |
| Height | 50 mm |
| Net Weight | 0.3 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH15014 | FRONT LOWER ARM REAR | 82 00 002 869 |
|
 |
CBH15015 | FRONT LOWER ARM INNER | 82 00 049 624 82000-49624 |
|
 |
CBJ10006A | FRONT LOWER LH/ RH | 40160-00Q0A 40460-00Q0G 4431869 77 01 477 385 82 00 395 073 82 00 667 278 93161884 |
|
 |
CBJ15005A | FRONT LOWER LH/ RH | 40 16 066 76R 40160-00Q0C 40160-00Q0G 44 19 075 44 22 183 54 50 184 33R 54 50 481 01R 54 50 508 04R 54 50 510 51R 60 40 002 105 77 01 476 576 77 01 478 029 82 00 204 837 82 00 204 838 82 00 266 038 82 00 266 041 82 00 423 380 82 00 423 381 82 00 423 382 8 |
|
 |
CRE15007 | D= M14X1.5 , C= M12X1.0 | 4408474 48520-00QAM 77 01 473 333 91160037 |
|
 |
CS-1509L | FRONT LOWER LH | 4408958 4412934 4418223 545016188R 54503-00Q0A 54503-00Q0B 54503-00Q0C 54503-00Q0D 54503-00Q0E 54503-00Q0F 54503-00Q0G 54503-00QAA 54503-00QAB 545054429R 82 00 054 003 82 00 247 898 82 00 565 072 91166462 93851117 93858141 95523358 |
|
 |
CS-1509R | FRONT LOWER RH | 4408959 4412936 4418224 545008992R 54502-00Q0A 54502-00Q0B 54502-00Q0C 54502-00Q0D 54502-00Q0E 54502-00Q0F 54502-00Q0G 54502-00QAA 54502-00QAB 545042846R 82 00 054 006 82 00 247 900 82 00 565 079 91166461 93851118 93858142 95523257 |
|
 |
CSL15013 | FRONT (A= 279MM) | 44 07 573 44 08 904 44 17 973 54616-00Q0A 54616-00Q0J 54616-00Q1C 54616-00Q1F 54616-00QAC 546180393R 546181944R 6000640472 7711160426 82 00 002 870 8200661217 8660005547 91167000 93450030 93858917 |
| Model (Year) |
|---|
|
PRIMASTAR Bus (X83) PRIMASTAR Platform/Chassis (X83) PRIMASTAR Van (X83) |
| Model (Year) |
|---|
|
VIVARO A Bus (X83) VIVARO A Platform/Chassis (X83) VIVARO A Van (X83) |
| Model (Year) |
|---|
|
TRAFIC II Bus (JL) TRAFIC II Platform/Chassis (EL) TRAFIC II Van (FL) |
| Model (Year) |
|---|
|
VIVARO A Bus (X83) VIVARO A Platform/Chassis (X83) VIVARO A Van (X83) VIVARO B Bus (X82) VIVARO B Platform/Chassis (X82) VIVARO B Van (X82) |
