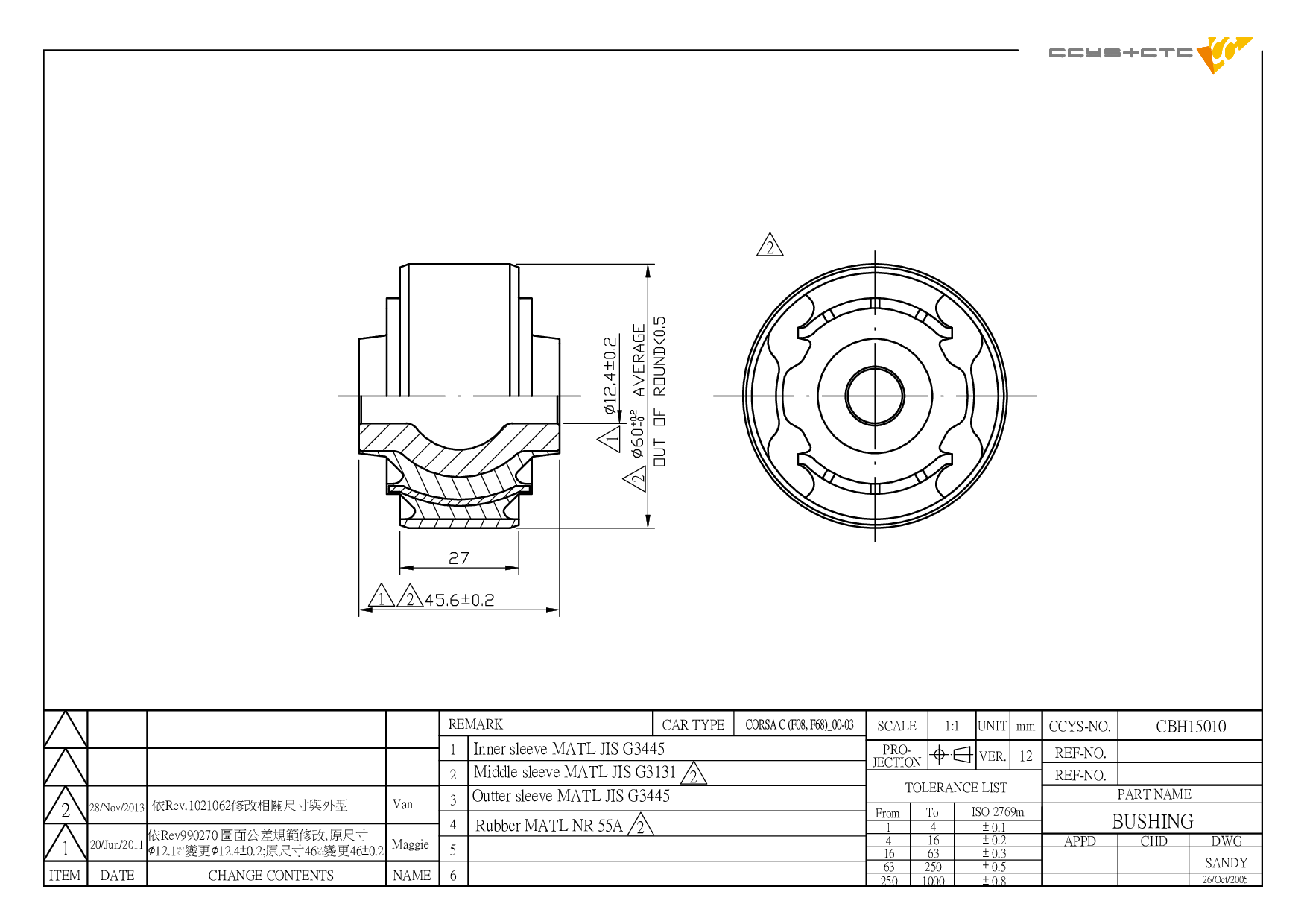

CBH15010
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM REAR |
| OE No. | |
| Length | 60 mm |
| Width | 60 mm |
| Height | 45.6 mm |
| Net Weight | 0.26 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH15009 | FRONT LOWER ARM INNER | 03 52 309 03 52 366 03 52 377 03 52 378 09199576 09199961 24428980 24428982 3 52 366 3 52 377 3 52 378 352309 9 199 961 9199576 93 188 302 93188303 |
|
 |

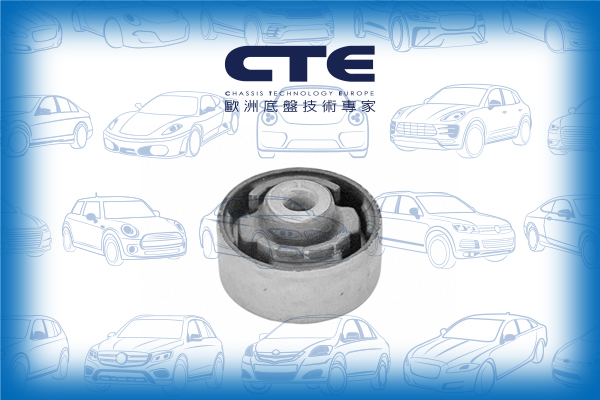

CBH15010 | FRONT LOWER ARM REAR | ||
 |

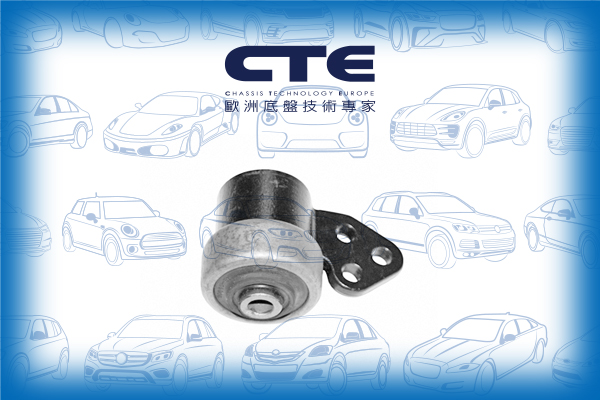

CBH15013 | FRONT LOWER ARM INNER (W/ BRACKET) | 03 52 309 03 52 366 03 52 377 03 52 378 09199576 09199961 24428980 24428982 3 52 366 3 52 377 3 52 378 352309 9 199 961 9199576 93 188 302 93188303 |
|
 |

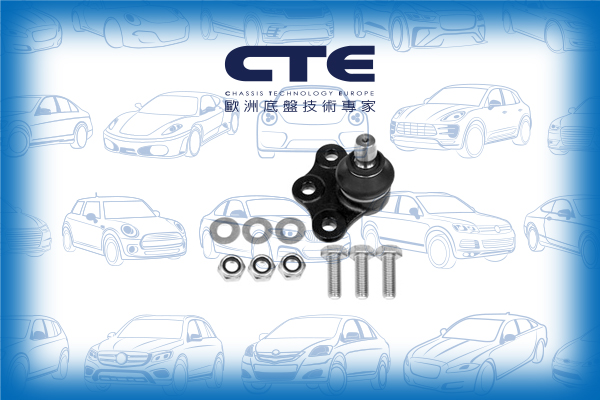

CBJ15003A | FRONT LOWER LH/ RH | 0352803 352803 90576327 9196394 |
|
 |

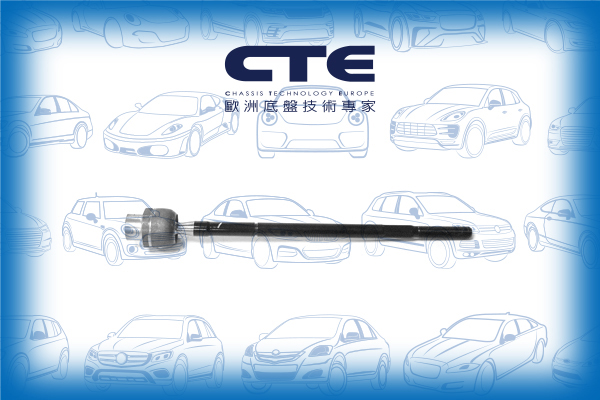

CRE15003 | D= M12X1.5 , C= M14X1.5 | 026087867 093192421 1603008 1603845 26087867 93192421 |
|
 |

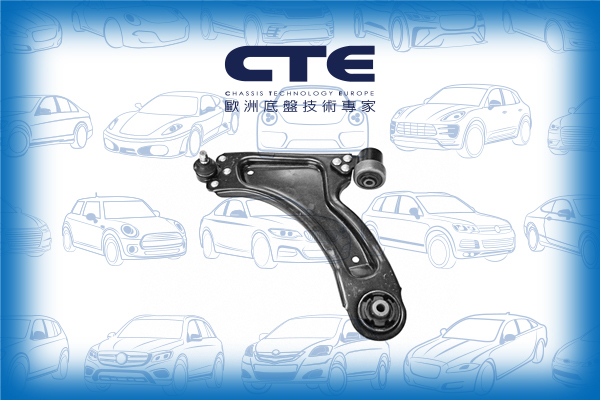

CS-1506L | FRONT LOWER LH | 03 52 041 03 52 061 0352 041 S1 0352 061 S1 13140037 13140037 S1 13140039 24 449 453 24428977 24428977 S1 3 52 041 3 52 045 3 52 061 3 52 064 352 041 S1 352 061 S1 |
|
 |

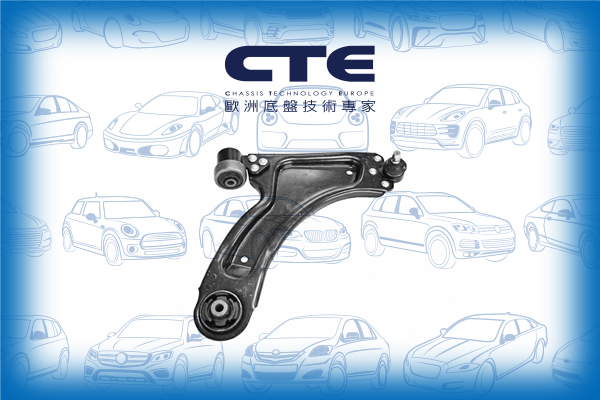

CS-1506R | FRONT LOWER RH | 03 52 042 03 52 063 0352 042 S1 0352 063 S1 13140038 13140038 S1 13140040 24 449 455 24428978 24428978 S1 3 52 042 3 52 046 3 52 063 3 52 065 352 042 S1 352 063 S1 |
|
 |

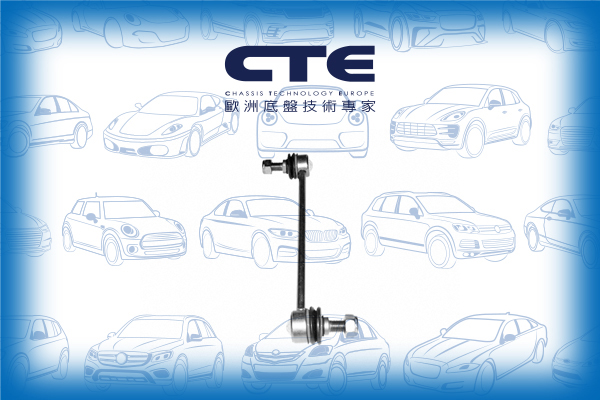

CSL27006 | FRONT (A= 243.5MM) | 03 50 610 03 50 616 04 686 606 090496116 3 50 610 4 686 606 4686606 52 36 823 90496116 |
| Model (Year) |
|---|
|
CORSA C (X01) CORSA C Hatchback Van (X01) MERIVA A MPV (X03) |
