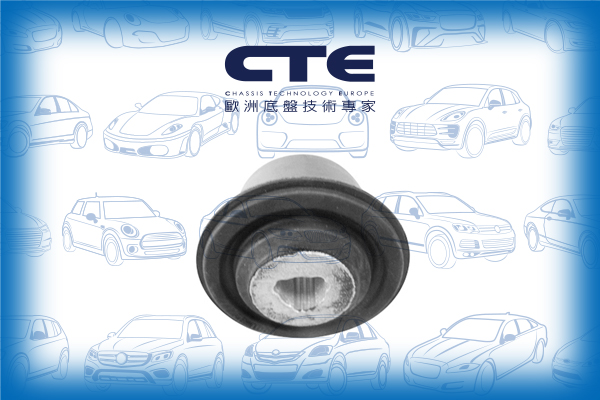

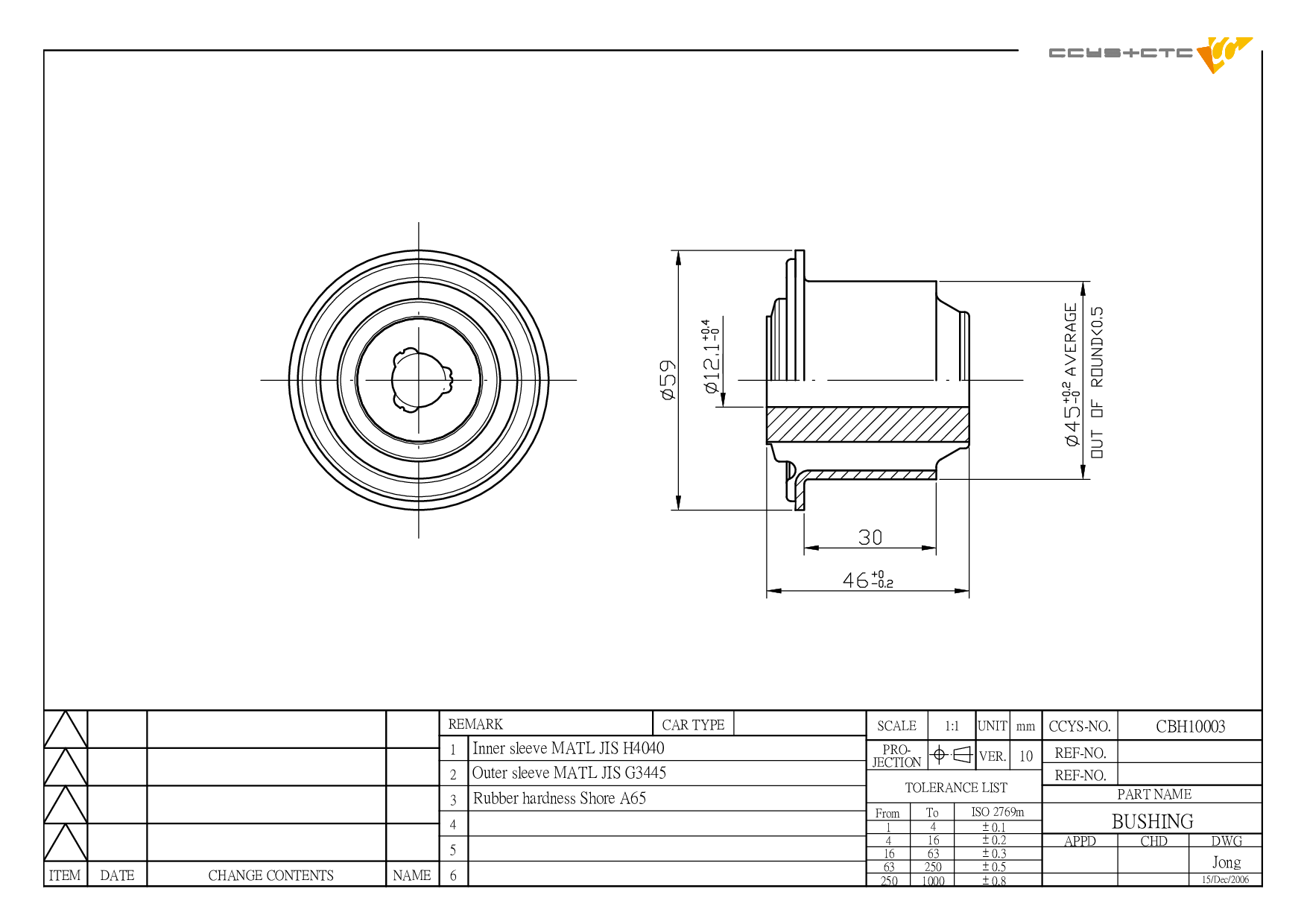

CBH10003
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM INNER |
| OE No. | |
| Length | 59 mm |
| Width | 59 mm |
| Height | 46 mm |
| Net Weight | 0.18 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH10003 | FRONT LOWER ARM INNER | ||
 |

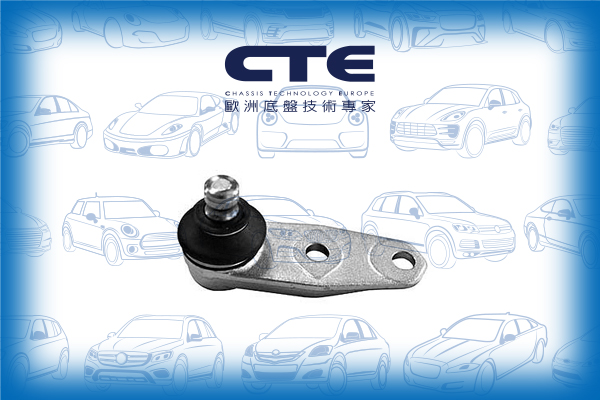

CBJ10003 | FRONT LOWER LH/ RH | ||
 |

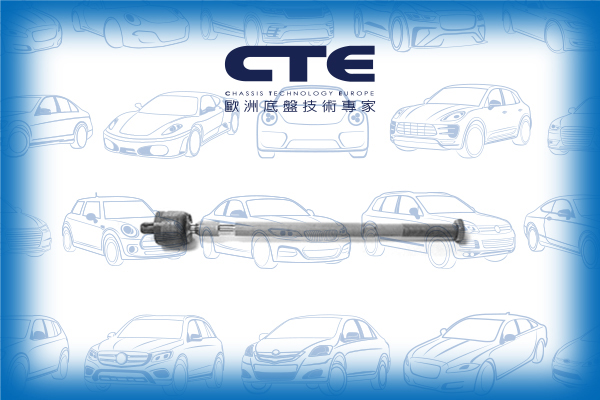

CRE10002 | D= M14X1.5 , C= M12X1.0 | 77 01 472 120 |
|
 |

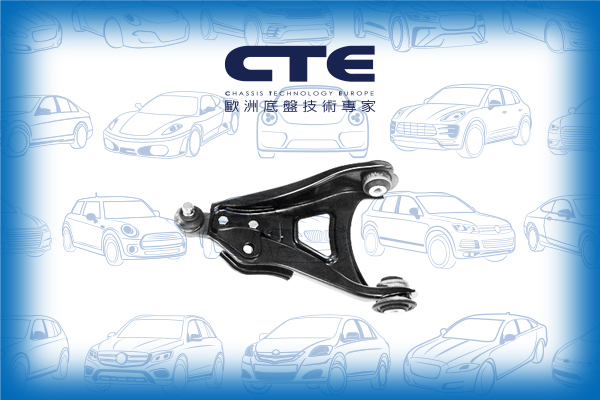

CS-1003L | FRONT LOWER LH | 54501-00Q0D 54501-00Q0G 54501-00Q0K 54501-00Q0L 54501-00QAG 54501-00QAH 77 00 310 809 77 00 313 944 77 00 425 227 82 00 197 179 82 00 737 123 82 00 942 407 82009-42417 |
|
 |

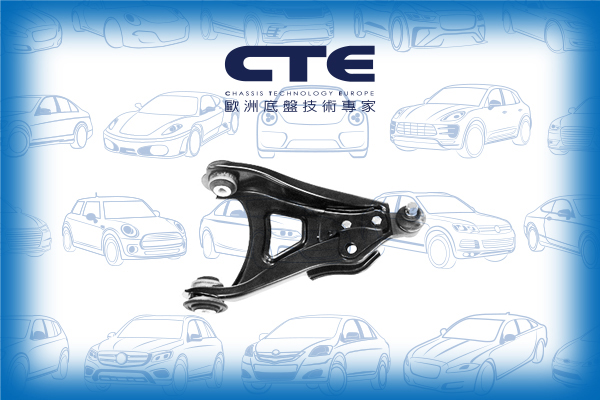

CS-1003R | FRONT LOWER RH | 54500-00Q0D 54500-00Q0J 54500-00Q0M 54500-00Q1A 54500-00QAG 54500-00QAH 54616-00Q0D 77 00 310 810 77 00 313 945 77 00 425 228 82 00 197 187 82 00 737 129 82 00 942 408 82009-42413 |
| Model (Year) |
|---|
|
CLIO II (BB_, CB_) | LUTECIA CLIO II Hatchback Van (SB0/1/2_) |
