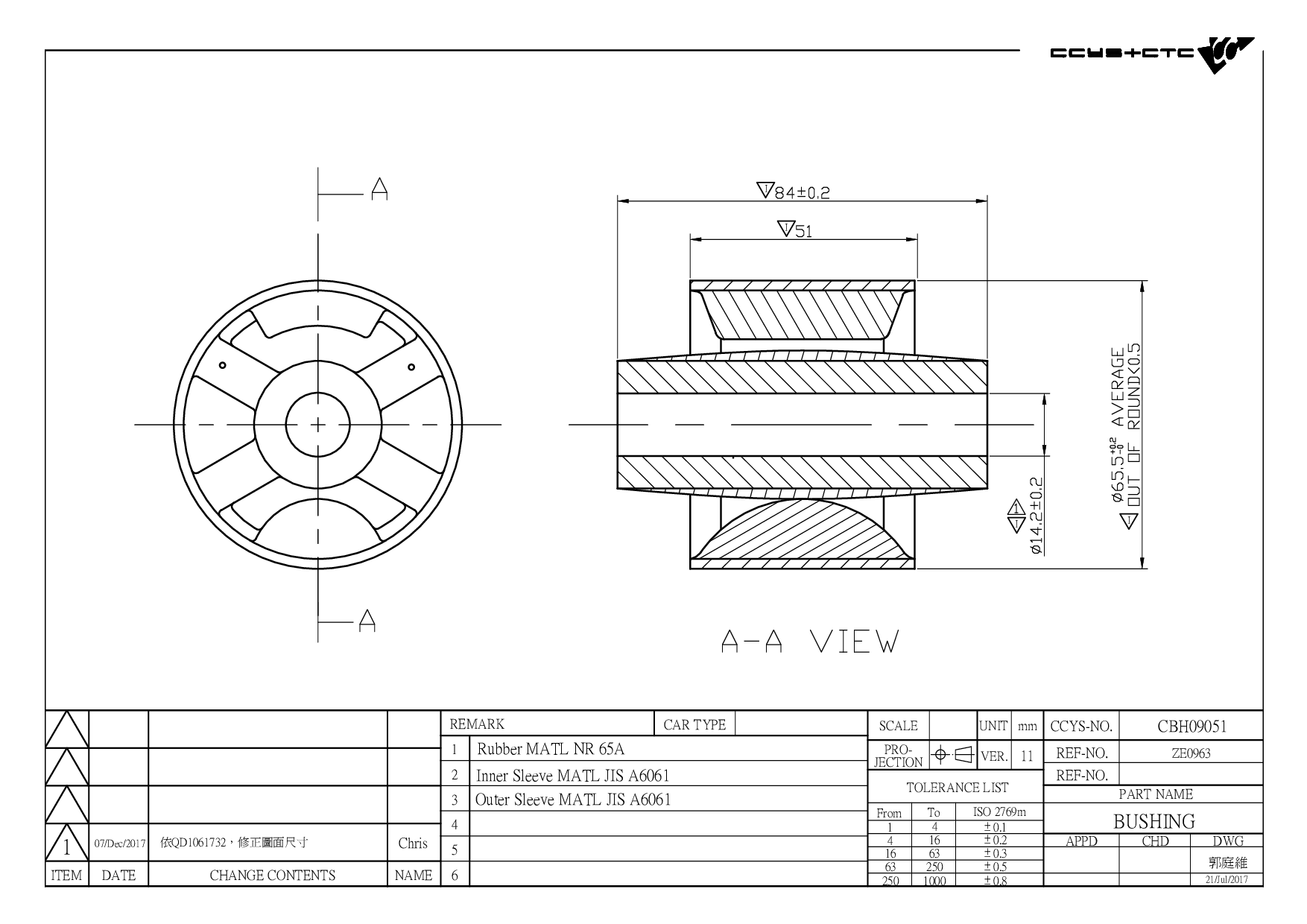

Rubber Bushing/BMW/X3 (F25)/X4 (F26)

CBH09051

Designation Rubber Bushing
Position FRONT UPPER ARM INNER
OE No. 31 10 6 786 951 / 6 786 951
Length 65.5 mm
Width 65.5 mm
Height 84 mm
Net Weight 0.25 kg
CTE No. DESIGNATION POSITION OE NO.
CBH09046 FRONT LOWER ARM INNER
31 10 6 786 959
31 10 6 789 959
31 12 6 787 669
31 12 6 787 670
31 12 6 792 277
31 12 6 852 991
31 12 6 852 992
31 12 6 854 727
31 12 6 854 728
6 786 959
6 854 727
6 854 728
CBH09051 FRONT UPPER ARM INNER
31 10 6 786 951
6 786 951
CBJ09013 FRONT UPPER LH/RH
31 10 6 787 665
6 787 665
CS-963L FRONT UPPER LH
31 10 6 787 673
6 787 673
CS-963R FRONT UPPER RH
31 10 6 787 674
6 787 674
CS-964L FRONT LOWER LH
31 12 6 787 669
6 787 669
CS-964R FRONT LOWER RH
31 12 6 787 670
6 787 670
Model (Year)
X3 (F25)
X4 (F26)
