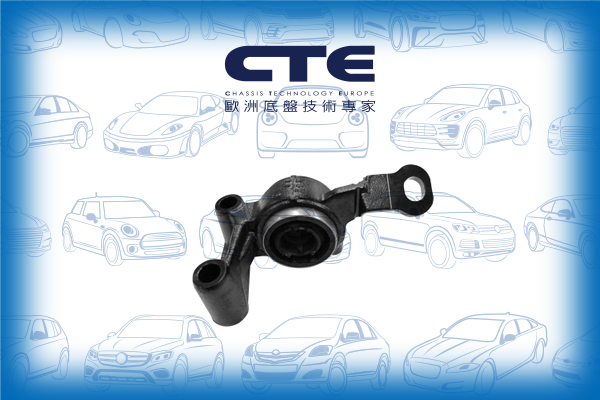

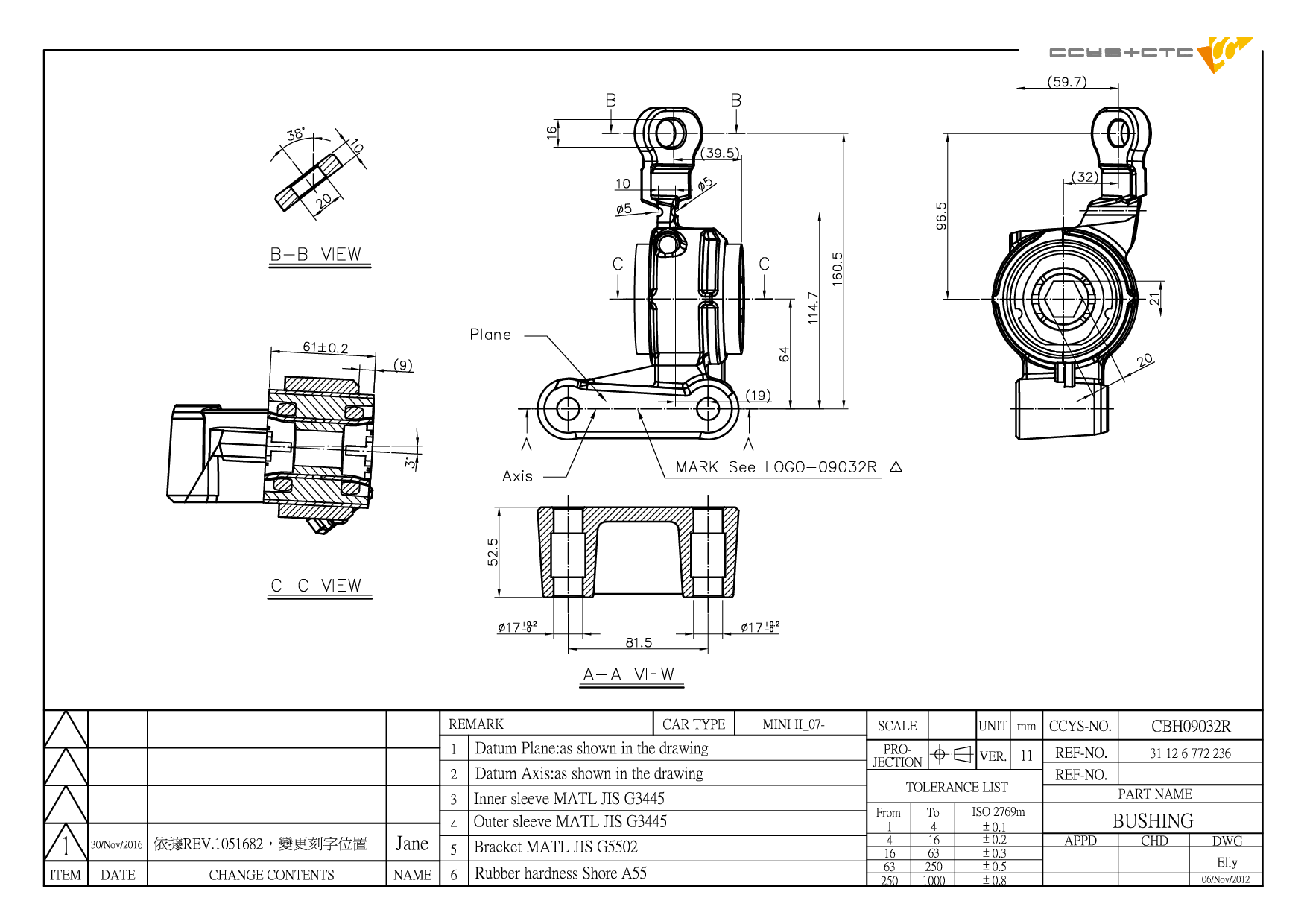

CBH09032R
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM RH REAR |
| OE No. | 31 12 6 772 236 |
| Length | 194 mm |
| Width | 121 mm |
| Height | 93 mm |
| Net Weight | 1.83 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH09020 | FRONT LOWER ARM REAR | 31 12 4 012 193 31 12 6 757 551 31 12 6 767 530 31 12 6 783 185 4 012 193 6 757 551 6 767 530 6 783 185 |
|
 |
CBH09032L | FRONT LOWER ARM LH REAR | 31 12 6 772 235 |
|
 |
CBH09032R | FRONT LOWER ARM RH REAR | 31 12 6 772 236 |
|
 |
CBH09043 | REAR AXLE | 33 32 6 767 206 6 767 206 |
|
 |
CBJ09007LA | FRONT LOWER LH | 2 361 219 31 12 2 361 219 31 12 4 048 629 31 12 6 772 303 4 048 629 6 772 303 |
|
 |
CBJ09007RA | FRONT LOWER RH | 2 361 220 31 12 2 361 220 31 12 4 048 630 31 12 6 772 304 4 048 630 6 772 304 |
|
 |
CBJ09008 | FRONT LOWER LH/ RH | 31 12 6 772 305 6 772 305 |
|
 |
COS09014 | FRONT,REAR | ||
 |
CRE06028 | D= M14X1.5 , C= M16X1.0 | 48521-4M500 48521-4M525 48521-4M526 48521-4M527 48521-4M528 48521-4M529 48521-4M585 48521-4M586 48521-4M587 48521-4M588 48521-8H300 48521-8H325 48521-8H326 48521-8H327 48521-8H328 48521-8H385 48521-8H386 48521-AR000 48521-AR025 48521-AR026 48521-AR027 485 |
|
 |
CRE09006 | D= M14X1.5 , C= M14X1.5 | 32 10 6 778 547 32 10 6 778 548 32 10 9 803 321 32 10 9 803 322 32 10 9 808 837 32 10 9 808 838 6 778 547 6 778 548 9 803 321 9 803 322 9 808 837 9 808 838 |
|
 |
CS-939L | FRONT LOWER LH | 31 12 4 048 627 31 12 6 772 301 4 048 627 6 772 301 |
|
 |
CS-939R | FRONT LOWER RH | 31 12 4 048 628 31 12 6 772 302 4 048 628 6 772 302 |
|
 |
CS-944L | FRONT LOWER LH | 31 12 4 048 627 31 12 6 772 301 4 048 627 6 772 301 CS-939L+CBJ09007LA |
|
 |
CS-944R | FRONT LOWER RH | 31 12 4 048 628 31 12 6 772 302 4 048 628 6 772 302 CS-939R+CBJ09007RA |
|
 |
CS-953 | REAR AXLE LH/ RH | 1 490 085 33 32 1 490 085 33 32 6 760 054 33 32 6 768 724 33 32 6 768 726 33 32 6 769 020 33 32 6 769 023 6 760 054 6 768 724 6 768 726 6 769 020 6 769 023 |
|
 |
CSL09017 | FRONT (A= 300MM) | 31 35 6 759 537 31 35 6 778 831 6 759 537 6 778 831 |
|
 |
CSL09024 | REAR (A= 233MM) | 33 50 6 772 789 |
|
 |
CSR09007L | FRONT AXLE LH | 32 10 6 778 547 6 778 547 |
|
 |
CSR09007R | FRONT AXLE RH | 32 10 6 778 548 6 778 548 |
|
 |
CTE09007L | FRONT AXLE LH (C= M14X1.5) | 32 10 6 778 437 6 778 437 |
|
 |
CTE09007R | FRONT AXLE RH (C= M14X1.5) | 32 10 6 778 438 6 778 438 |
| Model (Year) |
|---|
|
MINI (R56) MINI CLUBMAN (R55) MINI CLUBVAN (R55) MINI Convertible (R57) MINI Coupe (R58) MINI Roadster (R59) |
