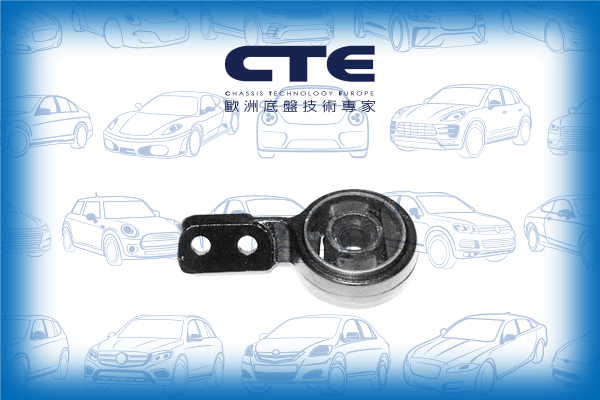

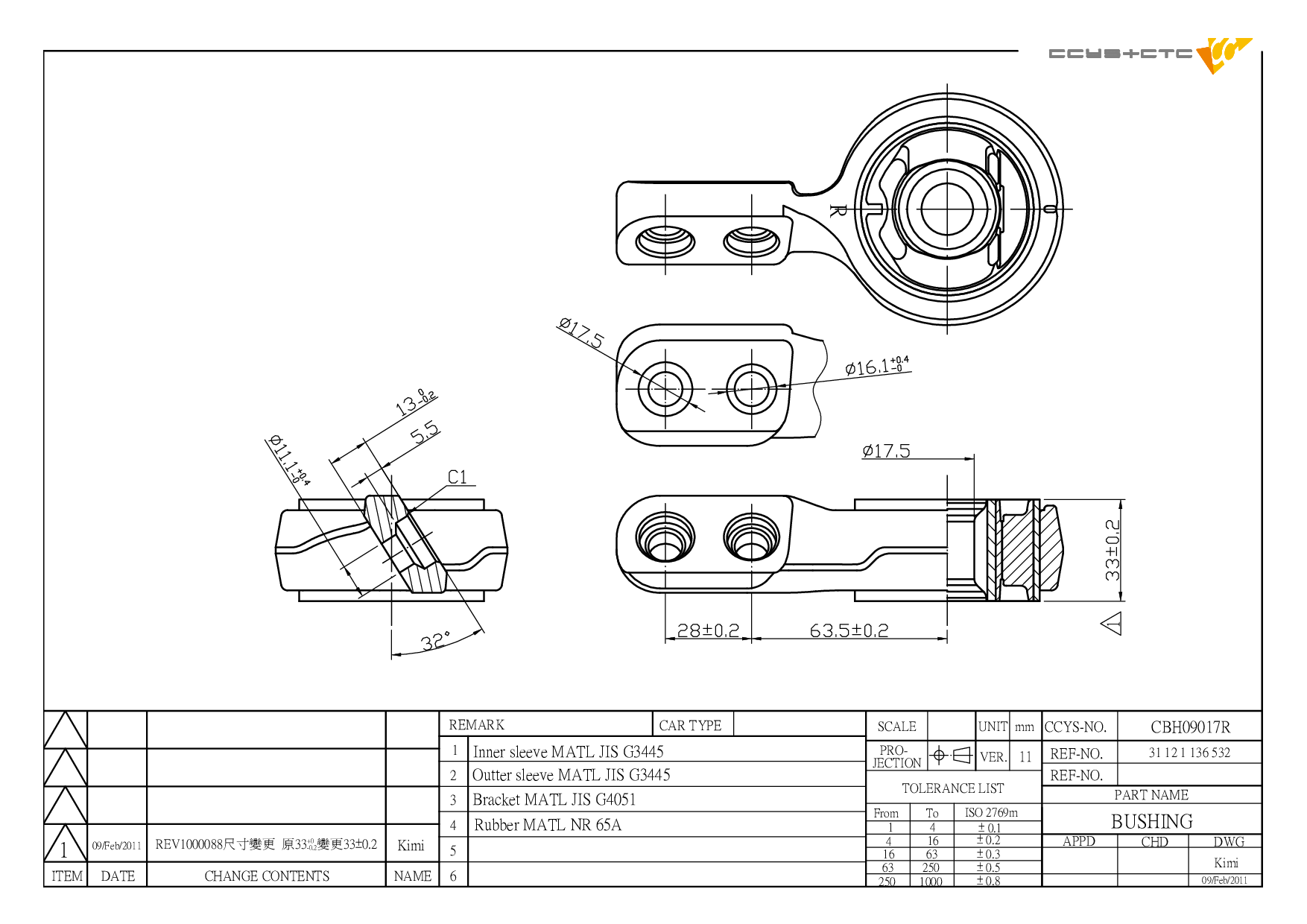

CBH09017R
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM RH REAR |
| OE No. | 31 12 1 136 532 |
| Length | 145 mm |
| Width | 75.3 mm |
| Height | 33 mm |
| Net Weight | 0.65 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

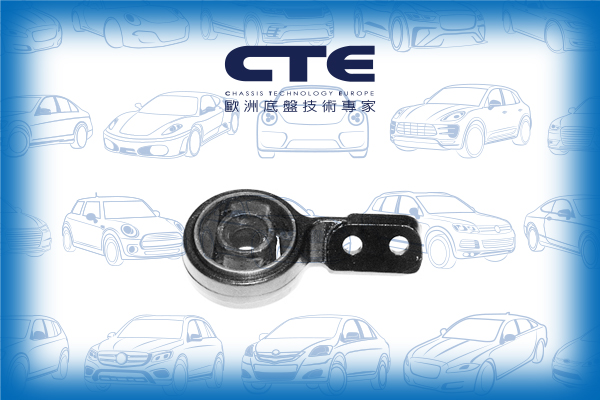

CBH09017L | FRONT LOWER ARM LH REAR | 31 12 1 136 531 |
|
 |
CBH09017R | FRONT LOWER ARM RH REAR | 31 12 1 136 532 |
|
 |
CBH09018 | FRONT LOWER ARM REAR (W/O BRACKET) | 31 12 9 059 288 |
|
 |
CBJ09001 | FRONT LOWER LH/ RH INNER | 1 126 253 1 126 296 1 139 131 31 12 1 126 253 31 12 1 126 296 31 12 1 139 131 |
|
 |
CBJ09003 | FRONT LOWER LH/ RH OUTER | 1 096 685 1 140 398 31 12 1 096 685 31 12 1 140 398 31 12 6 758 510 6 758 510 |
|
 |
CBJ09006 | FRONT LOWER LH/ RH OUTER | 31 12 1 096 685 31 12 1 140 398 31 12 6 758 510 |
|
 |
CRE09002 | D= M14X1.5 , C= M18X1.5 | 1 136 133 32 11 1 136 133 |
|
 |
CS-909L | FRONT LOWER LH | 1 094 275 1 136 529 1 140 399 1 140 957 2 339 997 31 12 1 094 275 31 12 1 136 529 31 12 1 140 399 31 12 1 140 957 31 12 2 339 997 31 12 6 758 513 31 12 6 758 515 6 758 513 6 758 515 |
|
 |
CS-909R | FRONT LOWER RH | 1 094 276 1 136 530 1 140 400 1 140 958 2 339 996 31 12 1 094 276 31 12 1 136 530 31 12 1 140 400 31 12 1 140 958 31 12 2 339 996 31 12 6 758 514 31 12 6 758 516 6 758 514 6 758 516 |
|
 |

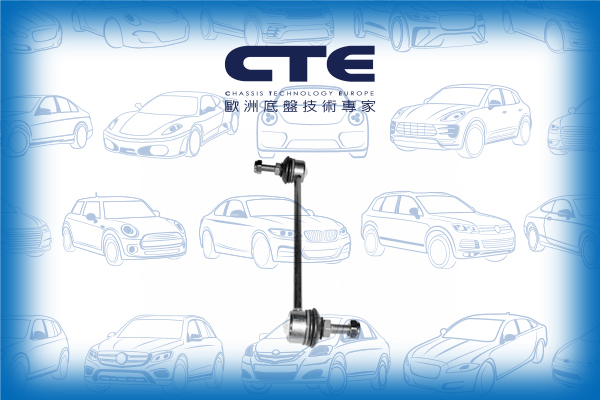

CSL09001 | FRONT (A= 240MM) | 1 124 380 1 127 194 1 128 050 1 130 075 1 134 582 31 35 1 124 380 31 35 1 127 194 31 35 1 128 050 31 35 1 130 075 31 35 1 134 582 |
|
 |
CSL09003 | FRONT (A= 70MM) | 1 091 764 1 127 689 1 128 737 31 35 1 091 764 31 35 1 127 689 31 35 1 128 737 |
|
 |

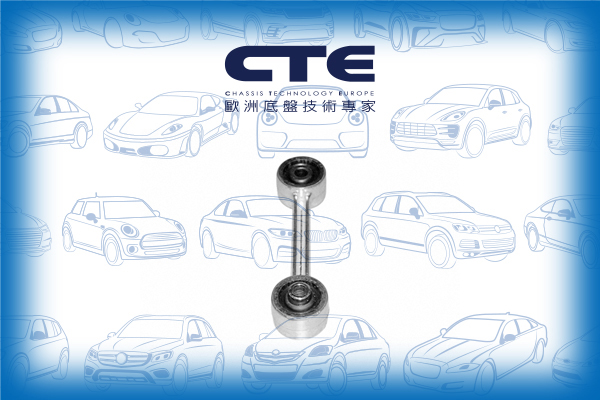

CSL09004 | REAR (A= 100MM) | 1 124 375 1 126 932 33 55 1 124 375 33 55 1 126 932 |
|
 |
CSR09002L | FRONT AXLE LH | 1 139 315 1 139 317 32 11 1 139 315 32 11 1 139 317 |
|
 |
CSR09002R | FRONT AXLE RH | 1 139 316 32 11 1 139 316 |
|
 |
CTE09002L | FRONT AXLE LH (C= M14X1.5) | 1 139 313 32 11 1 139 313 |
|
 |
CTE09002R | FRONT AXLE RH (C= M14X1.5) | 1 139 314 32 11 1 139 314 |
| Model (Year) |
|---|
|
3 (E36) |
