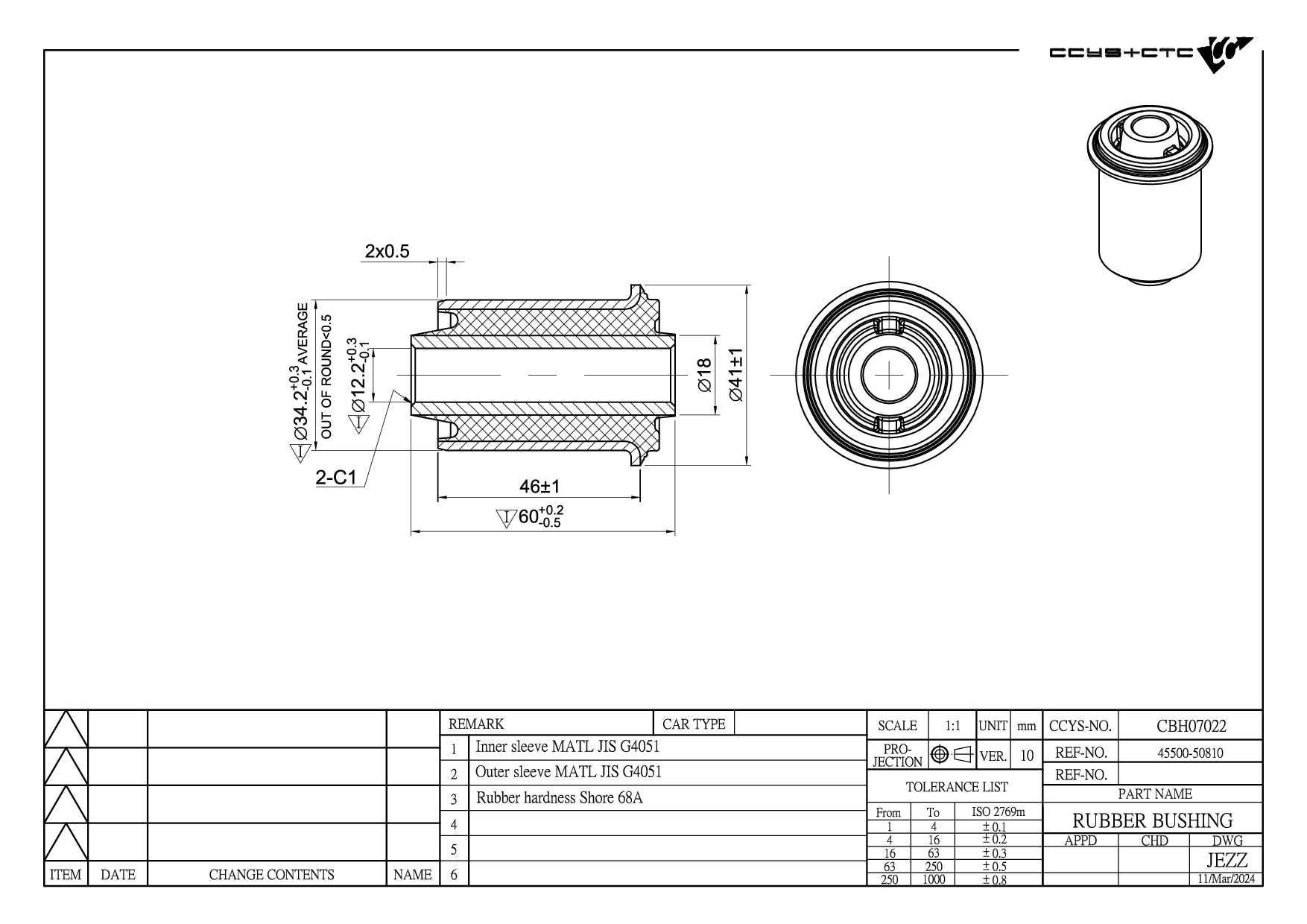

CBH07022
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM INNER |
| OE No. | 45500-50810 / 45500-50810-000 |
| Length | 41 mm |
| Width | 41 mm |
| Height | 60 mm |
| Net Weight | 0.17 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH07001 | FRONT LOWER ARM INNER | 009208989 009212533 09208989 09212533 09319-10030 09319-10030-000 09319M10002 09319M10030 09319M10030000 09319M10030-000 45261-77A00 45261-77A00-000 45261-77A10 45261-77A10-000 45261-84E00 4526184E00000 45261A-78B00 47 03 866 47 06 664 9208989 9212533 963 |
|
 |
CBH07021 | FRONT LOWER ARM REAR | 45540-54G00 45540-54G00-000 |
|
 |
CBH07022 | FRONT LOWER ARM INNER | 45500-50810 45500-50810-000 |
|
 |
CBJ07002 | FRONT LOWER LH/ RH | 1A10-34-350 1A12-34-350 1A13-34-350 1A16-34-300 1A18-34-300 1A19-34-300 45201-52R00 45201-52R01 45201-52R20 45201-52R21 45201-54M00 45201-64P00 45201-68P10 45201-68R00 45201-72L00 45201-77M00 45201-82M00 45201-82MA0 45201M68K00 45201M72R00 45201M79M00 452 |
|
 |
CS-701 | FRONT LOWER LH/ RH | 1AY0-34-300 1YA1-34-300 45200-50500 45200-50E00 45200-69D00 45200-69DV0 45200-69DV1 45200-76G10 45200-76G20 45200-76G21 45200-78000 45200-78002 45200-84000 45200-84001 45200-M50E00 45200-M50E20 45200-M50E30 45200-M50E40 45200-M50E41 45200-M79F00 45200-M79 |
|
 |
CS-719L | FRONT LOWER LH | 45202-59J00 45202-59J00-000 |
|
 |
CS-719R | FRONT LOWER RH | 45201-59J00 45201-59J00-000 |
|
 |
CSL07003 | FRONT (A= 86MM) | 46630-60B00 46630-60B00-000 46630-60B01 46630-60B01-000 46630-60B10 46630-60G00 54618-50A00 |
|
 |
CTE07001 | FRONT AXLE LH/RH (C= M12X1.25) | 1A01-32-280 48520-4A0A0 48810-50G10 48810-50G20 48810-60B00 48810-76G00 48810-82000 91175475 96052290 |
| Model (Year) |
|---|
|
LIANA (ER, RH_) | AERIO | BALENO LIANA Hatchback | AERIO |
