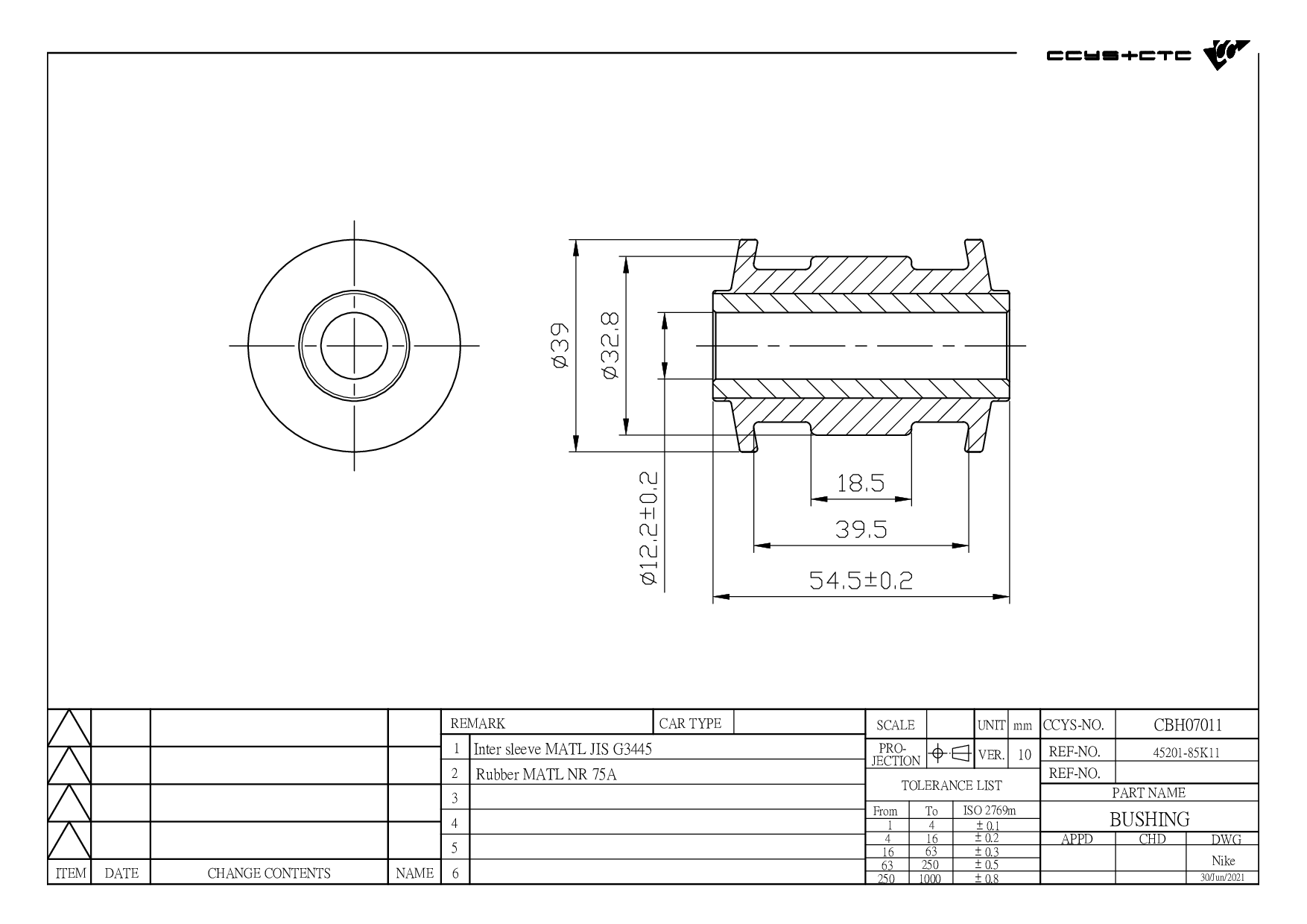

CBH07011
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM INNER |
| OE No. | 45201-85K11 / 45202-85K11 |
| Length | 39 mm |
| Width | 39 mm |
| Height | 55 mm |
| Net Weight | 0.1 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH07010 | FRONT LOWER ARM REAR | 1A05-34-350 1A05-34-350A 1A05-34-350B 1A09-34-350 1A11-34-300 1A11-34-300A 1A11-34-300B 1A15-34-300 45201-58J00 45201-58J01 45201-58J10 45201-85K11 45202-58J00 45202-58J01 45202-58J10 45202-85K11 54529-4A00A 54529-4A00B 54529-4A00C 54529-4A00F 54530-4A00A |
|
 |
CBH07011 | FRONT LOWER ARM INNER | 45201-85K11 45202-85K11 |
|
 |
CS-717L | FRONT LOWER LH | 45202-85K11 |
|
 |
CS-717R | FRONT LOWER RH | 45201-85K11 |
| Model (Year) |
|---|
|
WAGON R (MH23) |
