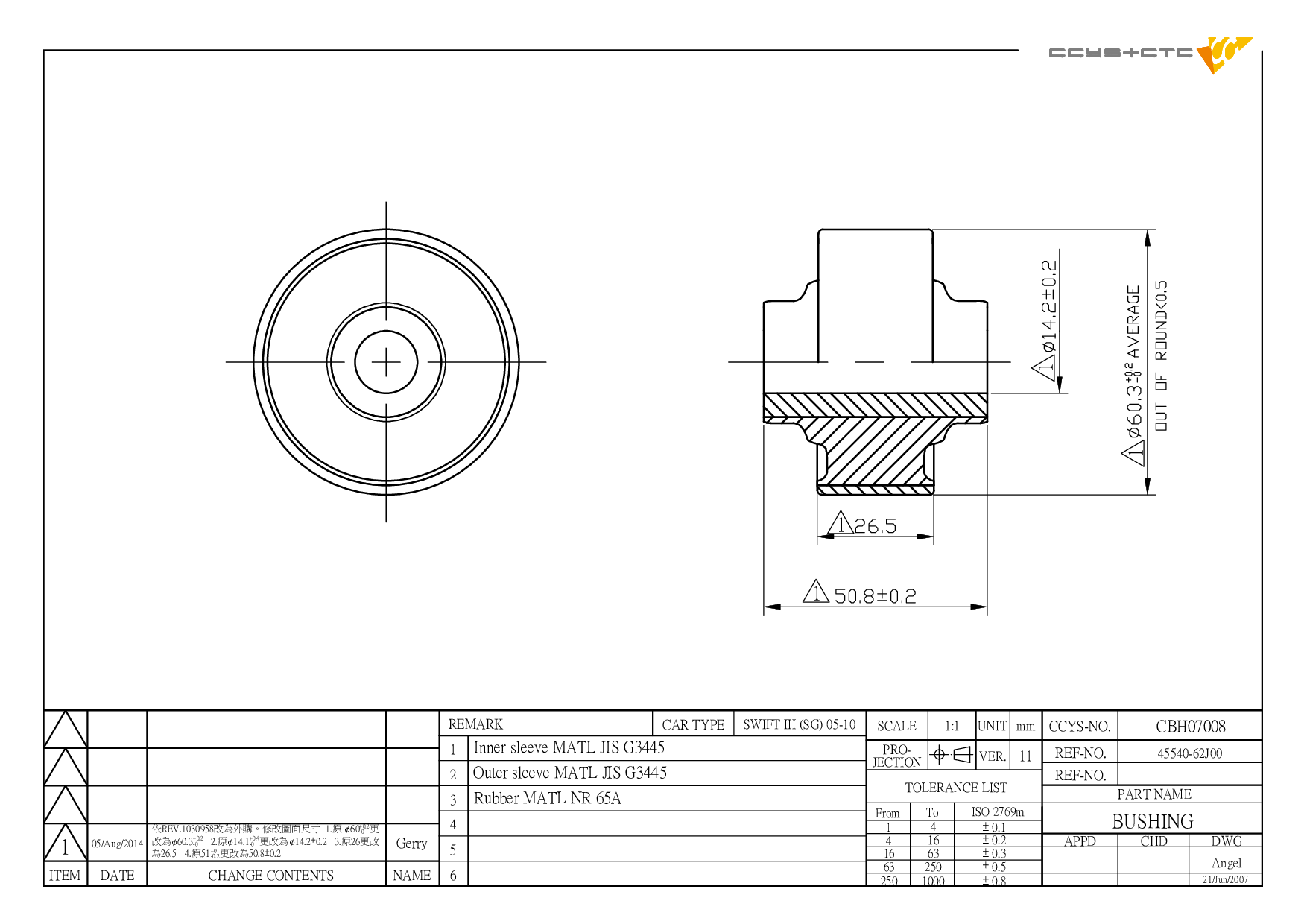

CBH07008
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM REAR |
| OE No. | 45201-61M00 / 45262-54L00 / 45262-54L00-000 / 45262-61M00 / 45262-79J00 / 45262-79J00-000 / 45540-57K00 / 45540-57K00-000 / 45540-62J00 / 45540-62J00 S1 / 45540-62J00-000 / 45540-62J00-000 S1 / 45540-68L00 / 45540-71L00 / 54201-54L20 / 71742732 / 71742732 SK / 71750211 / 71750211 SK / 7176815 |
| Length | 60 mm |
| Width | 60 mm |
| Height | 51 mm |
| Net Weight | 0.27 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH07008 | FRONT LOWER ARM REAR | 45201-61M00 45262-54L00 45262-54L00-000 45262-61M00 45262-79J00 45262-79J00-000 45540-57K00 45540-57K00-000 45540-62J00 45540-62J00 S1 45540-62J00-000 45540-62J00-000 S1 45540-68L00 45540-71L00 54201-54L20 71742732 71742732 SK 71750211 71750211 SK 7176815 |
|
 |
CBH07009 | FRONT LOWER ARM INNER | 45530-62J00 45530-62J00-000 45530-63J00 45530-63J00-000 45530-68L00 45530-71L00 4708302 54201-54L00 54201-54L20 54201-54L20 SK1 54201-79J00 71742731 71742732 71742733 71750149 93193134 |
|
 |
CS-711L | FRONT LOWER LH | 45202-57K00 45202-57K00-000 45202-57KA0 45202-57KA0-000 45202-62J00 45202-62J00-000 45202-63J00 45202-63J00-000 45202-72K00 45202-72K00-000 45202-72K01 45202-72K01-000 47 01 309 47 08 300 93193131 95515571 |
|
 |
CS-711R | FRONT LOWER RH | 45201-57K00 45201-57K00-000 45201-57KA0 45201-57KA0-000 45201-62J00 45201-62J00-000 45201-63J00 45201-63J00-000 45201-72K00 45201-72K00-000 45201-72K01 45201-72K01-000 47 01 310 47 08 299 93193130 95515572 |
| Model (Year) |
|---|
|
SEDICI (189_) |
| Model (Year) |
|---|
|
AGILA B (H08) |
| Model (Year) |
|---|
|
S-CROSS SPLASH (EX) SWIFT III (MZ, EZ) SX4 (EY, GY) | SX4 / SX4 CLASSIC SX4 Saloon (GY, RW) | NEO BALENO VITARA (LY) VITARA (LY) | ESCUDO |
| Model (Year) |
|---|
|
AGILA Mk II (B) (H08) |
