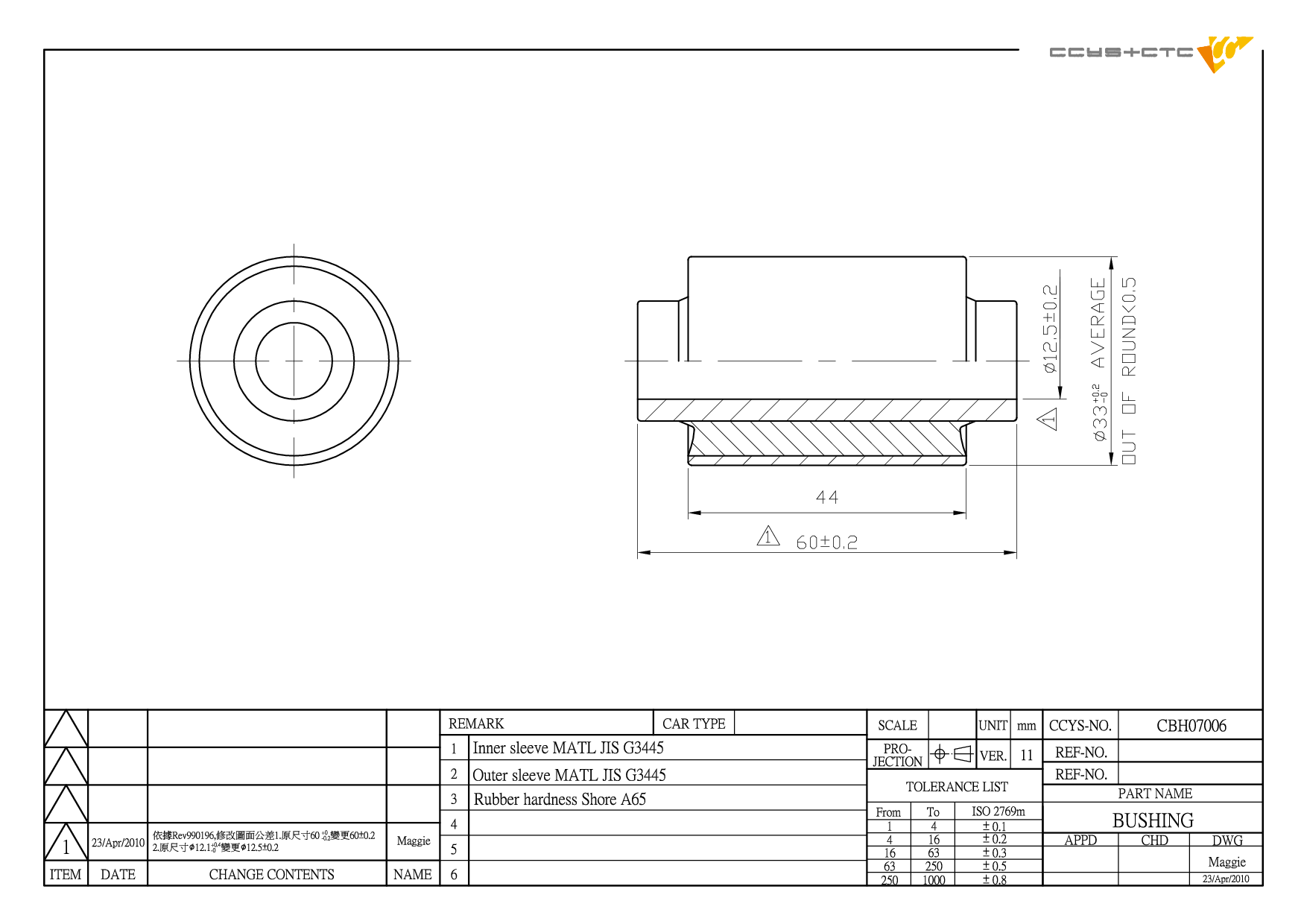

CBH07006
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM INNER |
| OE No. | 45500-50800 |
| Length | 33 mm |
| Width | 33 mm |
| Height | 60 mm |
| Net Weight | 0.2 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH07003 | FRONT LOWER ARM REAR | 45540-60B01 45540-60B01-000 45540-60B02 45540-60B02-000 45540-60E00 45540-60E00-000 |
|
 |
CBH07004 | FRONT LOWER ARM INNER | 45530-50G00 45530-50G00-000 45530-60B00 45530-70C00 |
|
 |
CBH07006 | FRONT LOWER ARM INNER | 45500-50800 |
|
 |
CS-708L | FRONT LOWER LH | 45202-60G00 45202-60G00-000 45202-63G00 45202-63G00-000 45202-63G01 45202-63G01-000 |
|
 |
CS-708R | FRONT LOWER RH | 45201-60G00 45201-60G00-000 45201-63G00 45201-63G00-000 45201-63G01 45201-63G01-000 |
|
 |
CS-712L | FRONT LOWER LH | 45202-60G00 45202-60G00-000 45202-63G01 45202-63G01-000 |
|
 |
CS-712R | FRONT LOWER RH | 45201-60G00 45201-60G00-000 45201-63G01 45201-63G01-000 |
|
 |
CSL07003 | FRONT (A= 86MM) | 46630-60B00 46630-60B00-000 46630-60B01 46630-60B01-000 46630-60B10 46630-60G00 54618-50A00 |
|
 |
CTE07001 | FRONT AXLE LH/RH (C= M12X1.25) | 1A01-32-280 48520-4A0A0 48810-50G10 48810-50G20 48810-60B00 48810-76G00 48810-82000 91175475 96052290 |
| Model (Year) |
|---|
|
BALENO (EG) | ESTEEM BALENO Estate (EG) | ESTEEM BALENO Hatchback (EG) |
