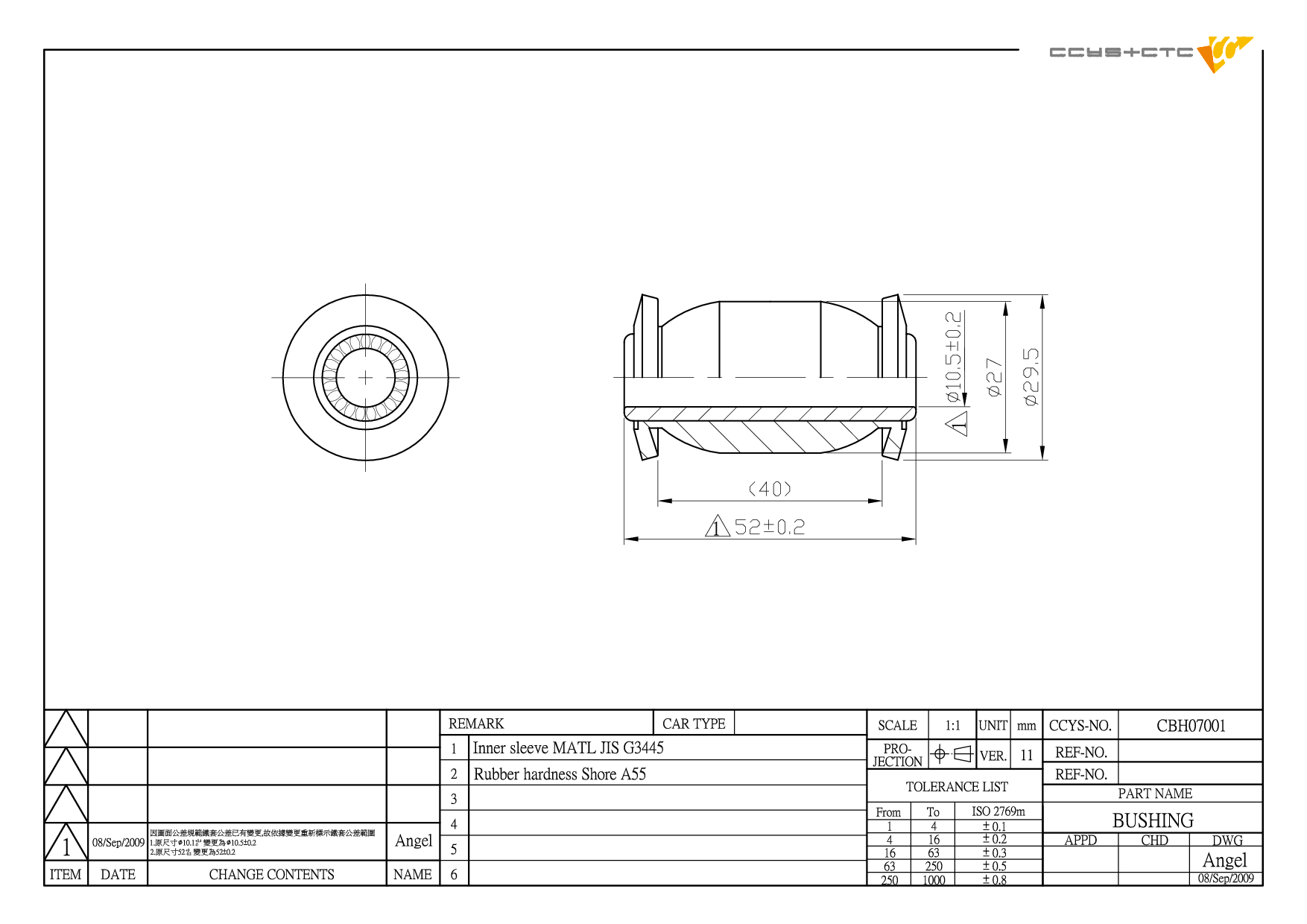

CBH07001
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM INNER |
| OE No. | 009208989 / 009212533 / 09208989 / 09212533 / 09319-10030 / 09319-10030-000 / 09319M10002 / 09319M10030 / 09319M10030000 / 09319M10030-000 / 45261-77A00 / 45261-77A00-000 / 45261-77A10 / 45261-77A10-000 / 45261-84E00 / 4526184E00000 / 45261A-78B00 / 47 03 866 / 47 06 664 / 9208989 / 9212533 / 963 |
| Length | 29.5 mm |
| Width | 29.5 mm |
| Height | 52 mm |
| Net Weight | 0.06 kg |
SUZUKI (MH) (RM413) (RM413D) (RM415) (MM) (RB310) (VIN) TSM.210001,OPEL AGILA (A) (H00) (F68)
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH07001 | FRONT LOWER ARM INNER | 009208989 009212533 09208989 09212533 09319-10030 09319-10030-000 09319M10002 09319M10030 09319M10030000 09319M10030-000 45261-77A00 45261-77A00-000 45261-77A10 45261-77A10-000 45261-84E00 4526184E00000 45261A-78B00 47 03 866 47 06 664 9208989 9212533 963 |
|
 |
CBH28007 | FRONT LOWER ARM OUTER | 963805860 |
|
 |
CS-2803 | FRONT LOWER LH/ RH | 96611265 |
|
 |
CS-701 | FRONT LOWER LH/ RH | 1AY0-34-300 1YA1-34-300 45200-50500 45200-50E00 45200-69D00 45200-69DV0 45200-69DV1 45200-76G10 45200-76G20 45200-76G21 45200-78000 45200-78002 45200-84000 45200-84001 45200-M50E00 45200-M50E20 45200-M50E30 45200-M50E40 45200-M50E41 45200-M79F00 45200-M79 |
|
 |
CTE03009 | FRONT AXLE LH/ RH (C= M12X1.25) | 009204751 009210168 009210351 09204751 09210168 09210351 47 01 744 47 05 655 47 05 716 47 09 195 485204A00B 48810-60810 48810-60J00 48810-63J00 48810-83E00 48810-83E00-000 48810-83E01 48810-83E01-000 48810-83E02 48810-83E02-000 48810-84M00 48810-84M00-000 |
| Model (Year) |
|---|
|
MATIZ (M200, M250) SPARK SPARK (M150) | MATIZ |
| Model (Year) |
|---|
|
MATIZ (M100, M150) MATIZ (M200, M250) MATIZ Hatchback Van (KLA4) TICO (KLY3) |
| Model (Year) |
|---|
|
AGILA A (H00) |
| Model (Year) |
|---|
|
JUSTY III (G3X) |
| Model (Year) |
|---|
|
ALTO I (0S) ALTO II | FRONTE ALTO III (EC) ALTO IV (EF, SH410_) ALTO V (HA12_, HA23_, HA22_) ALTO VI (FF, HA24_) CARRY Bus (0S) CARRY Platform/Chassis CARRY Platform/Chassis (0S) CARRY Platform/Chassis (FD, DA5_T, DA6_T) | EVERY | SUPER CARRY CARRY Van CARRY Van (0S) CARRY Van (FD) IGNIS I (FH) IGNIS II (MH) LIANA (ER, RH_) | AERIO | BALENO LIANA Hatchback | AERIO SUPER CARRY Bus (ED) SUPER CARRY Van (ED) SWIFT I (AA) | SA 310 WAGON R (MH21, MH22) | KARIMUN ESTILO WAGON R+ (MA) | WAGON R SOLIO WAGON R+ Hatchback (EM) | WAGON R WIDE |
| Model (Year) |
|---|
|
AGILA Mk I (A) (H00) |
