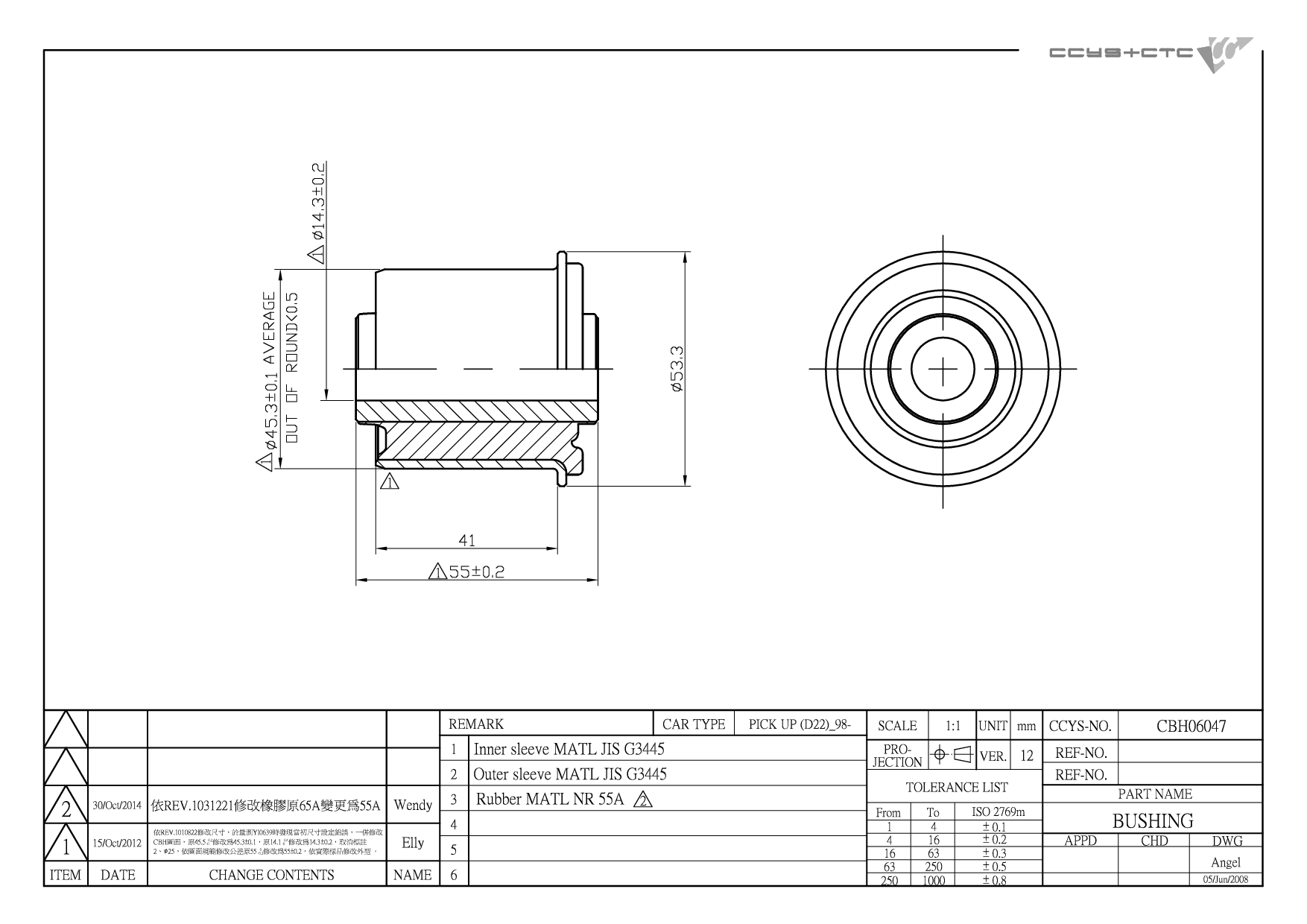

CBH06047
| Designation | Rubber Bushing |
| Position | FRONT UPPER ARM INNER |
| OE No. | 54542-2S610 / 54542-8B400 |
| Length | 45.3 mm |
| Width | 45.3 mm |
| Height | 55 mm |
| Net Weight | 0.28 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH06047 | FRONT UPPER ARM INNER | 54542-2S610 54542-8B400 |
|
 |
CBJ06007 | FRONT LOWER LH/ RH | 40110-EA00A 40160-01G00 40160-01G25 40160-01G26 40160-01G50 40160-01G90 40160-01N25 40160-27N25 40160-2S485 40160-3S550 40160-55G90 40160-92G90 40161-01G26 54502-01N10 54502-01N25 54502-01N25 SK 54502-2S485 54503-01N01 54503-01N10 54503-01N25 54503-01N25 |
|
 |
CBJ06020 | FRONT UPPER LH/ RH | 40110-2S485 40110-2S486 40110-2S685 40110-2S686 40110-3S600 40110-8B425 40110-8B525 40110-8B550 40110-9Z050 40110-VJ200 |
|
 |
CS-639L | FRONT UPPER LH | 54525-1Z600 54525-2S400 54525-2S485 54525-2S486 54525-8B425 54525-8B450 54525-9Z050 54525-VK085 E4525-2S486 E4525-VK085 |
|
 |
CS-639R | FRONT UPPER RH | 54524-1Z600 54524-2S400 54524-2S485 54524-2S486 54524-8B425 54524-8B450 54524-9Z050 54524-VK085 E4524-2S486 E4524-VK085 |
| Model (Year) |
|---|
|
NAVARA (D22) | FRONTIER | BIG M / FRONTIER | SKYSTAR | DATSUN NAVARA Platform/Chassis (D22) | BIG M / FRONTIER NP300 PICKUP (D22) PICK UP (D21) | DATSUN PICK UP (D22) | DATSUN |
