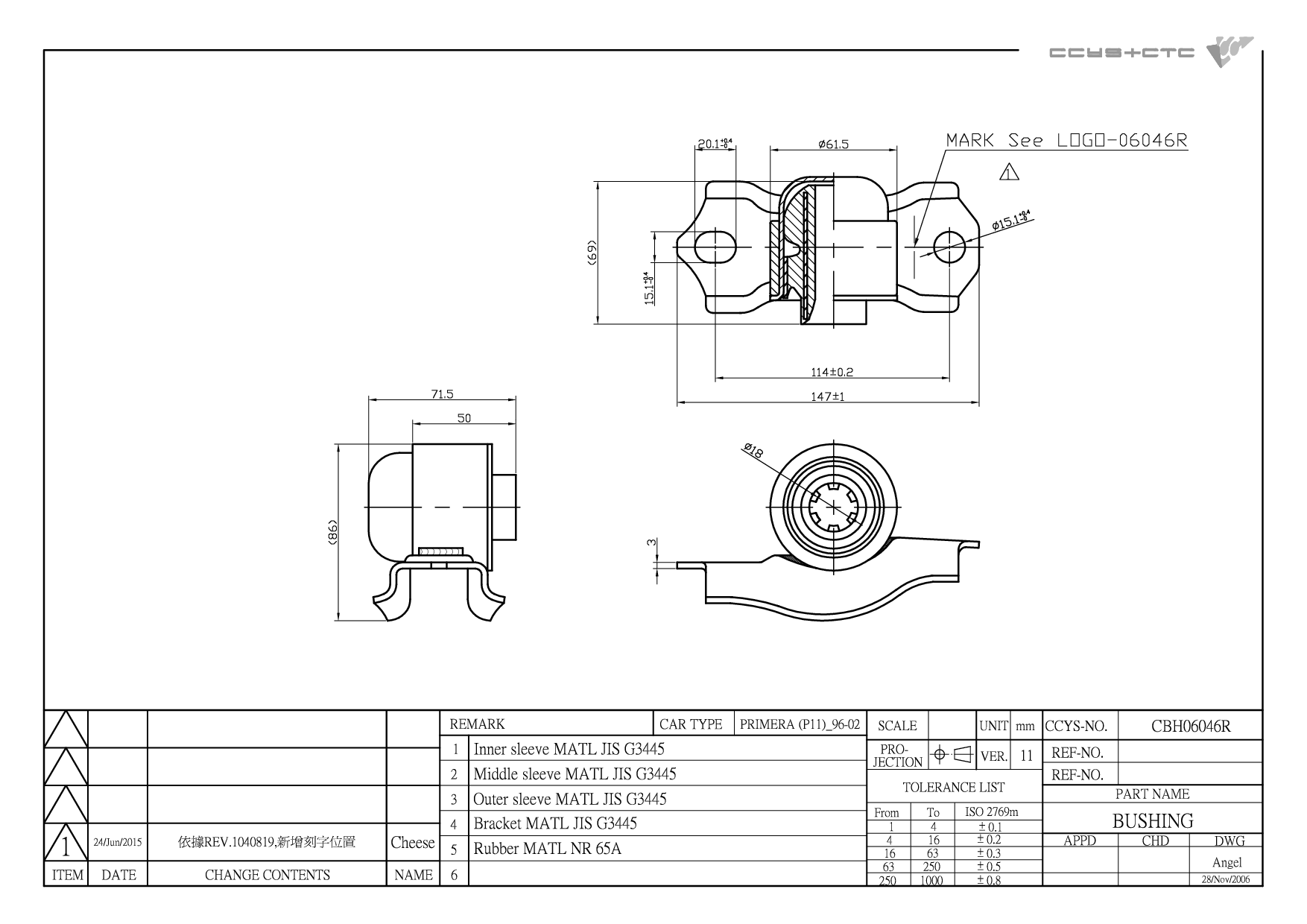

CBH06046R
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM RH REAR |
| OE No. | 54500-2F500 / 54500-9F500 |
| Length | 147 mm |
| Width | 71.5 mm |
| Height | 86 mm |
| Net Weight | 0.8 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH06017 | FRONT LOWER ARM INNER | 54590-01E00 54590-85E00 |
|
 |
CBH06025 | FRONT LOWER ARM REAR | ||
 |
CBH06046L | FRONT LOWER ARM LH REAR | 54501-2F500 54501-9F500 |
|
 |
CBH06046R | FRONT LOWER ARM RH REAR | 54500-2F500 54500-9F500 |
|
 |
CBJ06005 | FRONT LOWER LH/ RH | 1N11-34-300 1N11-34-350 40160-4M400 40160-4M410 40160-4M411 40160-4M700 40160-4Z011 40160-50A00 40160-50J25 40160-60Y60 40160-69C00 40160-6M000 40160-70J00 40160-86M00 40160-F4600 40160-J7500 54500-WA600 54501-WA600 |
|
 |
CBJ06016 | FRONT LOWER LH/ RH | 54500-90J10 |
|
 |
CS-626L | FRONT LOWER LH | 54501-2F500 54501-9F500 |
|
 |
CS-626R | FRONT LOWER RH | 54500-2F500 54500-9F500 |
|
 |
CS-630L | FRONT UPPER LH | 54525-2F000 54525-2F010 54525-2J001 54525-3F010 54525-3J201 54525-50J00 54525-65J00 54525-86J01 54525-86J02 54525-86J10 54525-90J00 54525-90J10 54525-90J20 54525-90J21 |
|
 |
CS-630R | FRONT UPPER RH | 54524-2F000 54524-2F010 54524-2J001 54524-3F010 54524-3J201 54524-50J00 54524-65J00 54524-86J01 54524-86J02 54524-86J10 54524-90J00 54524-90J10 54524-90J20 54524-90J21 |
|
 |
CSL06053 | FRONT (A= 168MM) | 54618-2F010 |
| Model (Year) |
|---|
|
PRIMERA (P11) |
