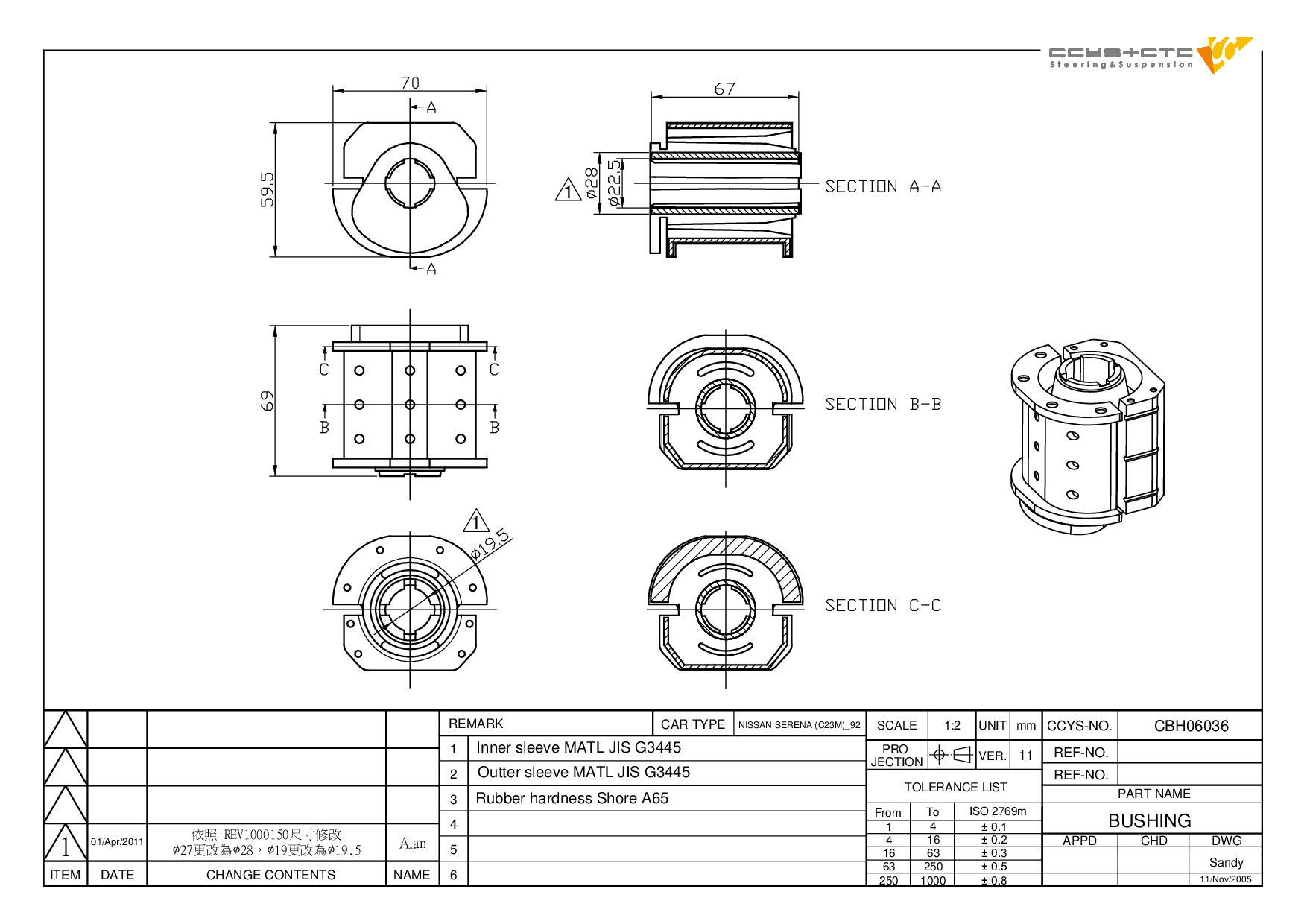

CBH06036
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM REAR |
| OE No. | 54500-7C350 / 54500-9C550 / 54501-7C350 / 54501-9C550 |
| Length | 67 mm |
| Width | 70 mm |
| Height | 59.5 mm |
| Net Weight | 0.4 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH06036 | FRONT LOWER ARM REAR | 54500-7C350 54500-9C550 54501-7C350 54501-9C550 |
|
 |
CBH06037 | FRONT LOWER ARM INNER | 54500-7C350 54500-9C550 54501-7C350 54501-9C550 |
|
 |
CBJ06018LA | FRONT LOWER LH | 40161-9C500 |
|
 |
CBJ06018RA | FRONT LOWER RH | 40160-9C500 |
|
 |
CRE06063 | FRONT AXLE LH/ RH | 48521-2Y025 48521-2Y085 48521-2Y405 48521-5Y025 48521-5Y085 48521-5Y425 48521-5Y485 |
|
 |
CS-636L | FRONT LOWER LH | 54501-7C350 54501-9C550 |
|
 |
CS-636R | FRONT LOWER RH | 54500-7C350 54500-9C550 |
|
 |
CSL06052L | FRONT LH (A= 113MM) | 54618-9C000 54668-1C100 54668-1C101 54668-9C000 |
|
 |
CSL06052R | FRONT RH (A= 113MM) | 54618-1C000 54618-1C100 54618-1C101 54618-9C002 |
| Model (Year) |
|---|
|
SERENA (C23) | LARGO | VANETTE SERENA |
