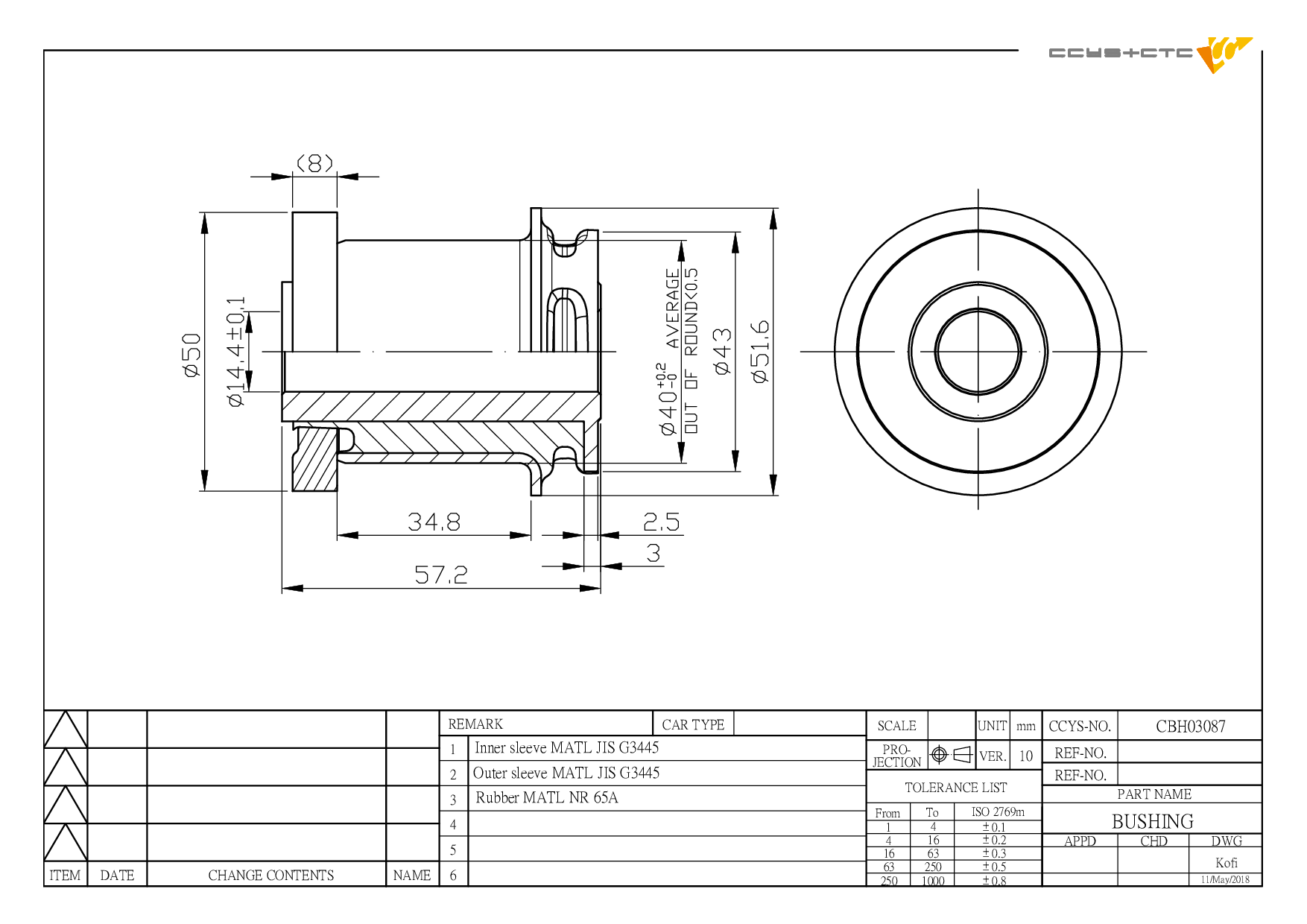

CBH03087
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM INNER |
| OE No. | |
| Length | 50 mm |
| Width | 50 mm |
| Height | 60 mm |
| Net Weight | 0.29 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03051 | FRONT UPPER ARM INNER | GEA1-34-200 GEA1-34-250 GJ6A-34-200A GJ6A-34-200B GJ6A-34-250A GJ6A-34-250B GP9A-34-200 GP9A-34-200A GP9A-34-200B GP9A-34-200C GP9A-34-250 GP9A-34-250A GP9A-34-250B GP9A-34-250C GS1D-34-200A GS1D-34-200B GS1D-34-200C GS1D-34-250A GS1D-34-250B GS1D-34-250C |
|
 |
CBH03086L | FRONT LOWER ARM LH | ||
 |
CBH03086R | FRONT LOWER ARM RH | ||
 |
CBH03087 | FRONT LOWER ARM INNER | ||
 |
CBH03088 | FRONT LOWER ARM OUTER | ||
 |
CBH03099 | REAR LOWER ARM INNER | GS1D-28-300B GS1D-28-300C GS1D-28-350B GS1D-28-350C GSY1-28-300 GSY1-28-350 |
|
 |
CBJ03019 | FRONT UPPER LH/RH | G39A-34-200 G39A-34-250 GEA1-34-200 GEA1-34-250 GG3P-34-200 GG3P-34-200A GG3P-34-200B GG3P-34-250A GG3P-34-250B GJ6A-34-200A GJ6A-34-200B GJ6A-34-250A GJ6A-34-250B GK2A-34-200A GK2A-34-200B GK2A-34-200C GK2A-34-250A GK2A-34-250B GK2A-34-250C GP9A-34-200 G |
|
 |
CS-367L | FRONT LOWER LH | GS1D-34-350G GS1D-34-350H GS1D-34-350J GS1D-34-350K GS1D-34-350L GS1D-34-710B |
|
 |
CS-367R | FRONT LOWER RH | GS1D-34-300G GS1D-34-300H GS1D-34-300J GS1D-34-300K GS1D-34-300L GS1D-34-470A |
|
 |
CS-368L | REAR LOWER LH | GS1D-28-350B GS1D-28-350C GSY1-28-350 |
|
 |
CS-368R | REAR LOWER RH | GS1D-28-300B GS1D-28-300C GSY1-28-300 |
|
 |
CS-385L | FRONT UPPER LH | GS1D-34-250 GS1D-34-250A GS1D-34-250B GS1D-35-250C |
|
 |
CS-385R | FRONT UPPER RH | GS1D-34-200 GS1D-34-200A GS1D-34-200B GS1D-34-200C |
|
 |
CSL03034L | FRONT LH (A= 155MM) | GJ6A-34-170A GK2A-34-170 GS1D-34-170 |
|
 |
CSL03034R | FRONT RH (A= 155MM) | GJ6A-34-150A GK2A-34-150A GS1D-34-150 |
|
 |
CSL03072 | REAR AXLE LH/ RH | GS1D-28-170 |
| Model (Year) |
|---|
|
6 Saloon (GH) | 6 ULTRA | ATENZA |
