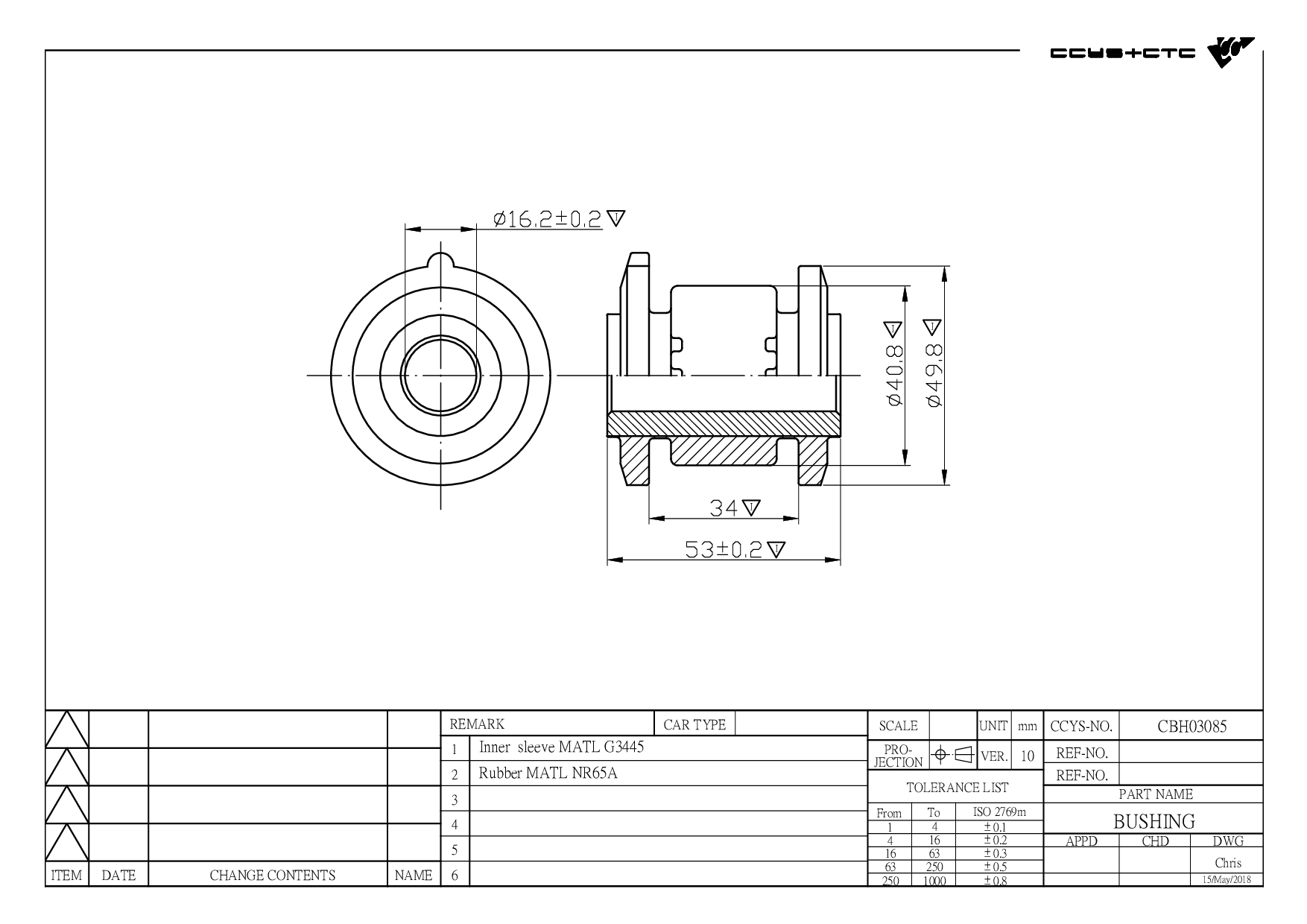

CBH03085
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM INNER |
| OE No. | B45A-34-350 / B45A-34-350D / B45A-34-350E / B45G-34-350E / B60P-34-350 / B60P-34-350B / B60P-34-350C / B60P-34-350D / B60P-34-350E / B60P-34-350F / B60P-34-350G / B60S-34-350 / B60S-34-350B / B60S-34-350D / B60S-34-350E / B60S-34-350F / B60S-34-350G / BPN7-34-350A / BPN7-34-350B / BPN7-34-350 |
| Length | 50 mm |
| Width | 50 mm |
| Height | 53 mm |
| Net Weight | 0.3 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03084L | FRONT LOWER ARM LH REAR | B45A 34 460 B45A-34-350 B45A-34-350D B45A-34-350E B45G-34-350E B60P 34 350 B60P 34 350 G B60P-34-350 B60P-34-350B B60P-34-350C B60P-34-350D B60P-34-350E B60P-34-350F B60P-34-350G B60S 34 350 B60S 34 350 G B60S-34-350 B60S-34-350B B60S-34-350D B60S-34-350E |
|
 |
CBH03084R | FRONT LOWER ARM RH REAR | B45A 34 460 B45A-34-350 B45A-34-350D B45A-34-350E B45G-34-350E B60P 34 300 B60P 34 300 G B60P-34-350 B60P-34-350B B60P-34-350C B60P-34-350D B60P-34-350E B60P-34-350F B60P-34-350G B60S 34 300 B60S 34 300 G B60S-34-350 B60S-34-350B B60S-34-350D B60S-34-350E |
|
 |
CBH03085 | FRONT LOWER ARM INNER | B45A-34-350 B45A-34-350D B45A-34-350E B45G-34-350E B60P-34-350 B60P-34-350B B60P-34-350C B60P-34-350D B60P-34-350E B60P-34-350F B60P-34-350G B60S-34-350 B60S-34-350B B60S-34-350D B60S-34-350E B60S-34-350F B60S-34-350G BPN7-34-350A BPN7-34-350B BPN7-34-350 |
|
 |
CBH03089 | FRONT LOWER ARM REAR | B45A 34 460 B60P 34 300 B60P 34 300 G B60P 34 350 B60P 34 350 G B60S 34 300 B60S 34 300 G B60S 34 350 B60S 34 350 G KD35 34 300 D KD35 34 300 E KD35 34 300 F KD35 34 300 G KD35 34 300 H KD35 34 350 D KD35 34 350 E KD35 34 350 F KD35 34 350 G KD35 34 350 H |
|
 |
CRE02133 | FRONT AXLE LH/ RH | 45503-09100 45503-0B020 45503-29395 45503-29665 45503-49015 45503-49035 |
|
 |
CRE02152 | FRONT AXLE LH/ RH | 45503-29665 45503-39165 |
|
 |
CRE03061 | FRONT AXLE LH/ RH | KD31-32-240 KD31-32-240A |
|
 |
CS-372L | FRONT LOWER LH | KA0G-34-350B KA0G-34-350F KA0G-34-350G KA1G-34-350 KA1G-34-350B KA1G-34-350F KA1G-34-350G KD35-34-350D KD35-34-350F KD35-34-350G KD35-34-350H KD35-34-350J KD35-34-350P KD53-34-350A KD53-34-350B KD53-34-350C KD53-34-350D KD53-34-350E |
|
 |
CS-372R | FRONT LOWER RH | KA0G-34-300B KA0G-34-300F KA0G-34-300G KA1G-34-300 KA1G-34-300B KA1G-34-300F KA1G-34-300G KD35-34-300D KD35-34-300F KD35-34-300G KD35-34-300H KD35-34-300J KD35-34-300P KD53-34-300A KD53-34-300B KD53-34-300D KD53-34-300E KD53-34-300F |
|
 |
CS-396L | FRONT LOWER LH | D10E-34-350 D10E-34-350A D10E-34-350B D24H-34-350 D24H-34-350A D24H-34-350B |
|
|
CS-396R | FRONT LOWER RH | D10E-34-300 D10E-34-300A D10E-34-300B D24H-34-300 D24H-34-300A D24H-34-300B |
|
 |
CSL03076 | FRONT AXLE LH/ RH | K750507 KD35-34-170 MR589437 |
| Model (Year) |
|---|
|
3 (BM, BN) | AXELA 3 Hatchback Van (BM) 3 Saloon (BM_, BN_) | AXELA 6 Saloon (GJ, GL) | ATENZA CX-5 CX-5 (KE, GH) CX-5 (KF) |
