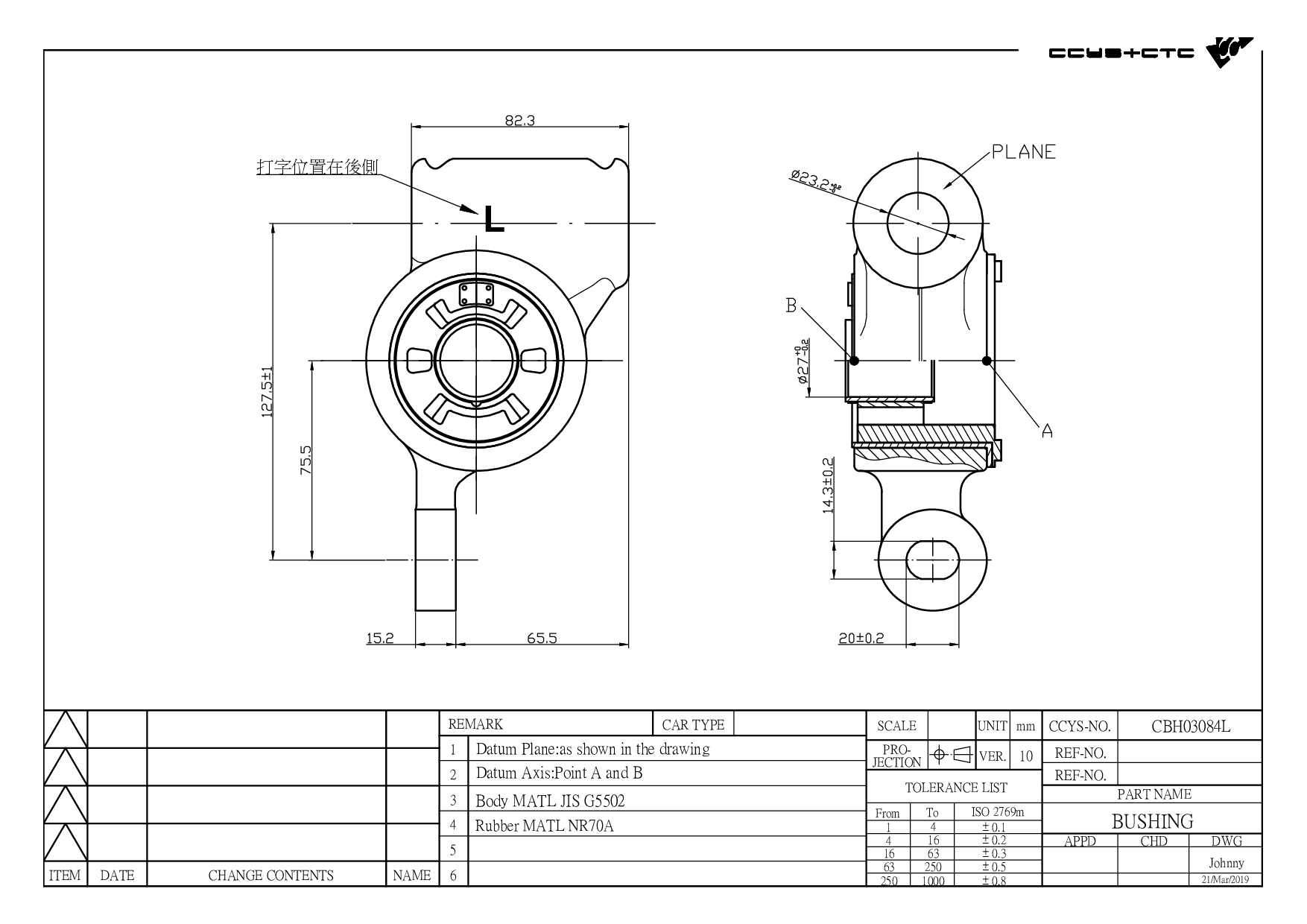

CBH03084L
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM LH REAR |
| OE No. | |
| Length | 178.32 mm |
| Width | 100.7 mm |
| Height | 56.9 mm |
| Net Weight | 1.45 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03084L | FRONT LOWER ARM LH REAR | ||
 |
CBH03084R | FRONT LOWER ARM RH REAR | ||
 |
CBH03085 | FRONT LOWER ARM INNER | ||
 |
CBH03089 | FRONT LOWER ARM REAR | ||
 |
CS-372L | FRONT LOWER LH | KD35-34-350D KD35-34-350F KD35-34-350G KD35-34-350H KD35-34-350P KD53-34-350A KD53-34-350D KD53-34-350E |
|
 |
CS-372R | FRONT LOWER RH | KD35-34-300D KD35-34-300F KD35-34-300G KD35-34-300H KD35-34-300P KD53-34-300A KD53-34-300D KD53-34-300E |
| Model (Year) |
|---|
|
CX-5 (KE, GH) |
