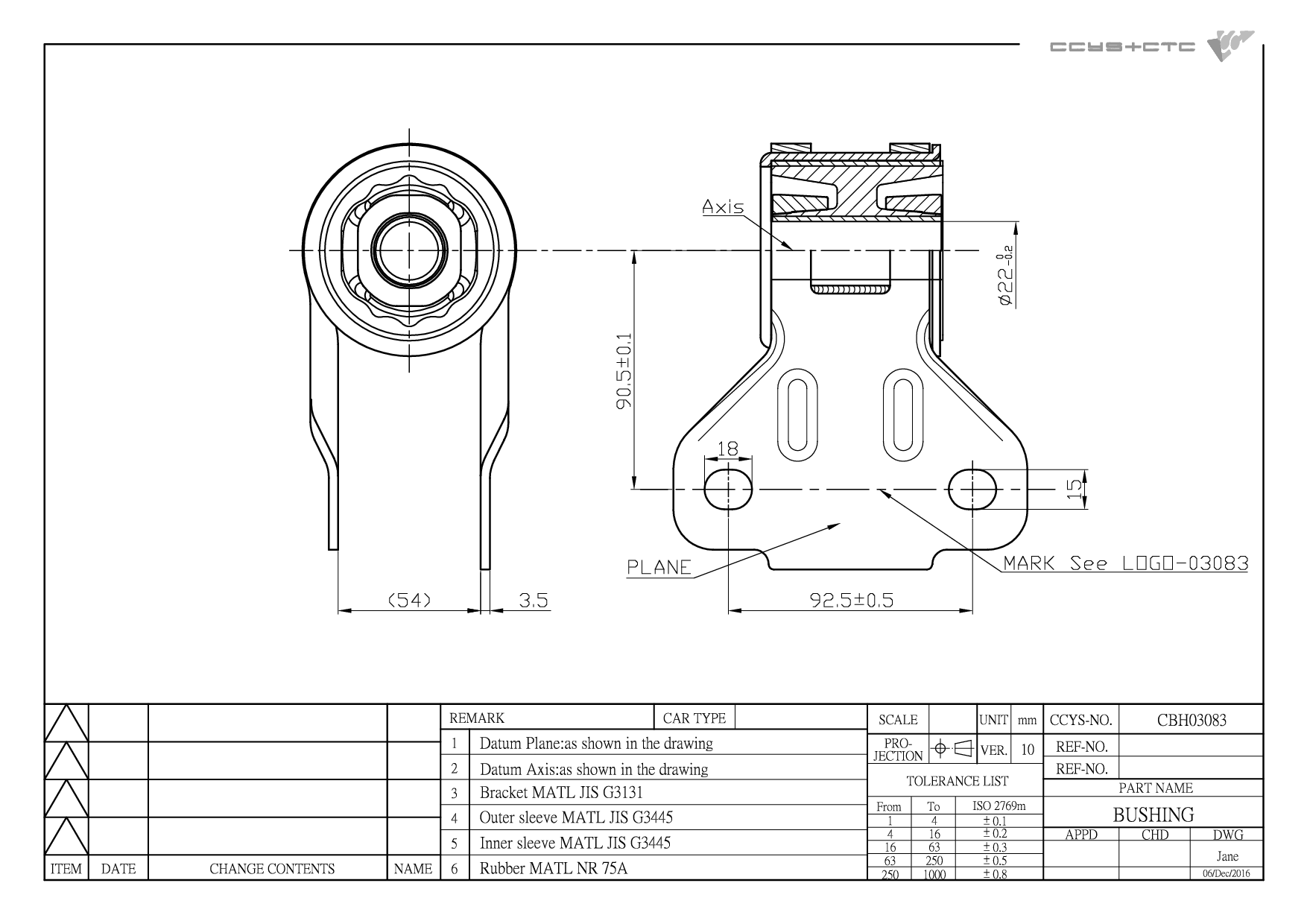

CBH03083
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM REAR |
| OE No. | 1 781 658 / 1 781 660 / 1793236 / 1793237 / 1809551 / B39D-34-300 / B39D-34-350 / BBM2-34-300 / BBM2-34-300A / BBM2-34-350 / BBM2-34-350A / CV61 3A423 AAC / CV61 3A424 AAC / CV61-3A262-AAA / CV61-3A423-AAB / CV61-3A424-AAB |
| Length | 134 mm |
| Width | 161.3 mm |
| Height | 79.76 mm |
| Net Weight | 1.5 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03083 | FRONT LOWER ARM REAR | 1 781 658 1 781 660 1793236 1793237 1809551 B39D-34-300 B39D-34-350 BBM2-34-300 BBM2-34-300A BBM2-34-350 BBM2-34-350A CV61 3A423 AAC CV61 3A424 AAC CV61-3A262-AAA CV61-3A423-AAB CV61-3A424-AAB |
|
 |
CBJ03023L | FRONT LOWER LH | 1 781 660 1793237 CV61 3A424 AAC CV61-6A424-AAB |
|
 |
CBJ03023R | FRONT LOWER RH | 1 781 658 1793236 CV61 3A423 AAC CV61-3A423-AAB |
|
 |
CS-371L | FRONT LOWER LH | 1 781 660 1793237 CV61 3A424 AAC CV61-3A424-AAB |
|
 |
CS-371R | FRONT LOWER RH | 1 781 658 1793236 CV61 3A423 AAC CV61-3A423-AAB |
|
 |
CSL03038 | FRONT (A= 306MM) | 1223792 1230909 1686594 1762149 1851900 31277652 31340273 3M513B438AA 3M513B438AB 8623576 AV61-3B438-AA AV61-3B438-BA B37F-34-170A BP4K-34-170 BP4K-34-170A BP4K-34-170B BP4K-34-170C BP4K-34-170D |
|
 |
CSL03048 | REAR (A= 179MM) | 1377349 1377398 1377416 1425853 1502681 1783320 30736875 30736947 30736948 30760678 31429561 31451817 31476579 6G915C486XAA 6G915C486XAB 8V41-5C486-AA 8V4Z-5C486-A CV615C486AAB CV6Z-5C486-B |
| Model (Year) |
|---|
|
KUGA II (DM2) | ESCAPE KUGA II VAN |
| Model (Year) |
|---|
|
3 (BL) | AXELA 3 Saloon (BL) | AXELA |
