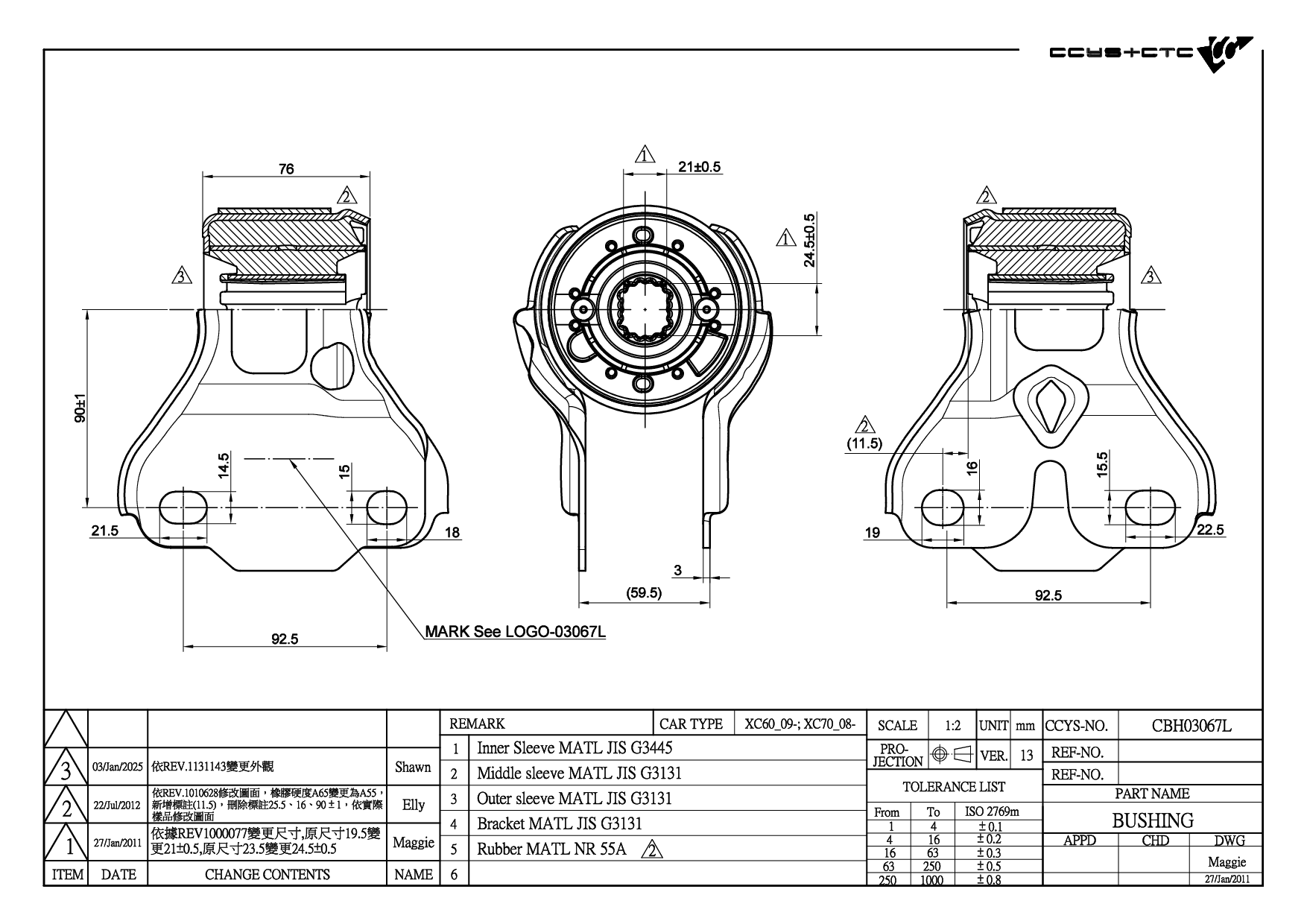

CBH03067L
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM LH REAR |
| OE No. | 1888630 / 31262475 / 31340128 / 31387571 / 31429321 / 7G9J3A262AB |
| Length | 165 mm |
| Width | 150 mm |
| Height | 118 mm |
| Net Weight | 1.96 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03067L | FRONT LOWER ARM LH REAR | 1888630 31262475 31340128 31387571 31429321 7G9J3A262AB |
|
 |
CBH03067R | FRONT LOWER ARM RH REAR | 1883048 31262473 31340127 31387572 31429320 7G9J3A262BB |
|
 |
CBH03071 | REAR ARM | 6G91-5K743-VA 6G91-5K743-XA |
|
 |
CBH17004 | FRONT AXLE | 9173618 9443882 9465971 |
|
 |
CBH17006 | REAR AXLE UPPER | 30748890 8667020 8672220 9173761 |
|
 |
CBH17009 | REAR AXLE INNER | 30645401 31277952 9157579 |
|
 |
CBH17017 | REAR AXLE INNER | 9492181 |
|
 |
CBH17030 | FRONT LOWER ARM INNER | 1507181 1507182 31200775 31200776 31262473 31262475 31277345 31277346 31277525 31277526 31317663 31317664 31317665 31317666 31340127 31340128 31429320 31429321 7G9N 3A052 BB 7G9N 3A053 BB LR007205 LR007206 |
|
 |
CRE17026 | D= M18X1.5 , C= M16X1.5 | 30776255 30776425 31406474 |
|
 |
CRE17028 | D= M18X1.5 , C= M16X1.5 | 1433271 1596574 30776250 31280002 31280658 31451035 6G913280AA 6G913280AB LR016869 |
|
 |
CS-1726L | FRONT LOWER LH | 31262475 31340128 31429321 |
|
 |
CS-1726R | FRONT LOWER RH | 31262473 31340127 31429320 |
|
 |
CS-353L | FRONT LOWER LH | 1377848 1385594 1403410 1419815 1426876 1435747 1460693 1466188 1469026 1507182 30671636 31200448 31200563 31212782 31277343 31317661 6G9N-3A053-DA 6G9N-3A053-DB 6G9N-3A053-DC 6G9N-3A053-DD 6G9N-3A053-DE 6G9N-3A053-DF 6G9N-3A053-DG 6G9N-3A053-DH 7G9N 3A05 |
|
 |
CS-353R | FRONT LOWER RH | 1377846 1385593 1403408 1419814 1426875 1435745 1458773 1466186 1469024 1507181 30671637 31200449 31200564 31212781 31277344 31317662 6G9N-3A052-DA 6G9N-3A052-DB 6G9N-3A052-DC 6G9N-3A052-DD 6G9N-3A052-DE 6G9N-3A052-DF 6G9N-3A052-DG 6G9N-3A052-DH 7G9N 3A05 |
|
 |
CS-356 | REAR LOWER LH/ RH | 1377449 1381443 1381843 1387628 1426770 1426770 S1 30666558 30666559 30676099 30676100 30736864 30736864 S1 30760069 31262127 31262127 S1 31262128 31262439 31262930 31262930 S1 31262931 31340354 6G91-5K743-VA 6G91-5K743-XA 6G91-5K743-XAA 6G91-5K743-XAB 6G |
|
 |
CSL03048 | REAR (A= 179MM) | 1377349 1377398 1377416 1425853 1502681 1783320 30736875 30736947 30736948 30760678 31429561 31451817 31476579 6G915C486XAA 6G915C486XAB 8V41-5C486-AA 8V4Z-5C486-A CV615C486AAB CV6Z-5C486-B |
|
 |
CSL17006 | FRONT (A= 244.5MM) | 272991 6819253 9492837 |
|
 |
CSL17019 | FRONT (A= 300MM) | 1377849 1433294 30648461 31658608 6G9N-3B438-BA |
|
 |
CTE17015L | FRONT AXLE LH | 1433274 30776249 31280000 31302344 6G91-3290-AA LR002610 |
|
|
CTE17015R | FRONT AXLE RH | 1433273 30776248 31280001 31302345 6G91-3289-AA LR002609 |
| Model (Year) |
|---|
|
GALAXY III (CK) MONDEO IV (BA7) MONDEO IV Saloon (BA7) MONDEO IV Turnier (BA7) |
| Model (Year) |
|---|
|
FREELANDER 2 (L359) | LR2 FREELANDER 2 VAN (L359) |
| Model (Year) |
|---|
|
S60 II (134) S60 II Cross Country (134) S80 II (124) V60 I (155) V60 I Cross Country (157) V60 I Estate Van (155) V70 III (135) V70 III Estate Van (135) XC60 I SUV (156) XC70 I Cross Country (295) | V70 XC |
