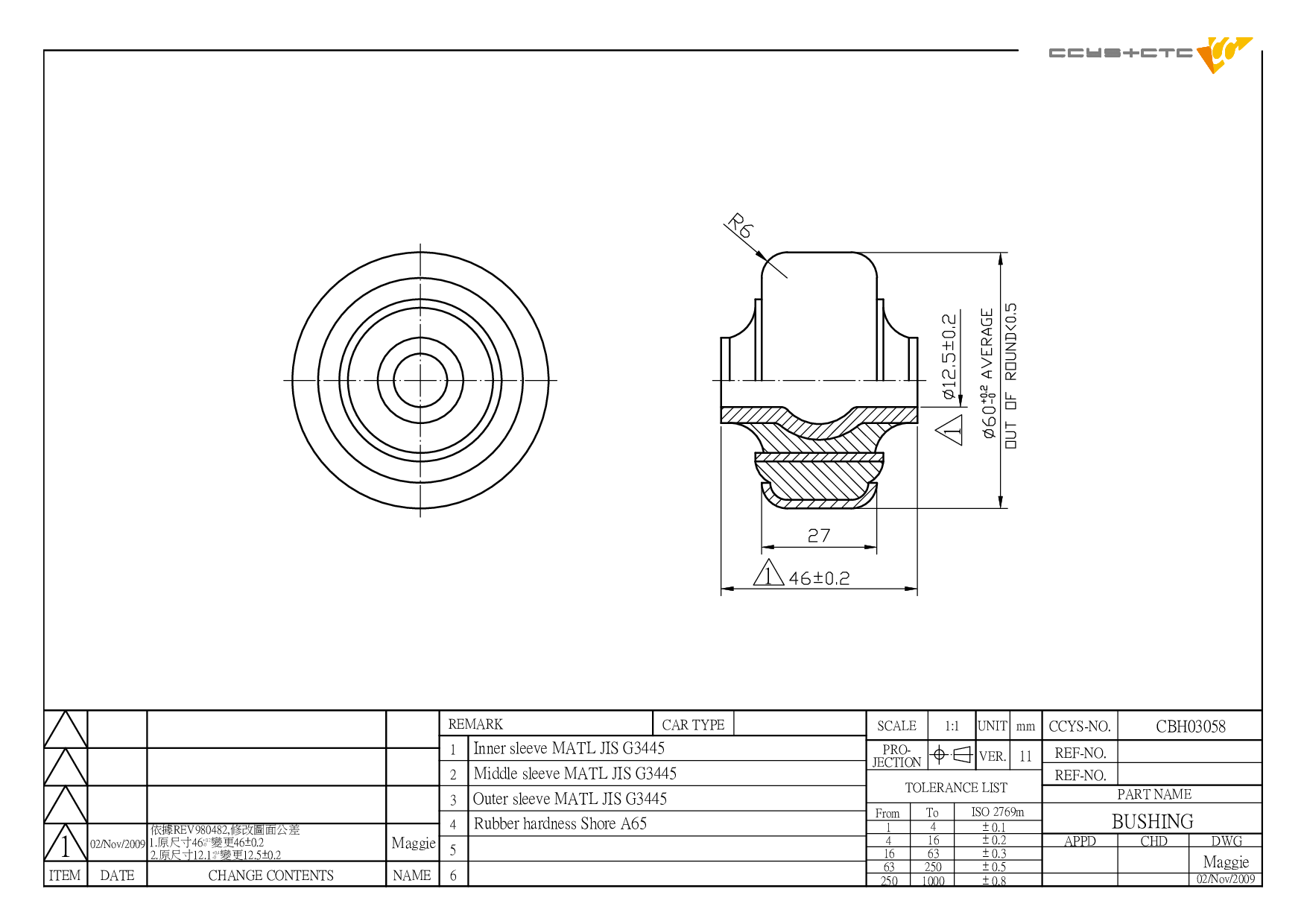

CBH03058
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM REAR |
| OE No. | |
| Length | 60 mm |
| Width | 60 mm |
| Height | 46 mm |
| Net Weight | 0.19 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03018 | FRONT LOWER ARM INNER | 1023058 |
|
 |
CBH03019 | FRONT LOWER ARM REAR | 6790115 |
|
 |
CBH03020 | REAR LINK INNER/ OUTER | 6784590 6829045 93BB-5K653-AB |
|
 |
CBH03058 | FRONT LOWER ARM REAR | ||
 |
CBH03059 | FRONT LOWER ARM INNER | ||
 |
CBJ03002 | FRONT LOWER LH/ RH | 1023026 1023028 1030277 1043158 1043159 1141296 1679390 1M2JA20164ABYBD5 6790117 6870550 6870551 93BB-3042-BA 93BB-3042-BB 93BB-3042-BC 93BB-3051-BC 93BB3395AC 95BG-3042-AA 95BG-3051-AA 97BG-3042-CA 97BG-3051-AA 97BG-3051-CA 99BB-3395-AC ME93BB3395AA |
|
 |
CS-316 | REAR AXLE LINK LH/ RH | 6867577 93BB-5K652-AC |
|
 |
CSL03055 | REAR (A= 97.5MM) | 1072435 1072446 1072447 97BG-5495-AC 97BG-5776-AC 97BG-5C491-AC |
|
 |
CSL03057 | FRONT (A= 237MM ALUM.) | 1106269 |
|
 |
CSL03062 | REAR | 1072435 1072446 1072447 97BG-5495-AC 97BG-5776-AC 97BG-5C491-AC |
|
 |
CSL11003 | FRONT (A= 240MM) | 6710541 6960036 93BB-3B-438CA |
|
 |
CSL11004 | REAR (A= 102MM) | 6701505 6783835 6931610 7014210 93BB-5K-566AC |
|
 |
CSL11005 | REAR (A= 102MM) | 1022358 1039511 1054209 7230373 7365613 93BB-5K-566AF 93BB-5K-566AG 93BB-5K-566AH |
| Model (Year) |
|---|
|
MONDEO II (BAP) |
