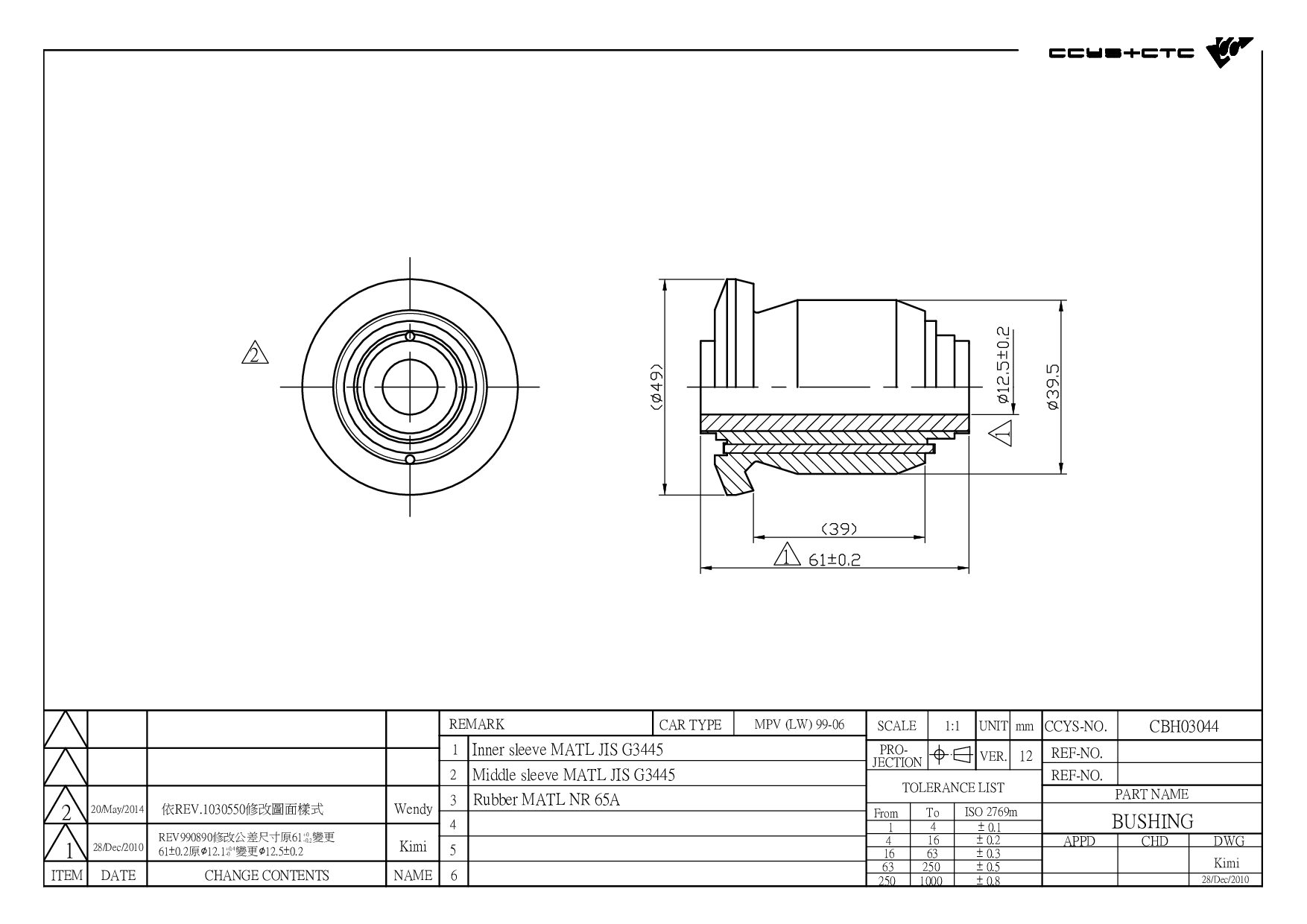

CBH03044
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM INNER |
| OE No. | LC62-34-470 |
| Length | 49 mm |
| Width | 49 mm |
| Height | 61 mm |
| Net Weight | 0.2 kg |
MAZDA MPV II (LW) 2.0 DI, 2.3 (LW3W) , 3.0i V6 (LWFW) Construction Year to 10.2005
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03043 | FRONT LOWER ARM REAR | LC62-34-460A LC62-34-460B |
|
 |
CBH03044 | FRONT LOWER ARM INNER | LC62-34-470 |
|
 |
CBJ03001 | FRONT LOWER LH/ RH | 0G030-34-550A 0G030-34-550B 3703149 54500-HA00B 54501-HA00B B25D-34-550 C5Y0-34-350 E112-99-300C G030-99-356 GA6A-99-356 GA6B-99-300E GA6B-99-350E GA6B-99-356A H001 99 356 LC62-34-550 LC62-99-300C M001-99-356A ZZC1-34-320 |
|
 |
CS-338L | FRONT LOWER LH | K620340 LC62-34-350 LC62-34-350B LC62-34-350C |
|
 |
CS-338R | FRONT LOWER RH | K620339 LC62-34-300 LC62-34-300B LC62-34-300C |
|
 |
CSL03047 | FRONT (A= 63MM) | LC70-34-170 |
|
 |
CTE03005 | FRONT AXLE LH/ RH (C= M14X1.5) | 3405915 8AG232280 8AG3-32-280 8AG4-32-280 8AG432280A F32Z3A130A G211-33-020 G304-33-020A GA2A-32-280 GA2A-32-280A GJ21-33-020 GJ21-33-020A GJ21-33-030 GJ21-33-030A GJ26-33-020 GJ26-33-030 GJ51-33-020B GJ51-33-020C GJ51-33-020D GJ51-33-020E GJ51-33-030B GJ |
| Model (Year) |
|---|
|
MPV I (LV) MPV II (LW) |
