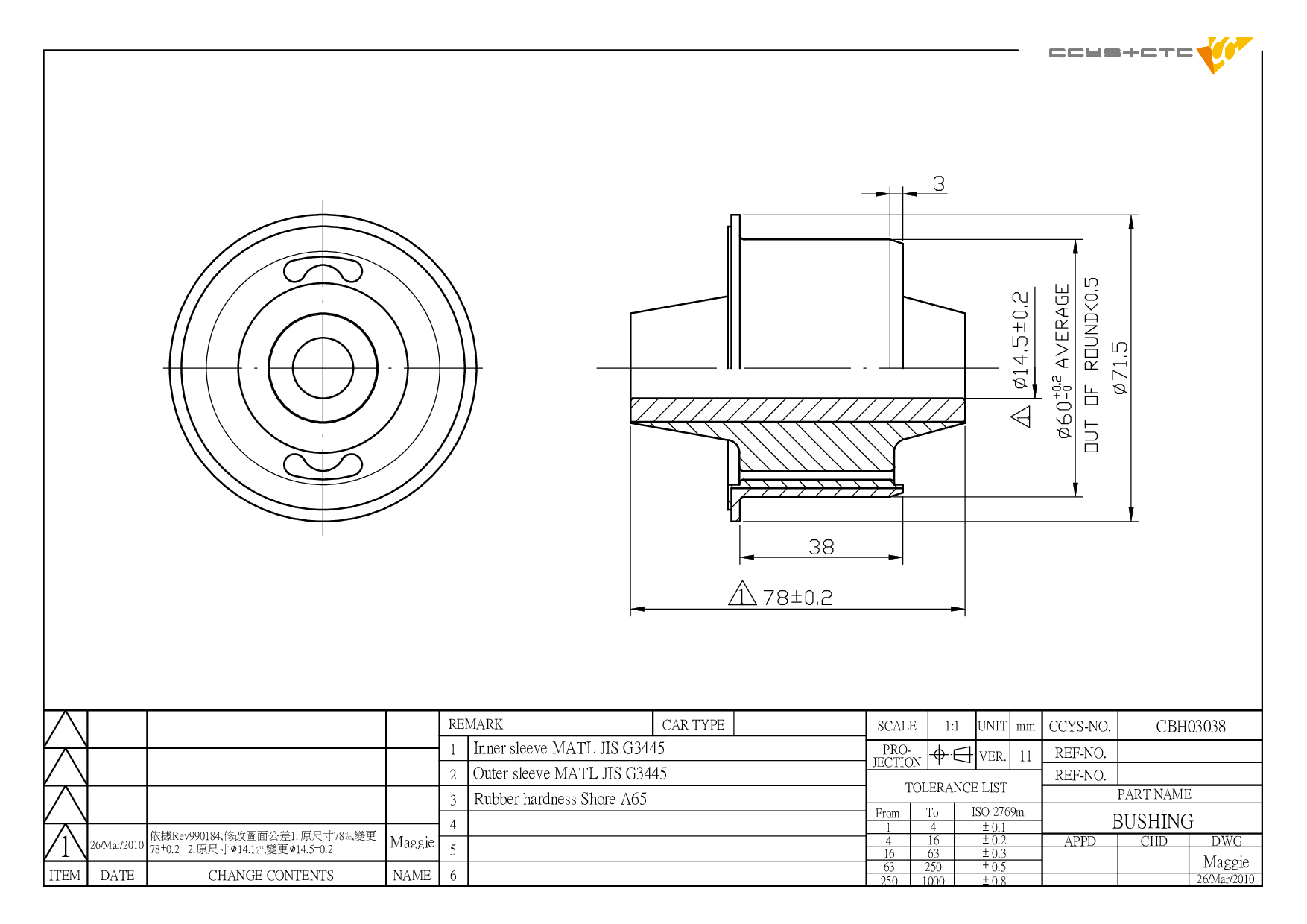

CBH03038
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM REAR |
| OE No. | 4133882 / 4133883 / E112-34-300C / E112-34-350C / EC01-34-300J / EC01-34-300N / EC01-34-350J / EC01-34-350N |
| Length | 71.5 mm |
| Width | 71.5 mm |
| Height | 78 mm |
| Net Weight | 0.46 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03038 | FRONT LOWER ARM REAR | 4133882 4133883 E112-34-300C E112-34-350C EC01-34-300J EC01-34-300N EC01-34-350J EC01-34-350N |
|
 |
CBH03039 | FRONT LOWER ARM INNER | 4133882 4133883 E112-34-300C E112-34-350C EC01-34-300J EC01-34-300N EC01-34-350J EC01-34-350N |
|
 |
CBJ03001 | FRONT LOWER LH/ RH | 0G030-34-550A 0G030-34-550B 3703149 54500-HA00B 54501-HA00B B25D-34-550 C5Y0-34-350 E112-99-300C G030-99-356 GA6A-99-356 GA6B-99-300E GA6B-99-350E GA6B-99-356A H001 99 356 LC62-34-550 LC62-99-300C M001-99-356A ZZC1-34-320 |
|
 |
CS-333L | FRONT LOWER LH | 2L8Z-3079A-A 3L84-3A424-AC 4133883 4165774 4484604 4484853 4511510 4631878 4633627 4763905 4974677 4L84-3A424-AA 4L84-3A424-AB 6L8Z-3079-AA 8L84-3A424-AA E112-34-350C EC01-34-350E EC01-34-350F EC01-34-350G EC01-34-350H EC01-34-350J EC01-34-350K EC01-34-35 |
|
 |
CS-333R | FRONT LOWER RH | 2L8Z-3078A-A 4133882 4165773 4484852 4511509 4631871 4633628 4763903 4974675 4L84-3A423-AA 4L84-3A423-AB 8L84-3A423-AA E112-34-300C EC01-34-300E EC01-34-300F EC01-34-300G EC01-34-300H EC01-34-300J EC01-34-300K EC01-34-300L EC01-34-300M EC01-34-300N EF91-3 |
|
 |
CSL03044 | FRONT (A= 286MM ALUM.) | 5L8Z-5K-483AA 7L8Z-5K-483A ZZC034150 ZZC034150A |
|
 |
CSL03045 | FRONT (A= 250MM) | 48820-WB002 D651-34-170 D651-34-170A DA6A-34-170 YL8Z-5K-483AA |
| Model (Year) |
|---|
|
MAVERICK | ESCAPE |
| Model (Year) |
|---|
|
ESCAPE |
| Model (Year) |
|---|
|
TRIBUTE (EP) |
| Model (Year) |
|---|
|
MARINER |
