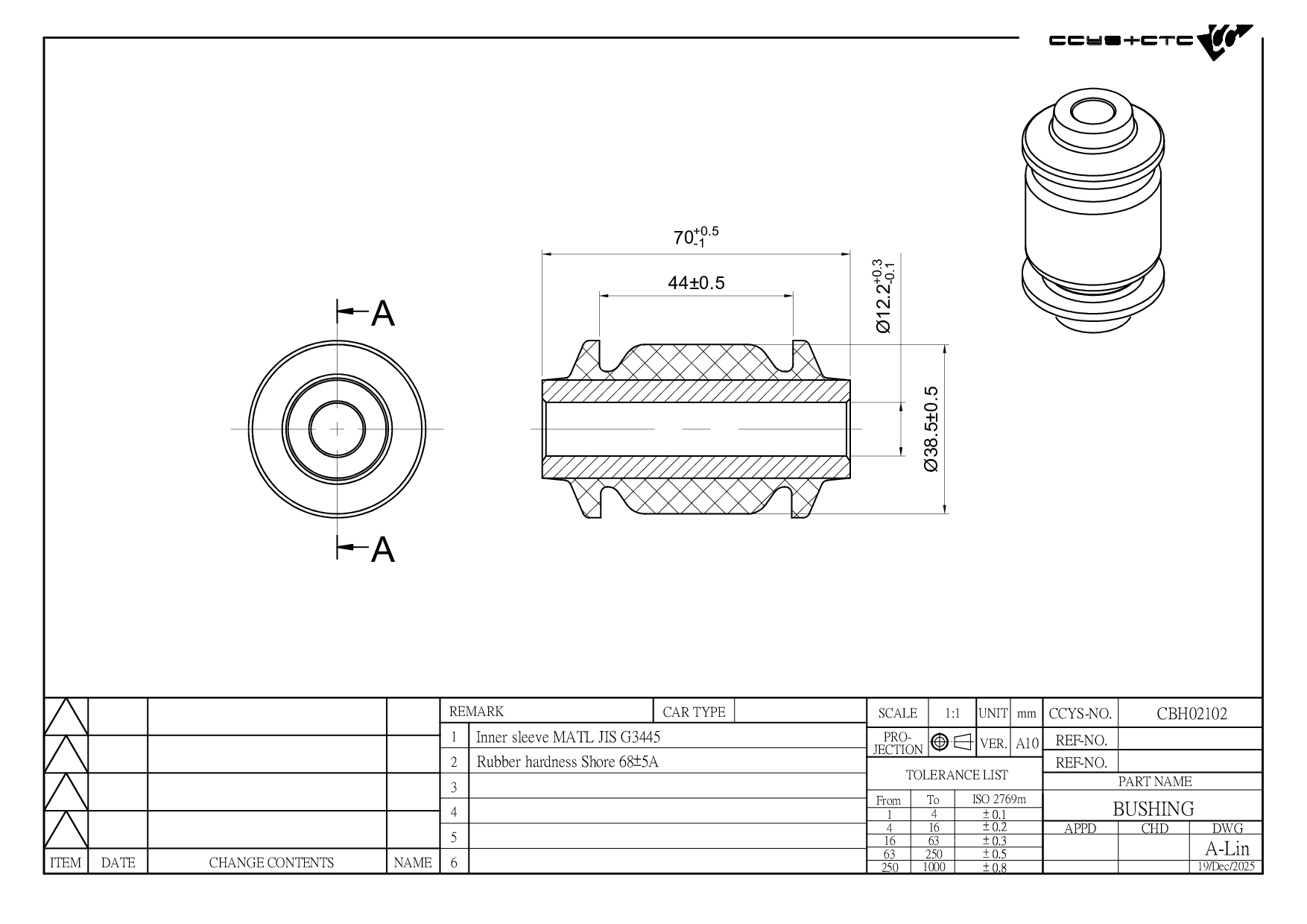

CBH02102
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM INNER |
| OE No. | 48068-BZ160 / 48068-BZ170 / 48068-BZ180 / 48069-BZ160 / 48069-BZ170 / 48069-BZ180 |
| Length | 39 mm |
| Width | 39 mm |
| Height | 70 mm |
| Net Weight | 0 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02102 | FRONT LOWER ARM INNER | 48068-BZ160 48068-BZ170 48068-BZ180 48069-BZ160 48069-BZ170 48069-BZ180 |
|
|
CBJ02025 | FRONT LOWER LH/ RH | 48068-BZ160 48068-BZ170 48068-BZ200 48068-BZ390 48069-BZ160 48069-BZ170 48069-BZ200 48069-BZ390 |
|
|
CRE02083 | FRONT AXLE LH/ RH | 45510-BZ120 45510-BZ130 45510-BZ160 |
|
 |
CS-285L | FRONT LOWER LH | 48069-BZ160 48069-BZ170 48069-BZ180 |
|
 |
CS-285R | FRONT LOWER RH | 48068-BZ160 48068-BZ170 48068-BZ180 |
|
 |
CS-286L | FRONT LOWER LH | 48069-BZ160 48069-BZ190 |
|
 |
CS-286R | FRONT LOWER RH | 48068-BZ160 48068-BZ190 |
|
|
CS-299L | FRONT LOWER LH | 48069-BZ200 |
|
|
CS-299R | FRONT LOWER RH | 48068-BZ200 |
|
 |
CSL02084 | FRONT AXLE LH/ RH | 48820-B0010 |
|
|
CSL04005 | FRONT AXLE LH/ RH | 48820-B0010 |
| Model (Year) |
|---|
|
AVANZA II (F65_) |
