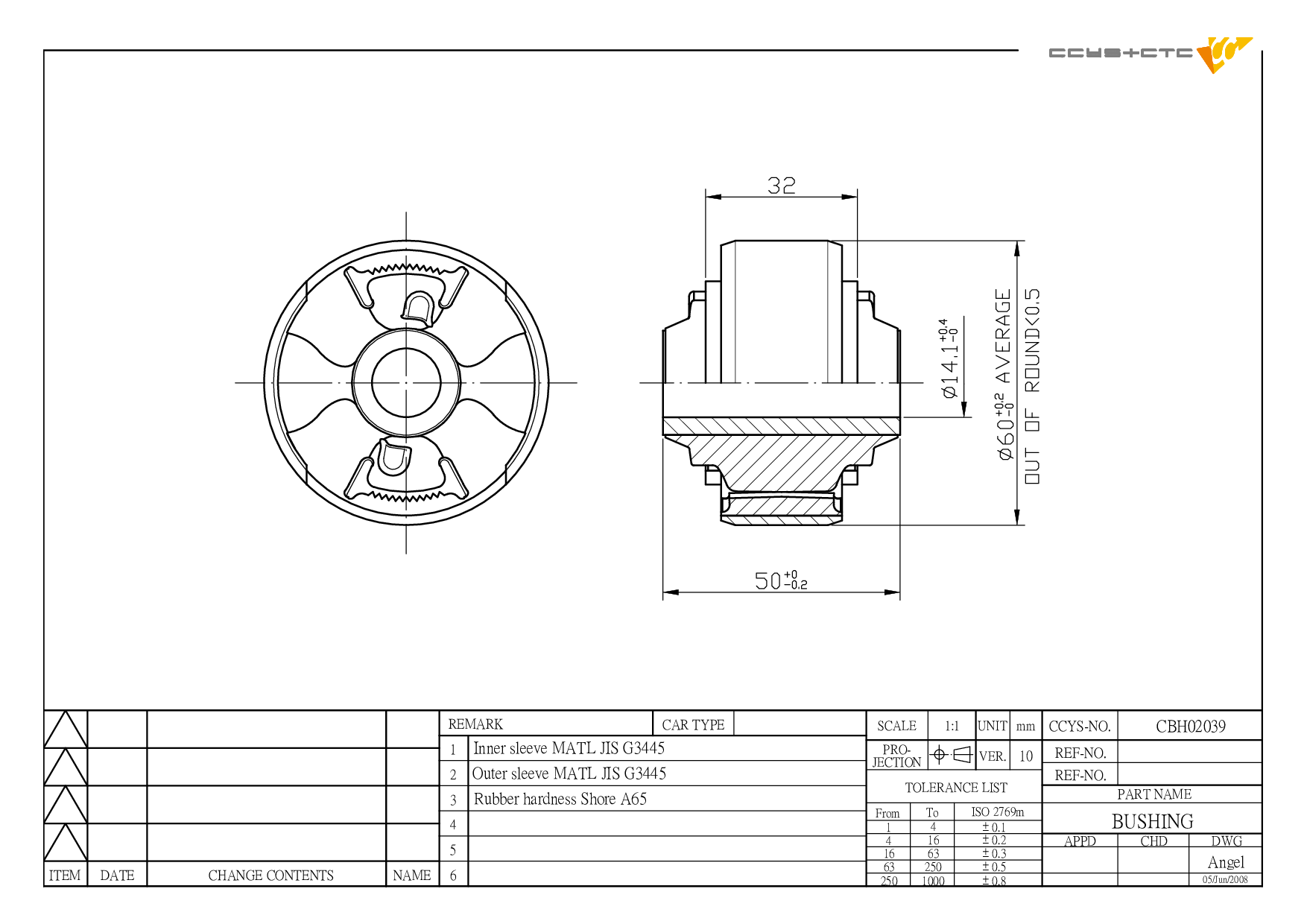

CBH02039
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM REAR |
| OE No. | 48655-07010 / 48655-33010 / 48655-48010 |
| Length | 50 mm |
| Width | 60 mm |
| Height | 60 mm |
| Net Weight | 0.22 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02025 | FRONT LOWER ARM INNER | 48654-33030 |
|
 |
CBH02039 | FRONT LOWER ARM REAR | 48655-07010 48655-33010 48655-48010 |
|
 |
CS-249L | FRONT LOWER LH | 48069-48010 |
|
 |
CS-249R | FRONT LOWER RH | 48068-48010 |
|
 |

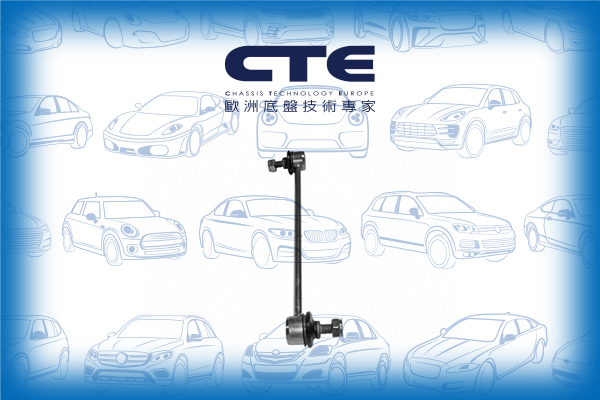

CSL02003 | REAR (A= 250MM) | 48830-32040 |
|
 |
CSL02008L | FRONT LH (A= 286MM) | 48810-06030 48810-33010 |
|
 |
CSL02008R | FRONT RH (A= 286MM) | 48820-06030 48820-33020 |
| Model (Year) |
|---|
|
ES (VCV10_, VZV21_) RX (MCU15) |
| Model (Year) |
|---|
|
CAMRY (_V2_) CAMRY Estate (_V1_) | SCEPTER HARRIER (_U1_) |
