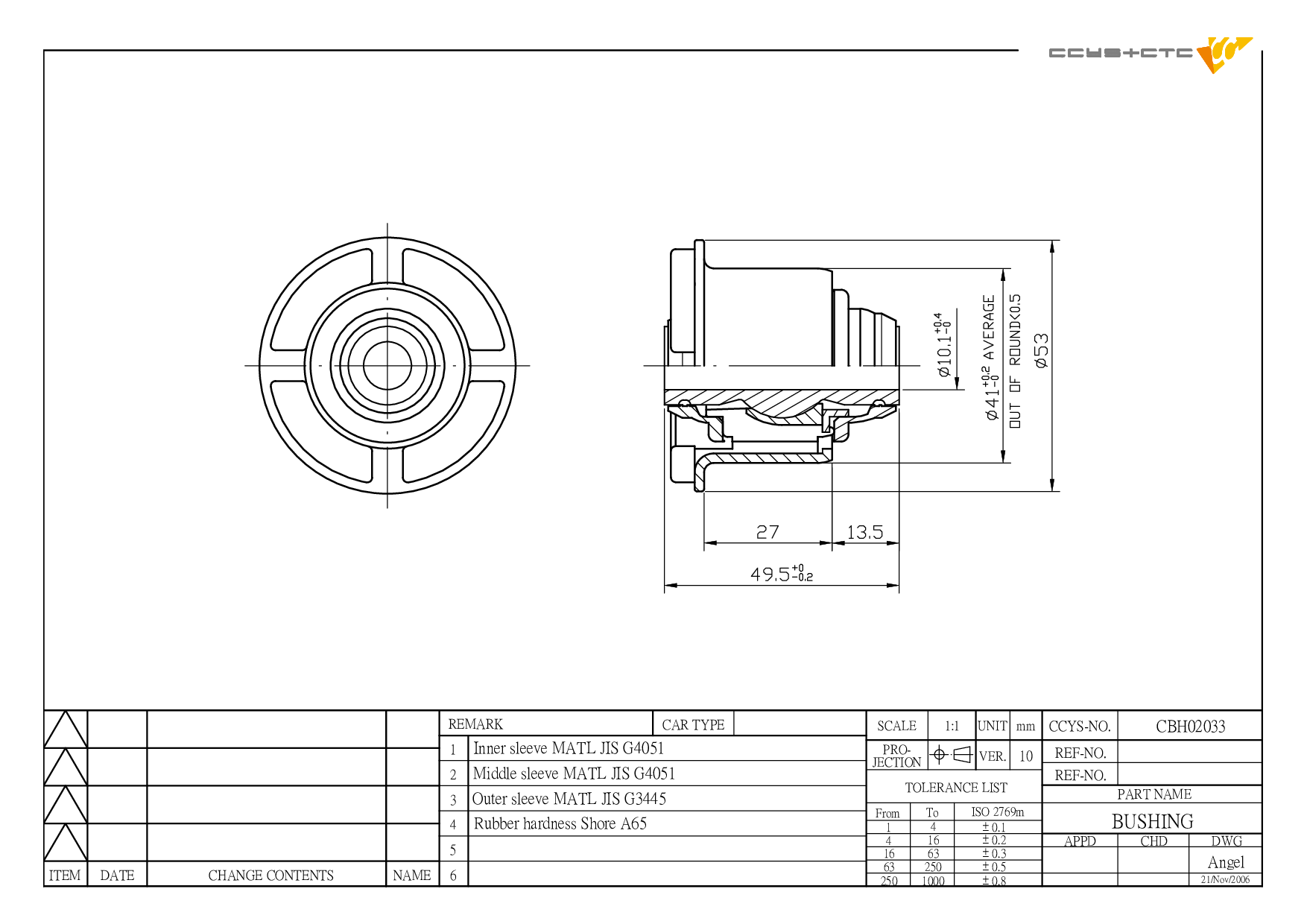

CBH02033
| Designation | Rubber Bushing |
| Position | FRONT UPPER ARM INNER |
| OE No. | 48610-39015 / 48630-39015 |
| Length | 49.5 mm |
| Width | 53 mm |
| Height | 53 mm |
| Net Weight | 0.23 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02033 | FRONT UPPER ARM INNER | 48610-39015 48630-39015 |
|
 |
CBH02037 | FRONT LOWER ARM INNER | 48068-30290 48068-30300 48069-30290 48069-30300 |
|
 |
CS-241L | FRONT UPPER LH | 48630-39015 48630-39055 |
|
 |
CS-241R | FRONT UPPER RH | 48610-39015 48610-39085 |
|
 |
CS-246L | FRONT LOWER LH | 48069-30290 48069-30300 |
|
 |
CS-246R | FRONT LOWER RH | 48068-30290 48068-30300 |
|
 |
CSL02001L | FRONT LH (A= 79MM) | 48810-30010 48810-30020 |
|
 |
CSL02001R | FRONT RH (A= 79MM) | 48820-30030 48820-30040 |
| Model (Year) |
|---|
|
GS (JZS147_) GS (_S16_) GS (_S19_) SC Convertible (UZZ40_) | SOARER |
| Model (Year) |
|---|
|
ARISTO (_S14_) |
