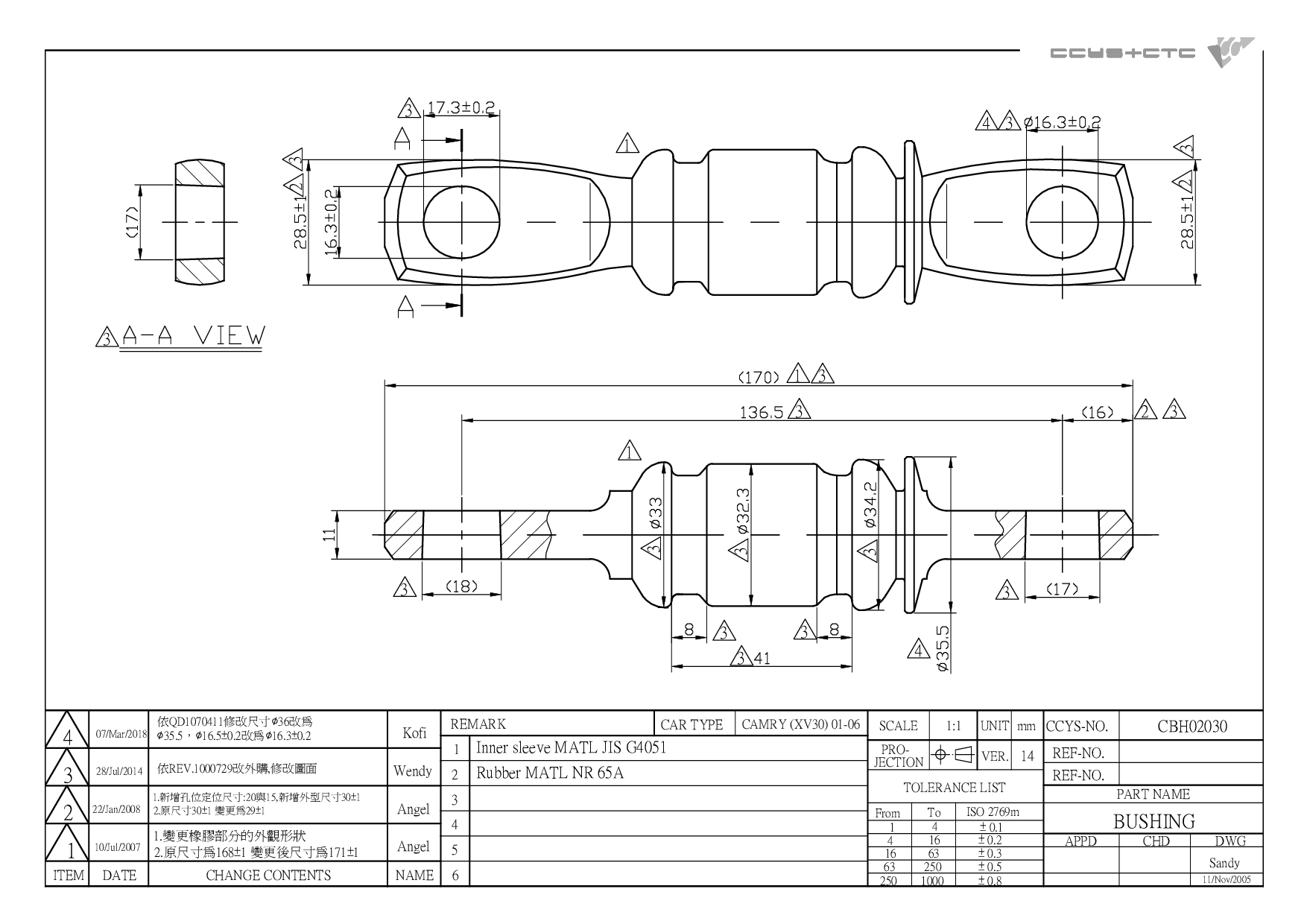

CBH02030
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM INNER |
| OE No. | 48068-06200 / 48068-08021 / 48068-33090 / 48069-06200 / 48069-08021 / 48069-33090 / 48654-28060 / 48654-33050 / 48654-48020 |
| Length | 170 mm |
| Width | 28.5 mm |
| Height | 11 mm |
| Net Weight | 0.41 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02029 | FRONT LOWER ARM REAR | 48655-06040 |
|
 |
CBH02030 | FRONT LOWER ARM INNER | 48068-06200 48068-08021 48068-33090 48069-06200 48069-08021 48069-33090 48654-28060 48654-33050 48654-48020 |
|
 |
CBJ02023L | FRONT LOWER LH | 43340-09010 43340-09020 43340-09080 43340-29175 43340-29215 |
|
|
CBJ02023R | FRONT LOWER RH | 43330-09160 43330-09560 43330-29405 43330-29615 |
|
 |
CS-240L | FRONT LOWER LH | 48069-06070 48069-06080 48069-06100 48069-06140 48069-06150 48069-06160 48069-06170 48069-06180 48069-06190 48069-07040 48069-07050 48069-0E010 48069-28120 48069-33050 48069-33060 48069-33070 48069-33080 48069-48020 48069-58010 |
|
 |
CS-240R | FRONT LOWER RH | 48068-06070 48068-06080 48068-06100 48068-06140 48068-06150 48068-06160 48068-06170 48068-06180 48068-06190 48068-07040 48068-07050 48068-0E010 48068-28120 48068-33050 48068-33060 48068-33070 48068-33080 48068-48020 48068-58010 |
| Model (Year) |
|---|
|
ES (MCV_, VZV_) ES (_V4_) ES (_Z10_, _A10_, _H10_) |
| Model (Year) |
|---|
|
ALPHARD I (_H1_) AURION (_V4_) AURION (_V5_) AVALON Saloon (_X5_) CAMRY (_V7_, _VA7_, _VH7_) CAMRY Saloon (_V3_) CAMRY Saloon (_V4_) CAMRY Saloon (_V5_) HARRIER (_U3_) HIGHLANDER / KLUGER (_U2_) LAND CRUISER Pick-up (_J7_, _JL7_) PREVIA II (_R3_) | ESTIMA | PREVIA / ESTIMA SIENNA (_L2_) WINDOM (_V3_) |
