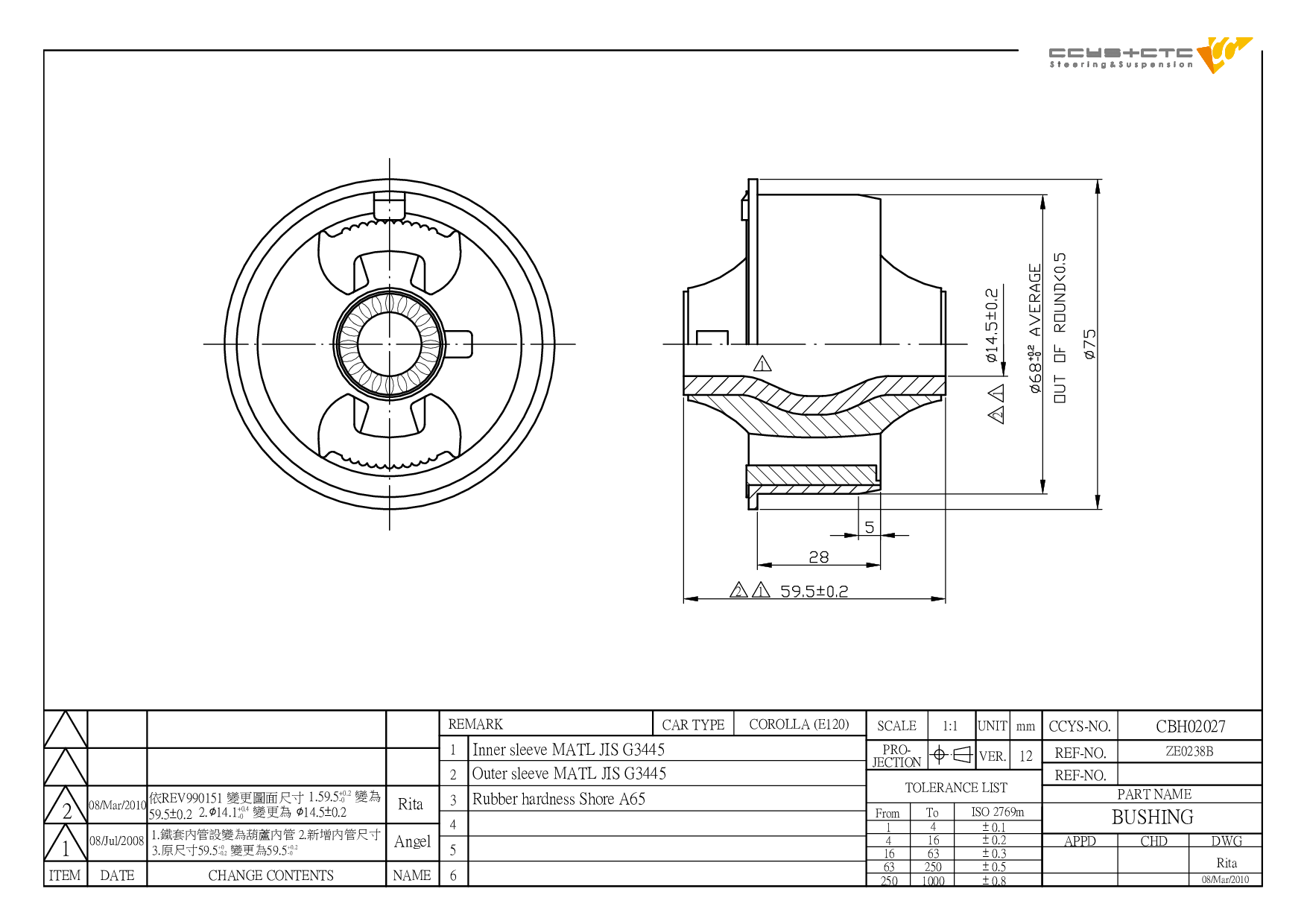

CBH02027
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM REAR |
| OE No. | 48068-02020 / 48068-02021 / 48068-02030 / 48068-02070 / 48068-02080 / 48068-02210 / 48068-12260 / 48068-12290 / 48068-13010 / 48068-47040 / 48069-02020 / 48069-02021 / 48069-02030 / 48069-02070 / 48069-02080 / 48069-02210 / 48069-12260 / 48069-12290 / 48069-13010 / 48069-47040 |
| Length | 59.5 mm |
| Width | 75 mm |
| Height | 75 mm |
| Net Weight | 0.35 kg |
(E12) Construction year to 12.2006
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02027 | FRONT LOWER ARM REAR | 48068-02020 48068-02021 48068-02030 48068-02070 48068-02080 48068-02210 48068-12260 48068-12290 48068-13010 48068-47040 48069-02020 48069-02021 48069-02030 48069-02070 48069-02080 48069-02210 48069-12260 48069-12290 48069-13010 48069-47040 |
|
 |
CBH02028 | FRONT LOWER ARM INNER | 48068-47040 48069-47040 48654-12070 |
|
 |
CBJ02020A | FRONT LOWER LH/RH | 43330-02070 43330-02097 43330-09070 43330-09090 43330-09200 43330-09220 43330-09230 43330-09A50 43330-09B21 43330-19115 43330-19185 |
|
 |
CRE02075 | D= M14X1.5 , C= M14X1.5 | 10259874-00 17.03.1100F3008 45503-02050 45503-02080 45503-09220 45503-12130 45503-12131 45503-19255 45503-19256 45510-12420 45510-12421 BYDF3-3401040 F3-3401040 |
|
 |
CS-238L | FRONT LOWER LH | 48069-02020 48069-02021 48069-02030 48069-02070 48069-02080 48069-02100 48069-02190 48069-02210 48069-12250 48069-12251 48069-12260 48069-12280 48069-12290 48069-13010 48069-20381 |
|
 |
CS-238R | FRONT LOWER RH | 48068-02020 48068-02021 48068-02030 48068-02070 48068-02080 48068-02100 48068-02190 48068-02210 48068-12250 48068-12251 48068-12260 48068-12280 48068-12290 48068-13010 48068-20381 |
|
 |
CSL02056 | FRONT (A= 285MM) | 1064000097 20984481 48820-02030 48820-02040 48820-02050 48820-02100 48820-47010 48820-58010 54618-BA60A 54618-BA60B 54618-CY00A 54618-EN000 54830-0U000 54830-2V000 54830-4L000 54830-A6000 88970146 |
|
 |
CTE02007L | FRONT LH | 45047-02010 45047-02040 45047-09050 45047-09150 45047-09230 45047-19115 45047-49045 |
|
 |
CTE02007R | FRONT RH | 45046-02040 45046-02050 45046-09160 45046-09360 45046-09490 45046-19265 45046-49115 |
| Model (Year) |
|---|
|
COROLLA (_E12_) | COROLLA RUNX | COROLLA / ALLEX COROLLA Combi (_E12_) COROLLA Estate (_E11_) COROLLA Estate (_E12_) COROLLA Estate (_E12_) | COROLLA FIELDER COROLLA Estate (_E14_) | COROLLA FIELDER COROLLA Saloon (_E12_) | COROLLA ALTIS | ALTIS COROLLA Saloon (_E15_) COROLLA Saloon (_E15_) | COROLLA ALTIS | ALTIS COROLLA Saloon (_E15_) | COROLLA AXIO | COROLLA ALTIS | ALTIS COROLLA Verso (_E12_) | COROLLA SPACIO PRIUS Liftback (_W2_) WISH MPV (_E2_) |
| Model (Year) |
|---|
|
COROLLA (_E12_) |
